3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Green-200', 200 ft Length per spool, 1 spool/case - 7010297617

Sold As: 1200-Pack
SKU: 7010297617
MPN: 7010297617
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007566427
3M ID: 80610646020
5 Digit UPC: 56642
$1,304.38 ($1.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

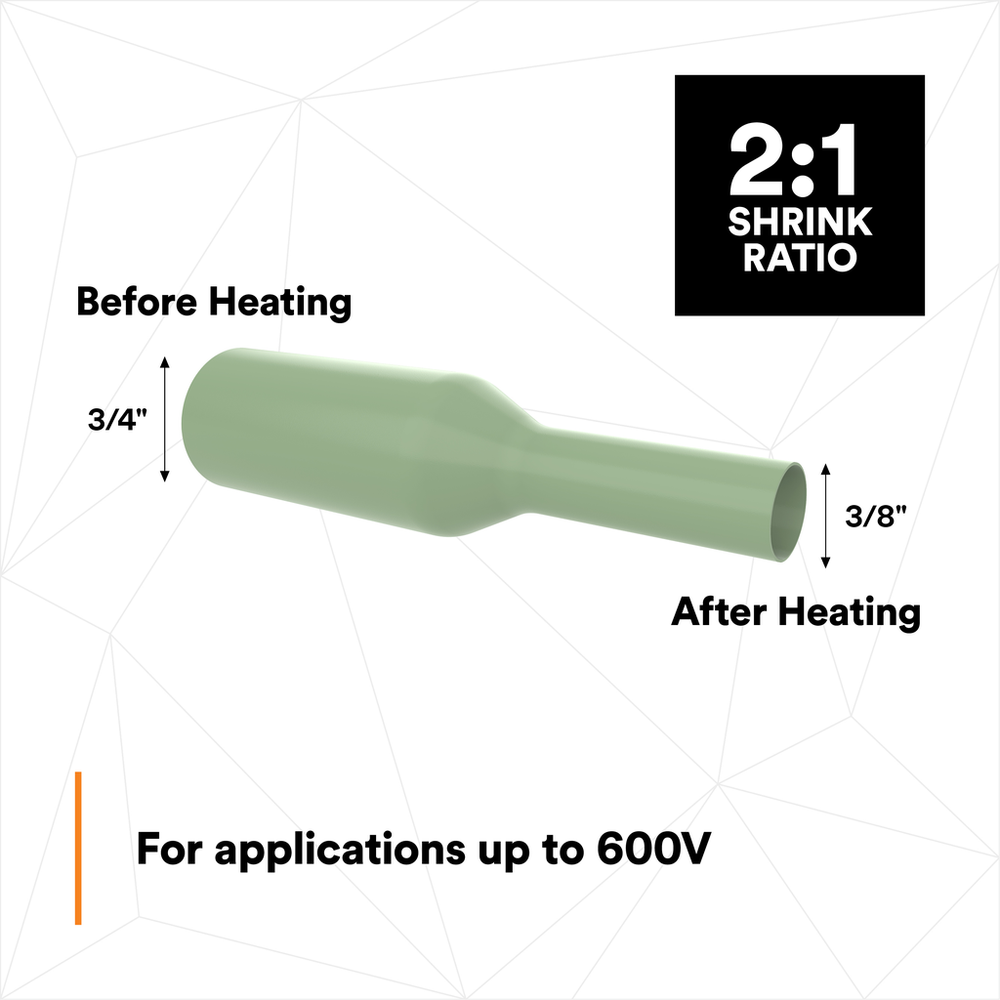

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)19.05
Overall Length (Imperial)200.0
Non-CorrosiveYes
Inner Diameter Before Shrink (Imperial)0.75
Product ColorGreen
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Minimum Expanded Tubing I. D.3.0
Elongation UOM%
UL File NumberE-39100
Inner Diameter After Shrink (Imperial)0.375
Maximum Operating Temperature (Fahrenheit) UOMDegree
Shrink Ratio2:1
Inner Diameter After Shrink (Metric)9.53
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial) UOMft
Adhesive MaterialNone
Inner Diameter Before Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Celsius)135.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial) UOMin
Tubing TypeSingle (Thin) Wall
Flame RetardantYes
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)275.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
