3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-Green-200`: 200 ft spool length, 600 ft/case - 7100029961

Sold As: 600-Pack
SKU: 7100029961
MPN: 7100029961
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007569862
3M ID: 80610649461
5 Digit UPC: 56986
$377.56 ($0.63 / Count)
Hurry up! Current stock:

Product Description

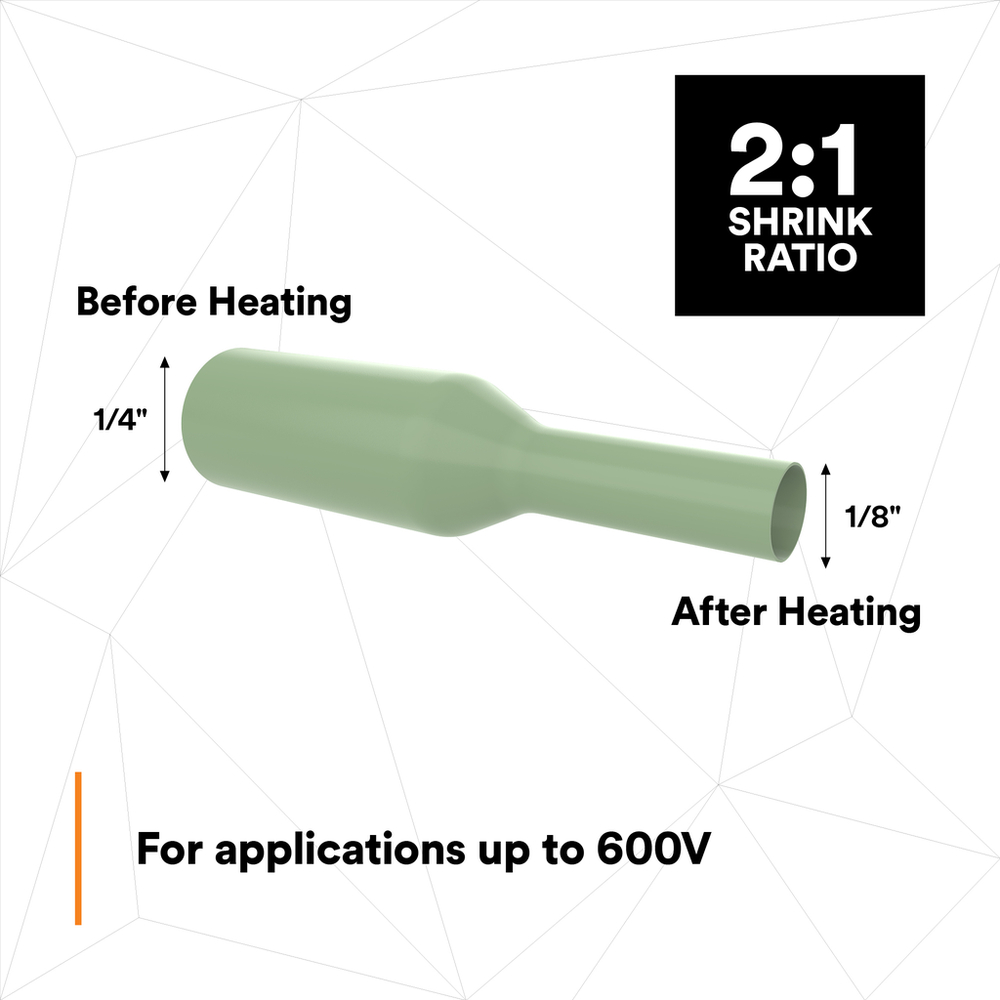

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)3.18
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Imperial)0.25
UL File NumberE-39100
Maximum Operating Temperature (Celsius) UomDegree
Adhesive MaterialNone
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
MaterialFlexible Polyolefin
UL ApprovalYes
Overall Length (Imperial)200.0
Flame RetardantYes
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Metric)6.35
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial)0.125
Product ColorGreen
Operating Temperature Range (Celsius)-55 °C to +135 °C
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial) UOMft
Non-CorrosiveYes
Shrink Ratio2:1
Tubing TypeSingle Wall (Thin)
Elongation UOM%
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Expanded Tubing I. D.1.0
