3M Products & Supplies

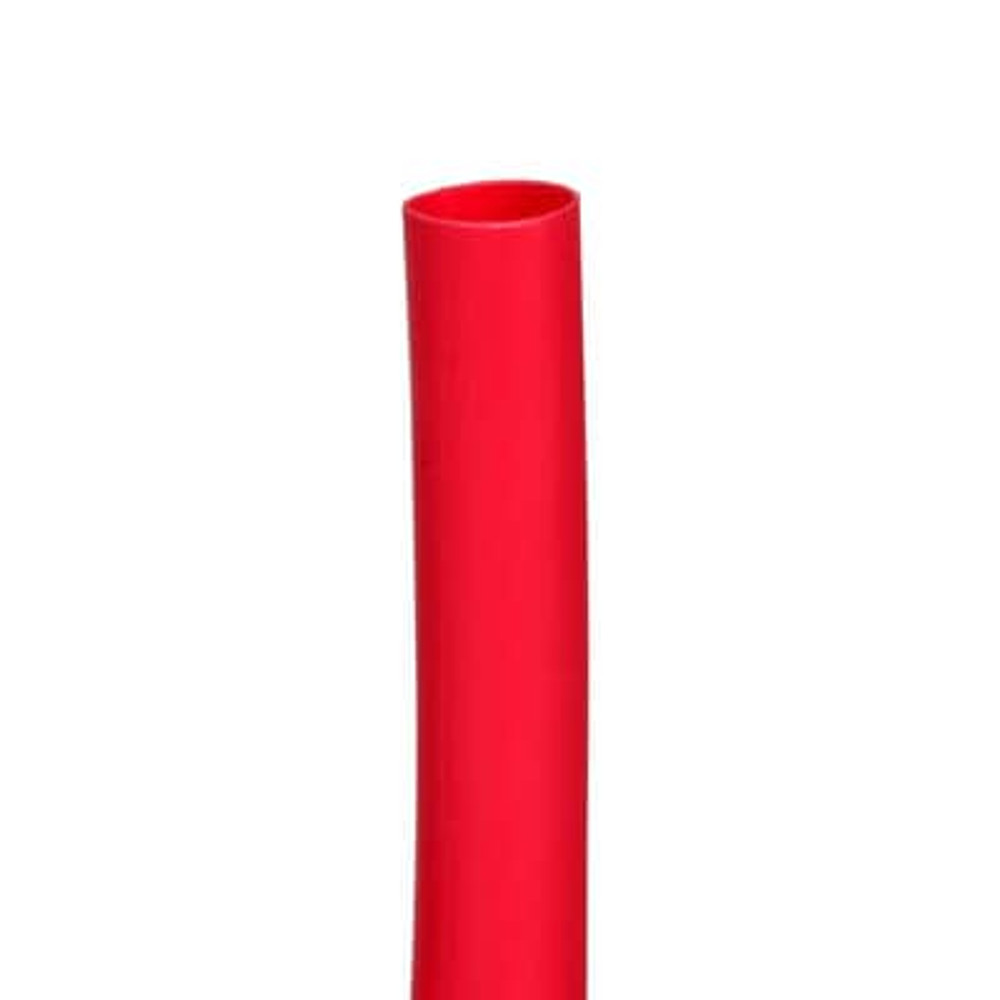

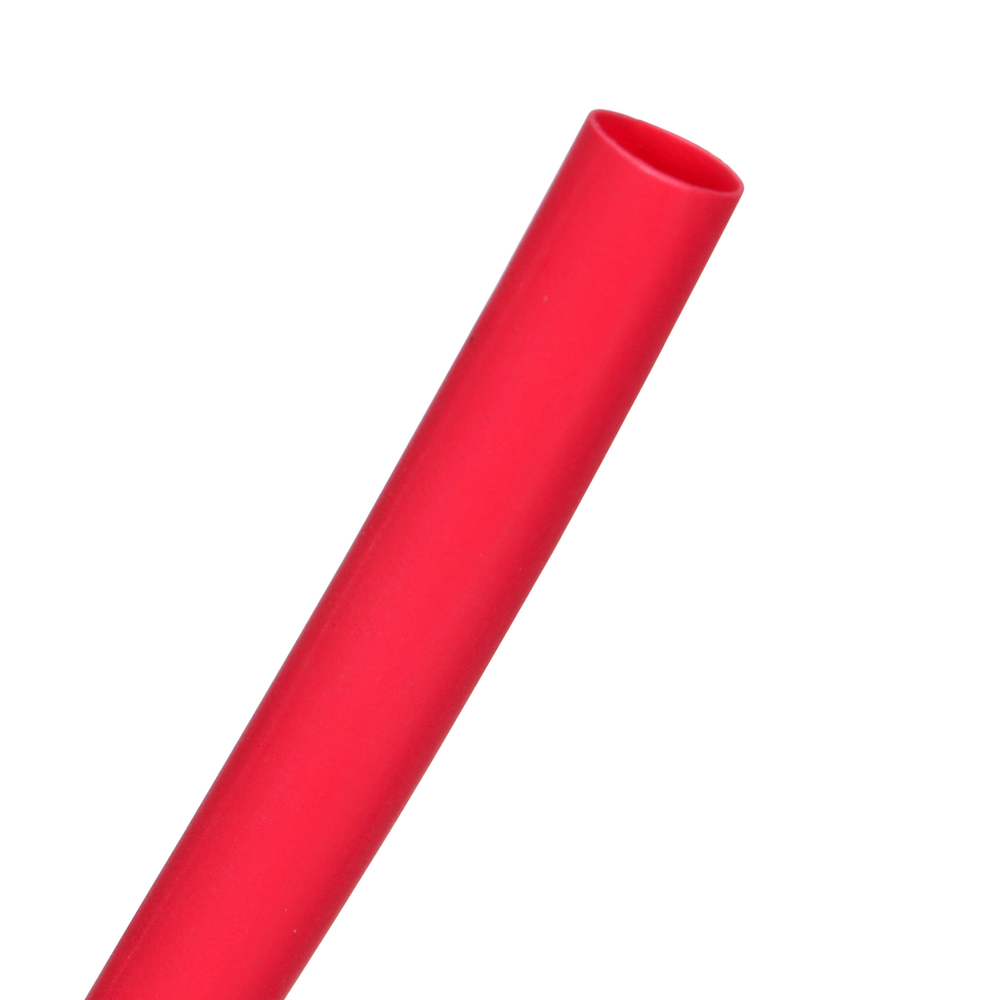

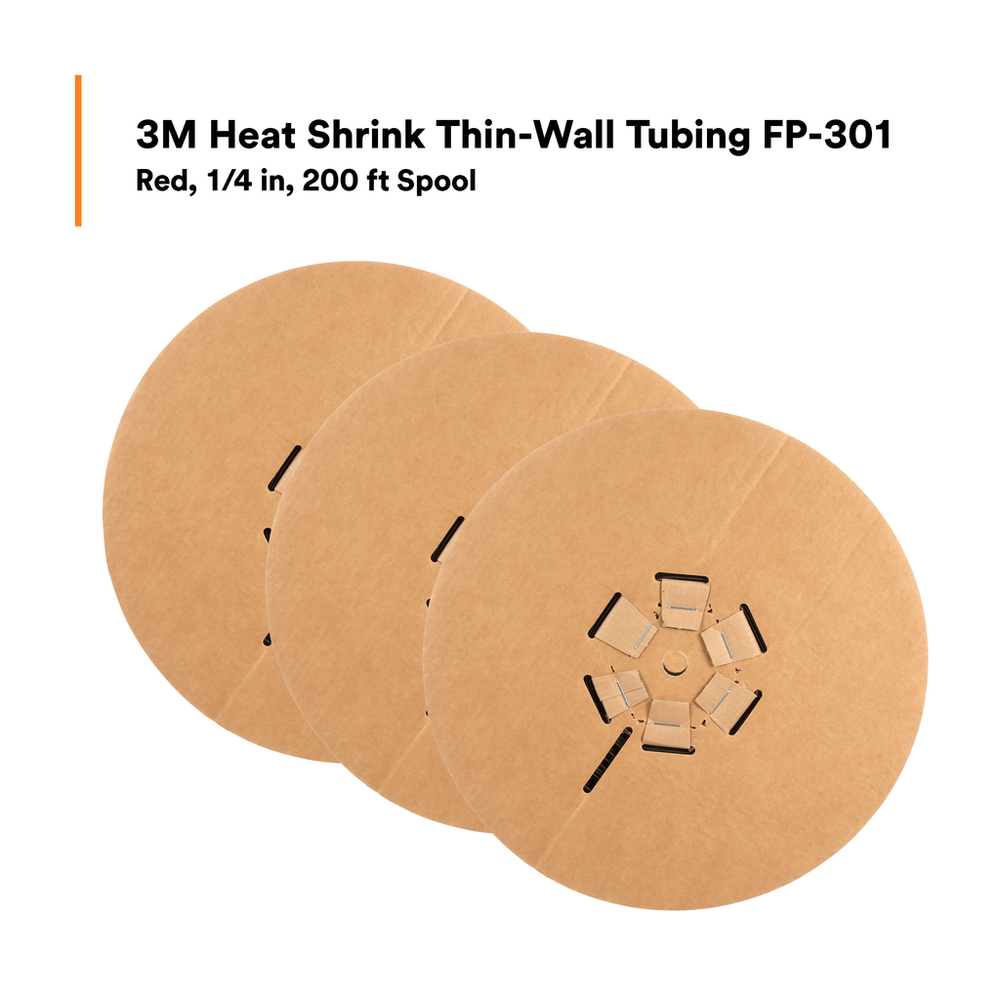

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-Red-200`: 200 ft spool length, 600 ft/case - 7100029973

Sold As: 600-Pack
SKU: 7100029973
MPN: 7100029973
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084884
3M ID: 80610219562
5 Digit UPC: 8488
$361.91 ($0.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Imperial) UOMin
Adhesive MaterialNone
Flame RetardantYes
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Non-CorrosiveYes
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter Before Shrink (Imperial)0.25
Product ColorRed
Minimum Expanded Tubing I. D. UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Shrink Ratio2:1
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Metric)3.18
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)6.35
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial)0.125
UL ApprovalYes
Maximum Operating Temperature (Celsius)135.0
Overall Length (Imperial)200.0
Maximum Operating Temperature (Fahrenheit)275.0
UL File NumberE-39100
Elongation UOM%
MaterialFlexible Polyolefin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Expanded Tubing I. D.1.0
Tubing TypeSingle Wall (Thin)
Minimum Shrink Temperature (Celsius)100.0
