3M Products & Supplies

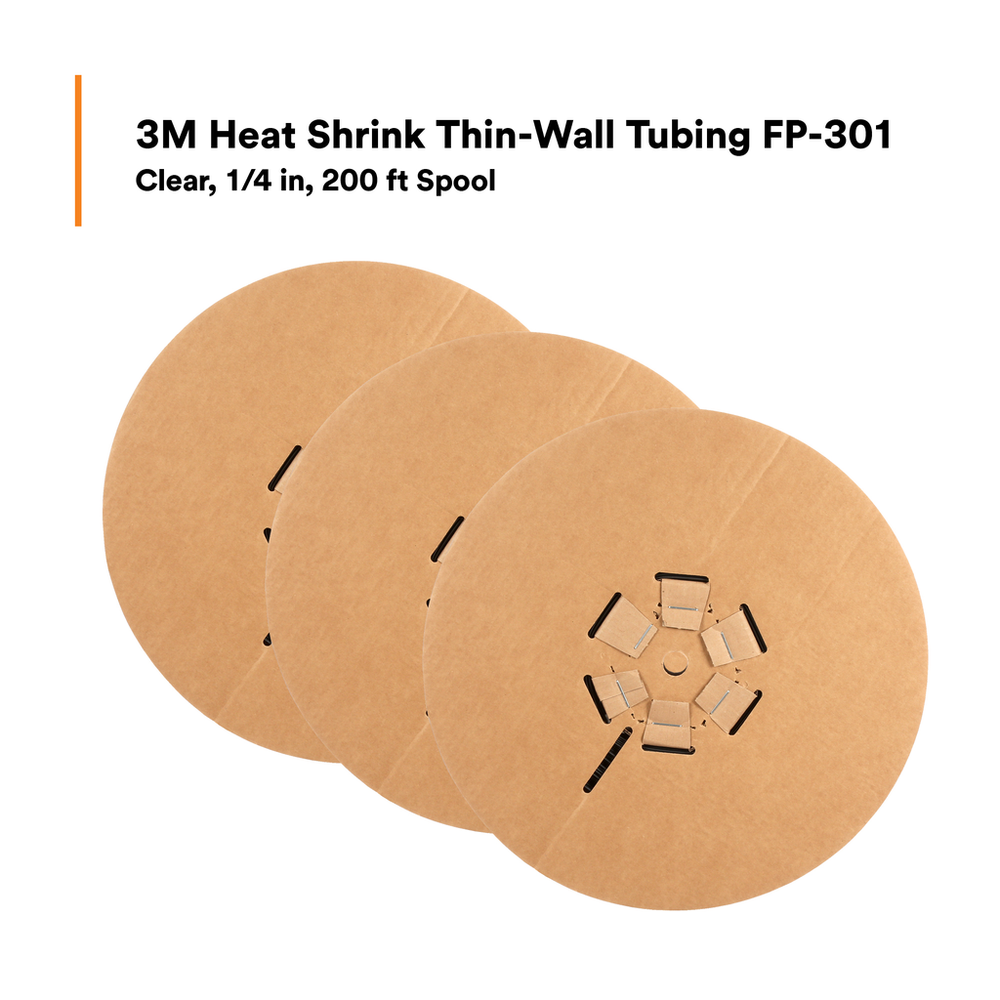

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-Clear-200`: 200 ft spool length, 600 ft/case - 7100026208

Sold As: 600-Pack
SKU: 7100026208
MPN: 7100026208
For an accurate lead time please contact us
UPC: 10054007085284
3M ID: 80610219968
5 Digit UPC: 8528
$361.91 ($0.60 / Count)
Hurry up! Current stock:

Product Description

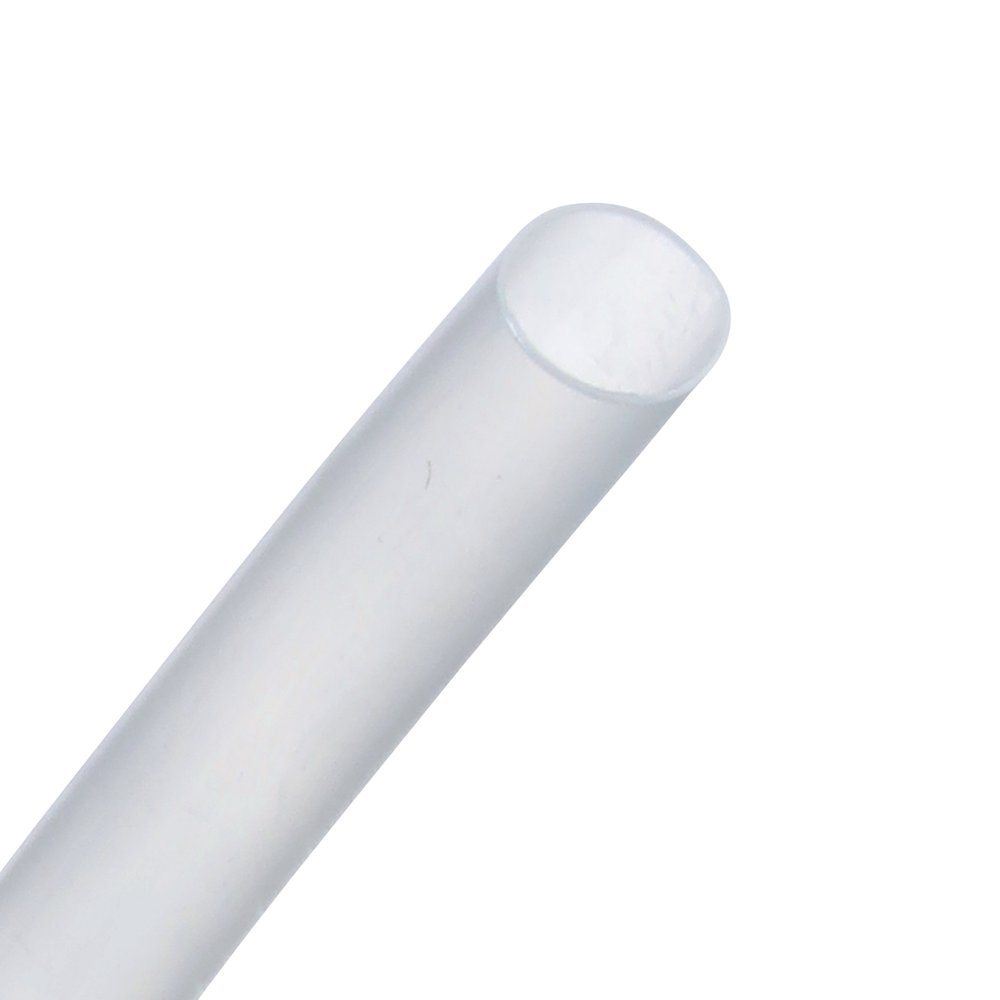

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States

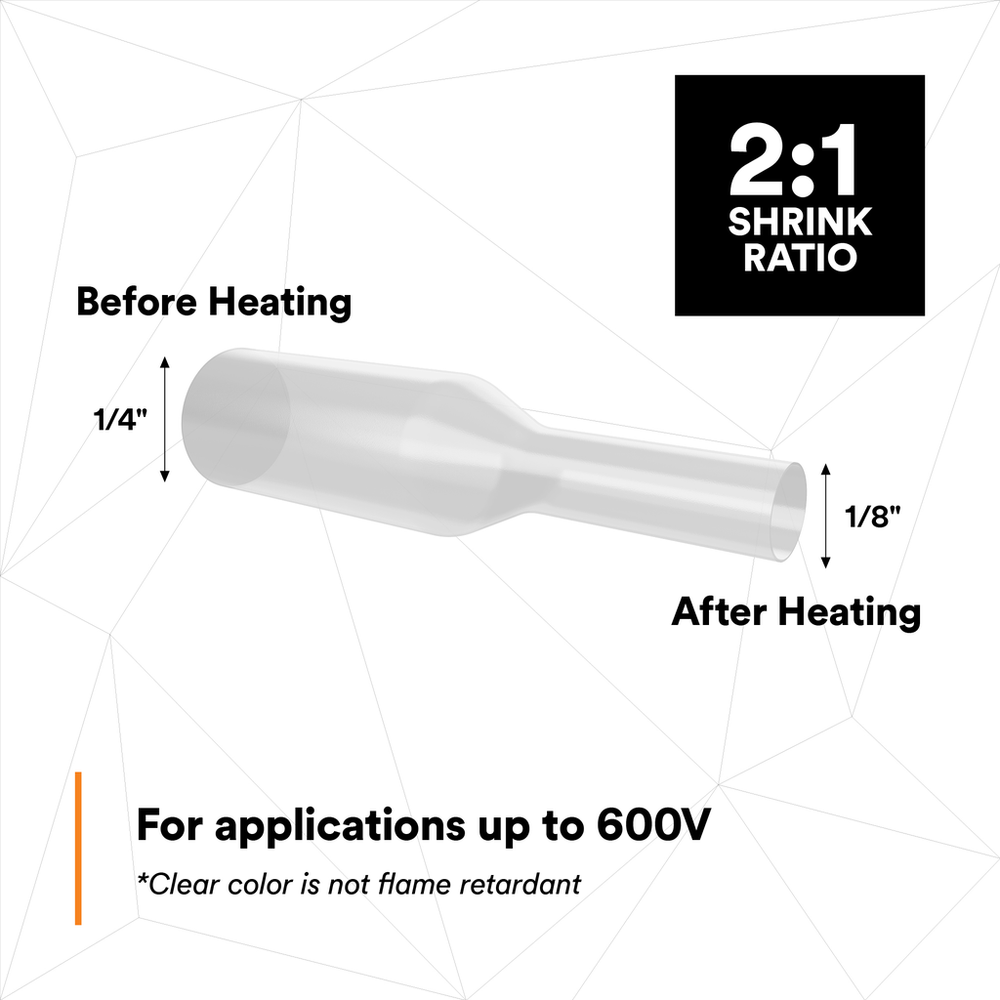

Shrink Ratio2:1
Adhesive MaterialNone
Minimum Expanded Tubing I. D.1.0
Inner Diameter Before Shrink (Imperial)0.25
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Non-CorrosiveYes
Inner Diameter After Shrink (Metric)3.18
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)6.35
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Imperial)0.125
Inner Diameter Before Shrink (Imperial) UOMin
Product FormStick
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation UOM%
Flame RetardantNo
Maximum Operating Temperature (Celsius)135.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit)275.0
Units per Case3.0
Inner Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
Tubing TypeSingle Wall (Thin)
Inner Diameter Before Shrink (Metric) UOMmm
UL File NumberE-39100
Mil SpecAMS-DTL-23053/5, Class 2
Product ColorTransparent
Overall Length (Imperial) UOMft
Overall Length (Imperial)200.0
Minimum Expanded Tubing I. D. UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
MaterialFlexible Polyolefin
UL ApprovalYes
