3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-Blue-200`: 200 ft spool length, 600 ft/case - 7100025163

Sold As: 600-Pack
SKU: 7100025163
MPN: 7100025163
Stock Item: Stock items typically ship within 2-3 business days
UPC: 30054007084878
3M ID: 80610219554
5 Digit UPC: 8487
$373.16 ($0.62 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant

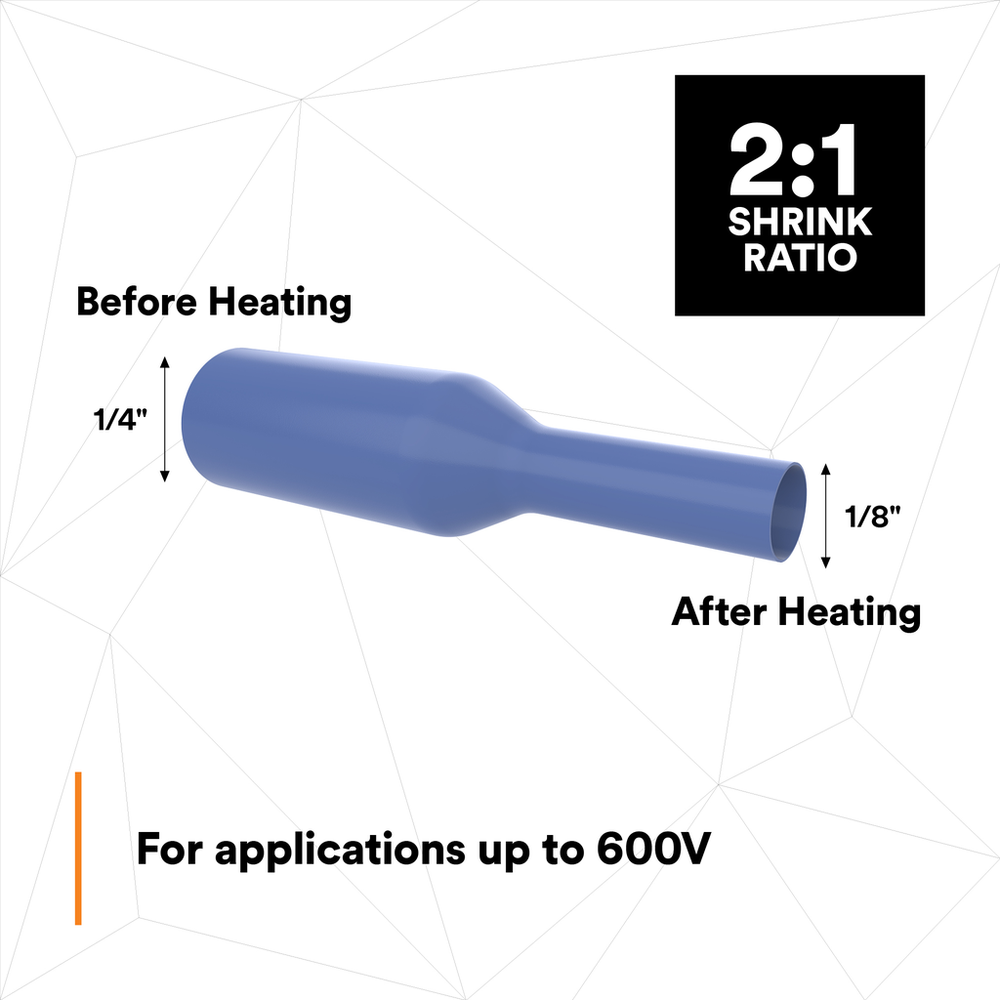

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Overall Length (Imperial)200.0
Maximum Operating Temperature (Celsius)135.0
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)6.35
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Expanded Tubing I. D.1.0
Flame RetardantYes
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric)3.18
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial)0.25
MaterialFlexible Polyolefin
Inner Diameter After Shrink (Metric) UOMmm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Imperial)0.125
Mil SpecAMS-DTL-23053/5, Class 1
Product ColorBlue
Maximum Operating Temperature (Celsius) UomDegree
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
UL ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
Operating Temperature Range (Celsius)-55 °C to +135 °C
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL File NumberE-39100
Minimum Shrink Temperature (Celsius)100.0
