3M Products & Supplies

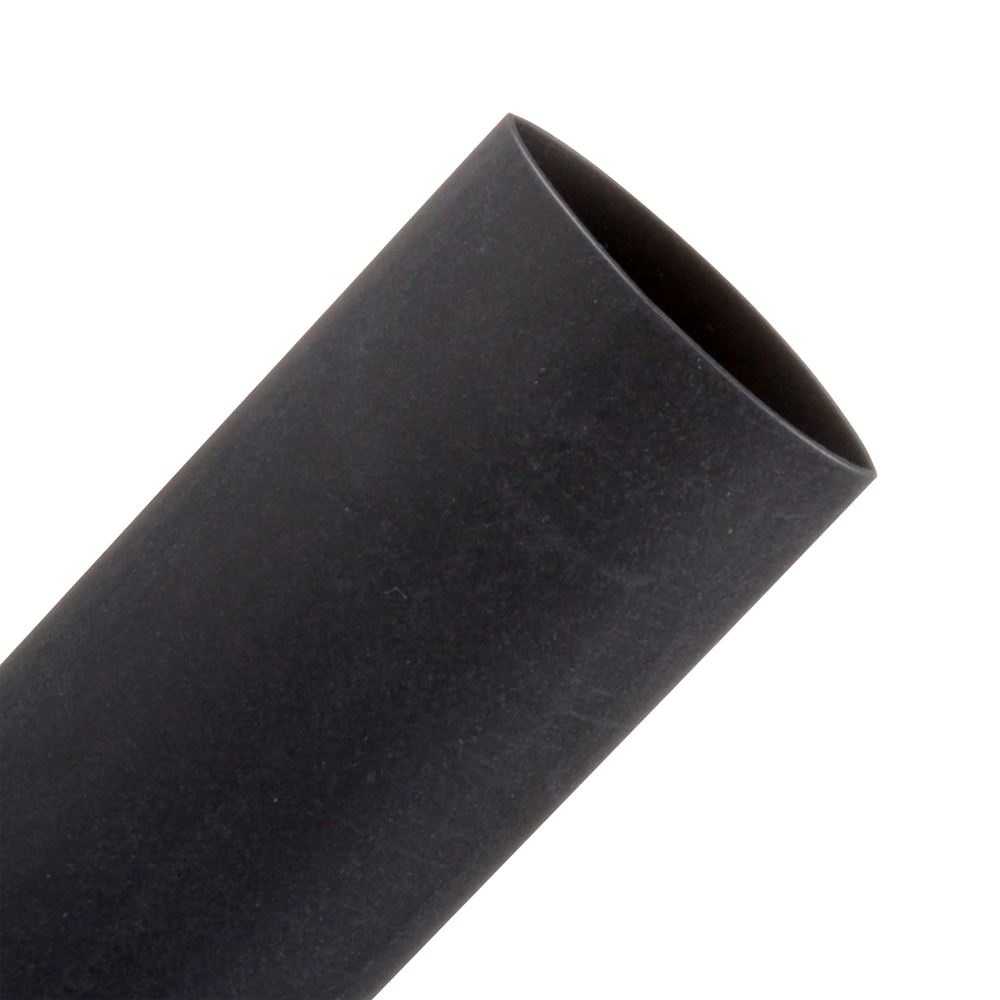

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Black-200`: 200 ft spool length, 600 ft/case - 7100027324

Sold As: 600-Pack
SKU: 7100027324
MPN: 7100027324
For an accurate lead time please contact us
UPC: 00054007085027
3M ID: 80610219703
5 Digit UPC: 8502
$652.19 ($1.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Imperial)200.0
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Tubing TypeSingle Wall (Thin)
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric)9.53
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Imperial)0.75
MaterialFlexible Polyolefin
Units per Case3.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive MaterialNone
Minimum Expanded Tubing I. D.3.0
Inner Diameter Before Shrink (Metric)19.05
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)275.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
UL File NumberE-39100
Shrink Ratio2:1
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial) UOMin
UL ApprovalYes
Minimum Expanded Tubing I. D. UOMin
Maximum Operating Temperature (Celsius)135.0
Product FormStick
Inner Diameter Before Shrink (Imperial) UOMin
Non-CorrosiveYes
Flame RetardantYes
Elongation UOMDecibel
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial)0.375
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Imperial) UOMft
