3M Products & Supplies

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-Yellow-200`: 200 ft spool length, 600 ft/case - 7010396217

Sold As: 600-Pack
SKU: 7010396217
MPN: 7010396217
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084907
3M ID: 80610219588
5 Digit UPC: 8490
$361.91 ($0.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)

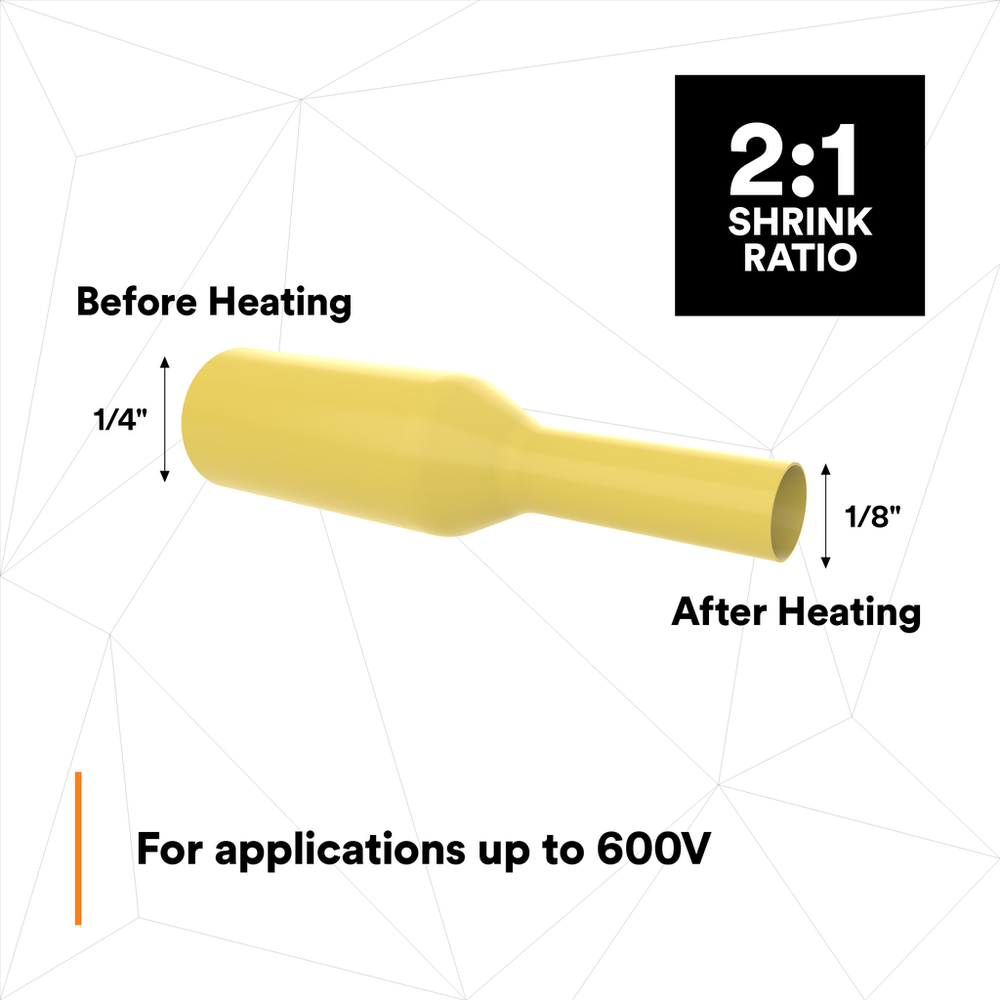

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Inner Diameter After Shrink (Imperial) UOMin
Elongation UOMdB
Inner Diameter Before Shrink (Imperial)0.25
Product ColorYellow
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesive MaterialNone
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Shrink Ratio2:1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
UL File NumberE-39100
Inner Diameter After Shrink (Metric) UOMmm
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Metric)6.35
Flame RetardantYes
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Fahrenheit)275.0
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Mil SpecAMS-DTL-23053/5, Class 1
Tubing TypeSingle (Thin) Wall
Inner Diameter After Shrink (Metric)3.18
Inner Diameter After Shrink (Imperial)0.125
Overall Length (Imperial)200.0
Maximum Operating Temperature (Celsius)135.0
