3M Products & Supplies

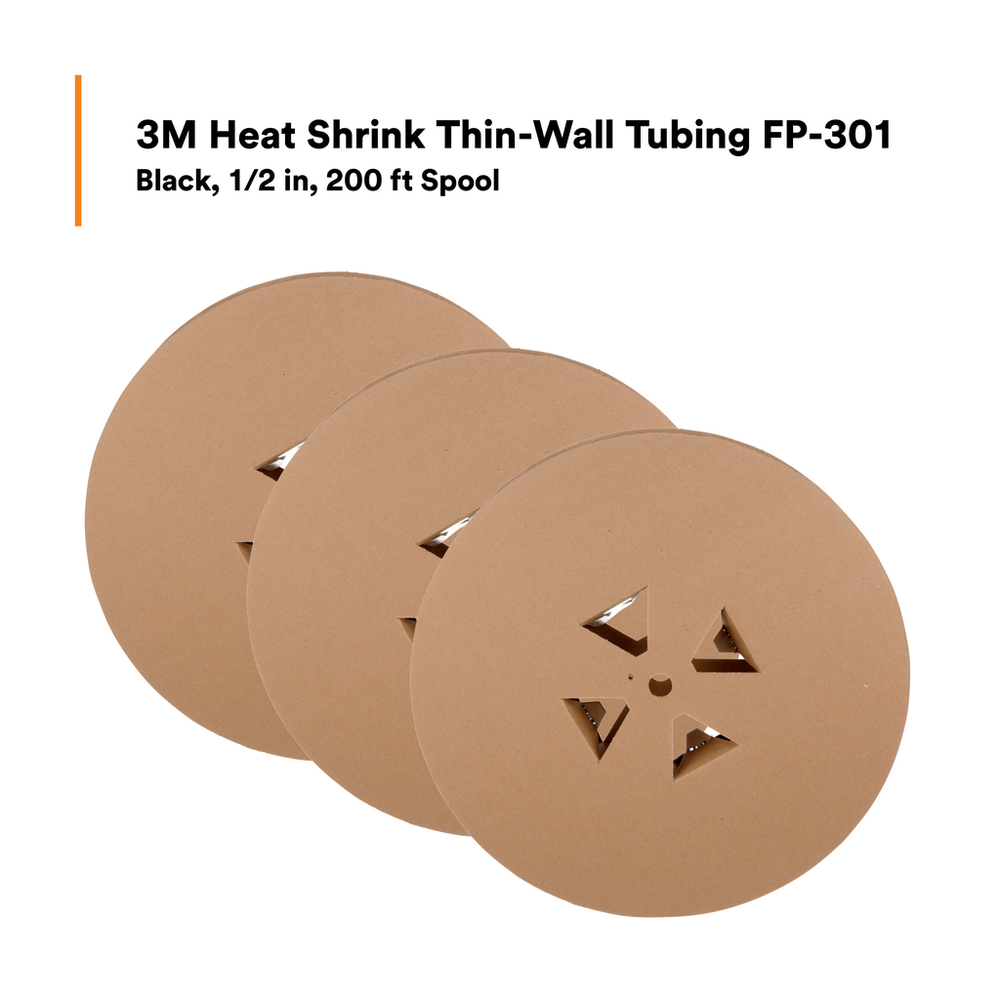

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-Black-200', 200 ft Length per spool, 3 spools/case - 7100024898

Sold As: 600-Pack
SKU: 7100024898
MPN: 7100024898
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084969
3M ID: 80610219646
5 Digit UPC: 8496
$388.35 ($0.65 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D. UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Operating Temperature Range (Celsius)-55 °C to +135 °C
Non-CorrosiveYes
Inner Diameter Before Shrink (Metric)12.7
Product ColorBlack
Overall Length (Imperial)200.0
Inner Diameter After Shrink (Imperial)0.25
Flame RetardantYes
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter Before Shrink (Imperial)0.5
Shrink Ratio2:1
Tubing TypeSingle Wall (Thin)
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Celsius)135.0
UL ApprovalYes
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)100.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter After Shrink (Metric)6.35
UL File NumberE-39100
Adhesive MaterialNone
Units per Case3.0
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial) UOMin
Elongation UOM%
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Metric) UOMmm
MaterialFlexible Polyolefin
