3M Products & Supplies

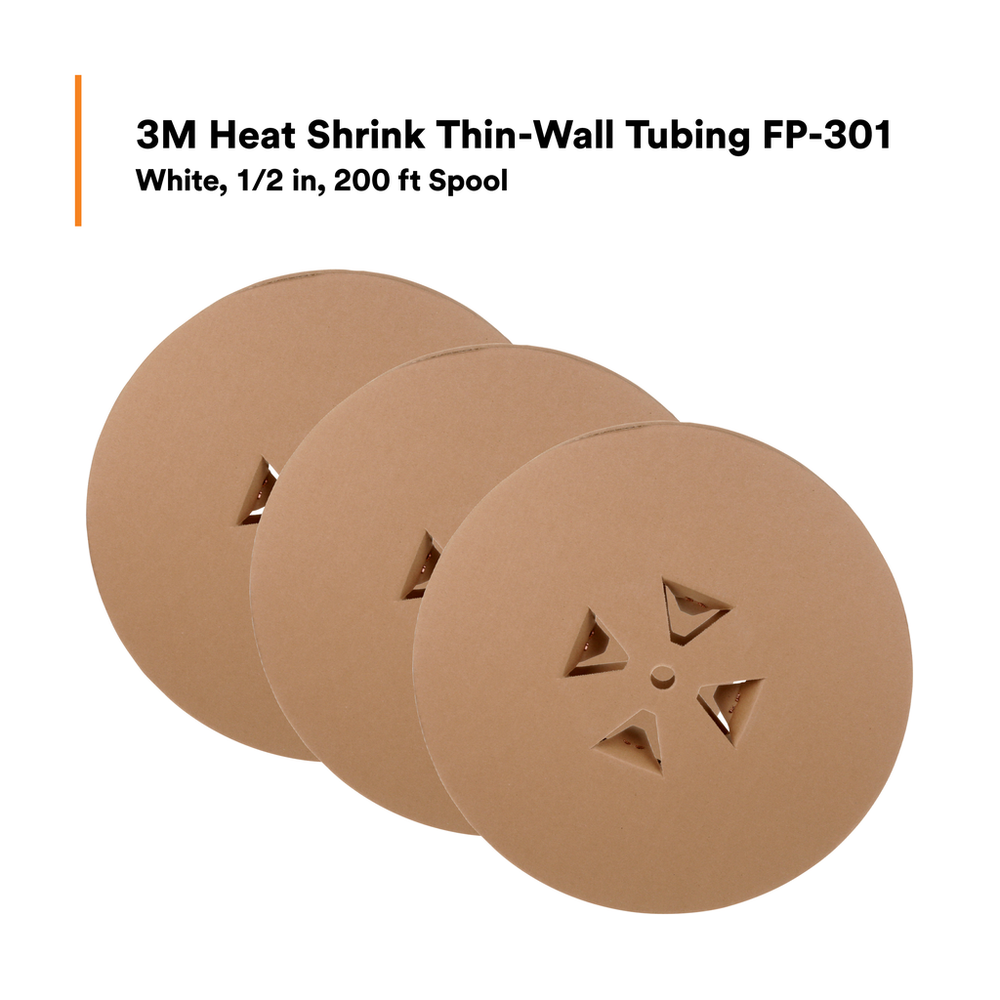

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-White-200', 200 ft Length per spool, 3 Rolls/Case - 7010349738

Sold As: 1200-Pack
SKU: 7010349738
MPN: 7010349738
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007085003
3M ID: 80610219687
5 Digit UPC: 8500
$794.44 ($0.66 / Count)
Hurry up! Current stock:

Product Description

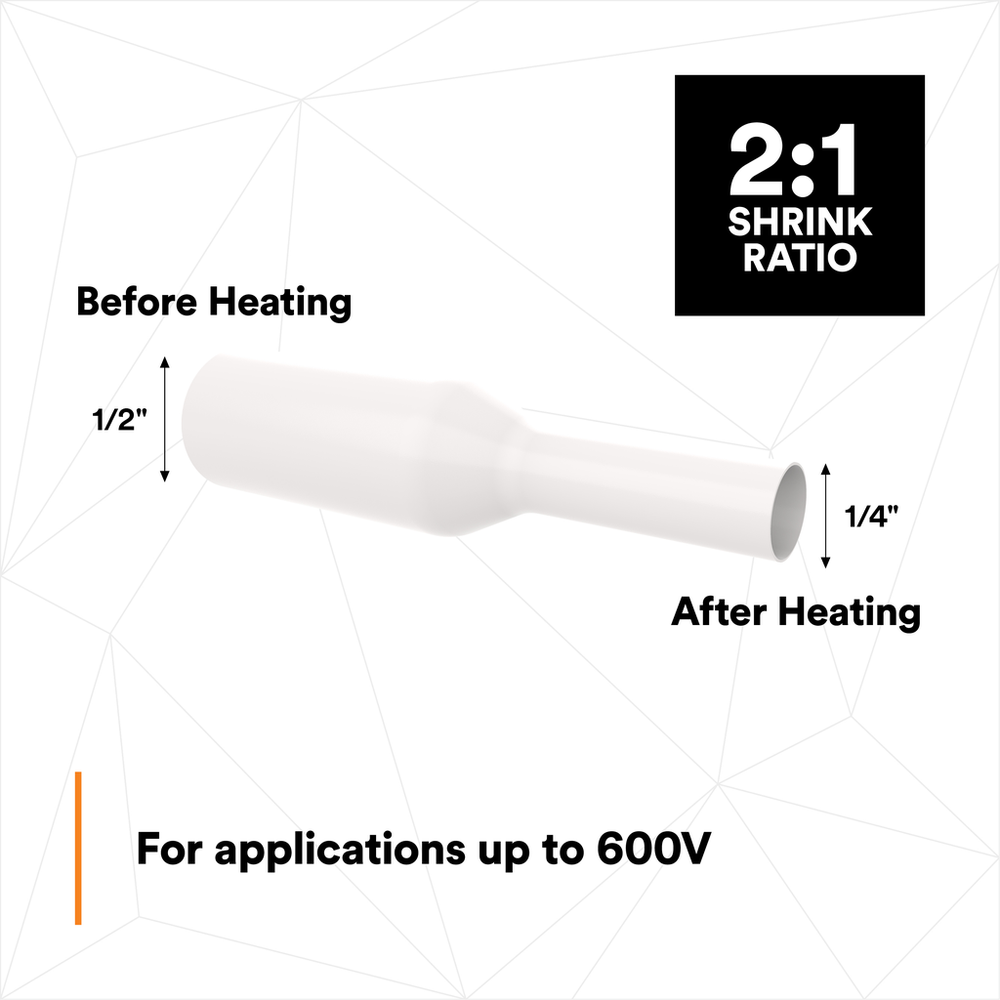

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Overall Length (Imperial)200.0
Product ColorWhite
Maximum Operating Temperature (Celsius) UomDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Imperial)0.25
Mil SpecAMS-DTL-23053/5, Class 1
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMft
Non-CorrosiveYes
UL File NumberE-39100
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Imperial)0.5
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.1.0
Tubing TypeSingle (Thin) Wall
Flame RetardantYes
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Metric)6.35
Adhesive MaterialNone
Shrink Ratio2:1
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Elongation UOM%
Inner Diameter Before Shrink (Metric)12.7
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
