3M Products & Supplies

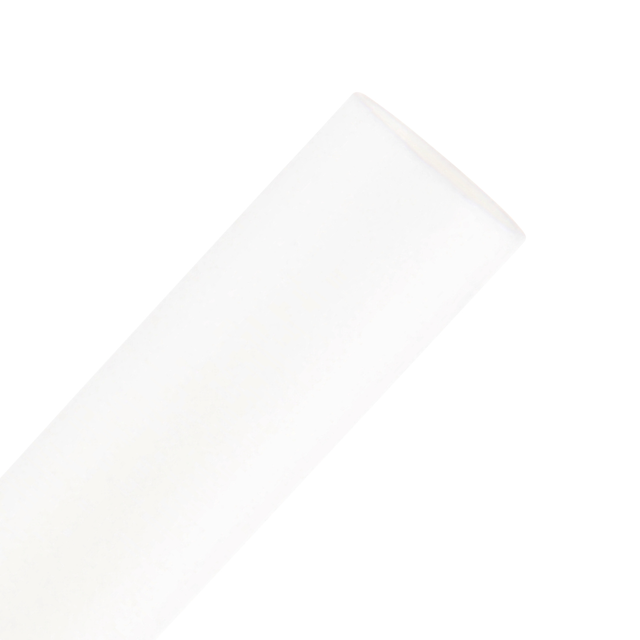

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-White-200', 200 ft Length per spool, 3 Rolls/Case - 7010396224

Sold As: 1200-Pack
SKU: 7010396224
MPN: 7010396224
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007085065
3M ID: 80610219745
5 Digit UPC: 8506
$1,304.38 ($1.09 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter After Shrink (Metric)9.53
Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial)0.75
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter Before Shrink (Metric)19.05
Flame RetardantYes
Tubing TypeSingle (Thin) Wall
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D.3.0
UL File NumberE-39100
Elongation UOM%
Overall Length (Imperial) UOMft
Adhesive MaterialNone
Inner Diameter After Shrink (Imperial)0.375
Maximum Operating Temperature (Celsius)135.0
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Fahrenheit)275.0
Product ColorWhite
Mil SpecAMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial)200.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric) UOMmm
Non-CorrosiveYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Celsius) UomDegree
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
