3M Products & Supplies

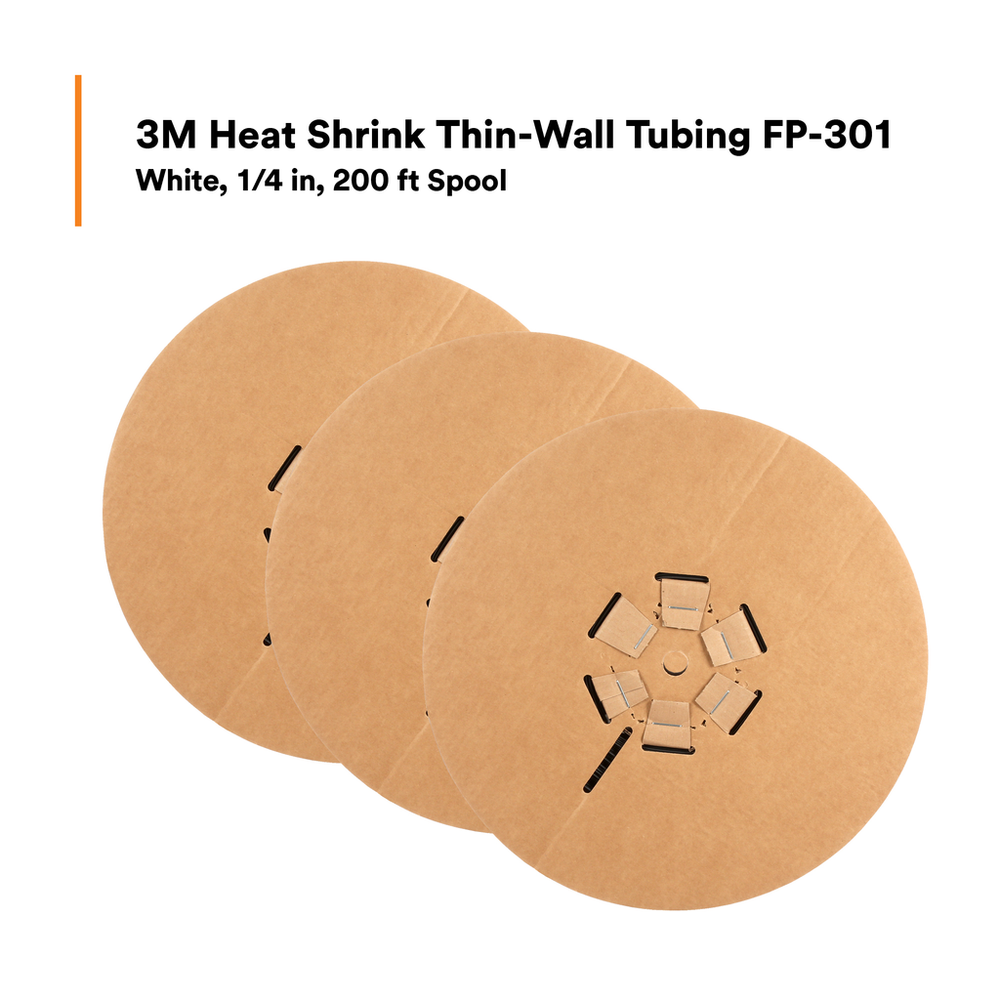

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/4-White-200', 200 ft Length per spool, 3 Rolls/Case - 7100029975

Sold As: 600-Pack
SKU: 7100029975
MPN: 7100029975
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007084891
3M ID: 80610219570
5 Digit UPC: 8489
$361.91 ($0.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)

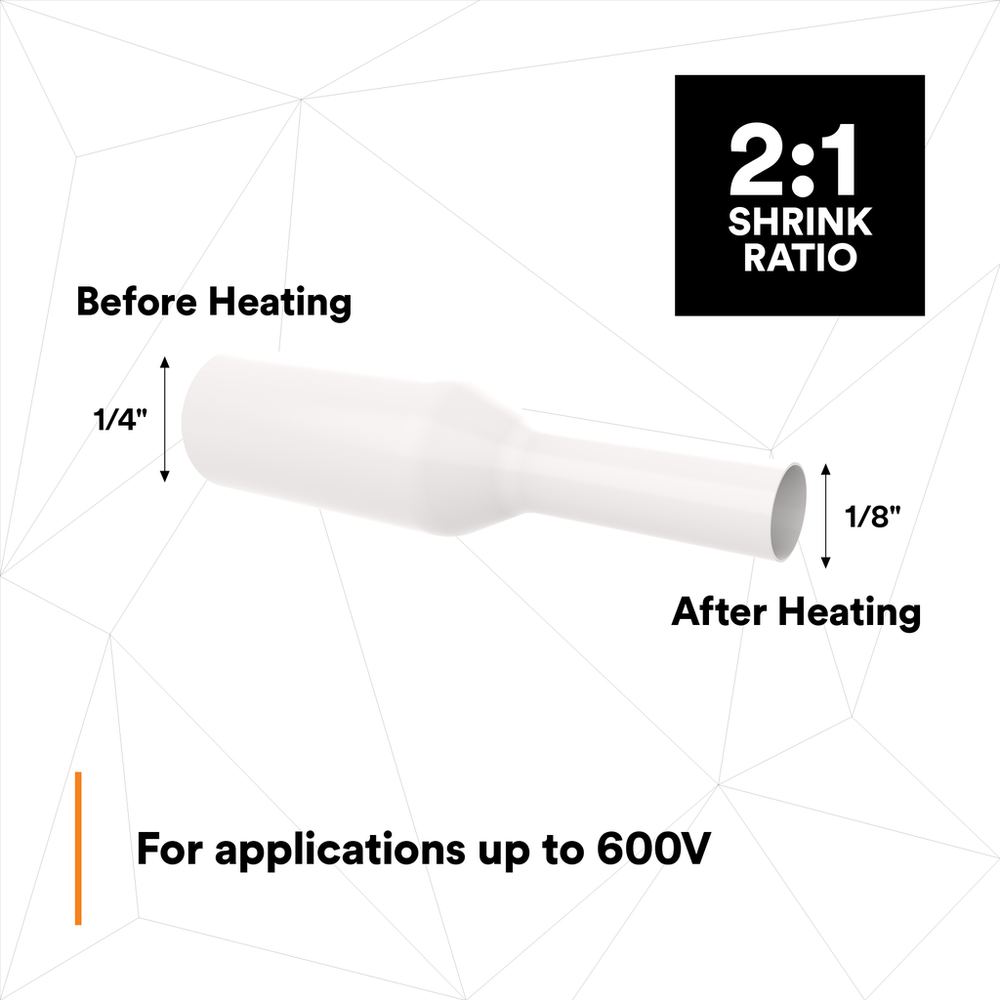

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial)0.25
Maximum Operating Temperature (Celsius)135.0
Operating Temperature Range (Celsius)-55 °C to +135 °C
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.125
MaterialFlexible Polyolefin
Shrink Ratio2:1
Adhesive MaterialNone
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Inner Diameter After Shrink (Metric) UOMmm
UL File NumberE-39100
Inner Diameter Before Shrink (Metric)6.35
UL ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)3.18
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Tubing TypeSingle Wall (Thin)
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial) UOMin
Mil SpecAMS-DTL-23053/5, Class 1
Minimum Expanded Tubing I. D.1.0
Minimum Shrink Temperature (Celsius)100.0
Non-CorrosiveYes
Overall Length (Imperial)200.0
Elongation UOM%
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Maximum Operating Temperature (Fahrenheit) UOMDegree
Recovered Wall Thickness UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Overall Length (Imperial) UOMft
Product ColorWhite
Recovered Wall Thickness0.025
Minimum Expanded Tubing I. D. UOMin
