3M Products & Supplies

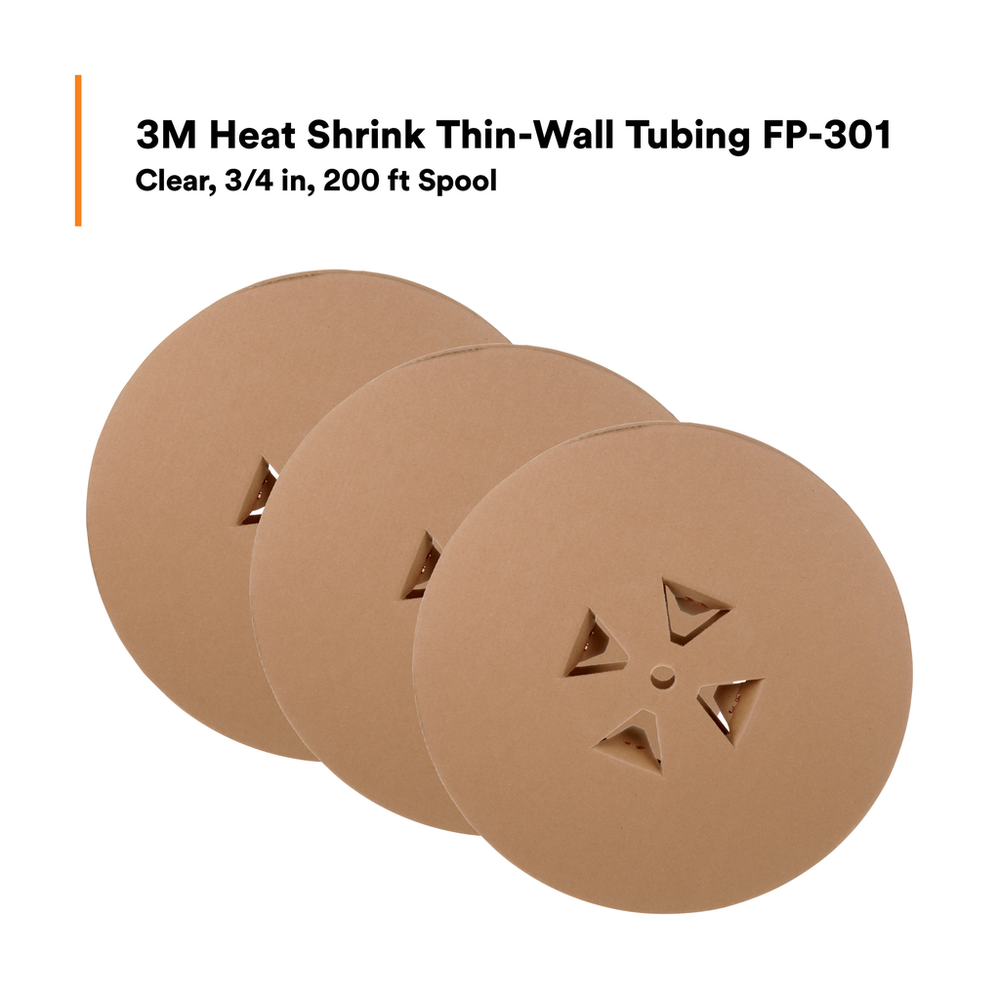

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/4-Clear-200', 200 ft Length per spool, 3 spools/case - 7100020274

Sold As: 600-Pack
SKU: 7100020274
MPN: 7100020274
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007085317
3M ID: 80610219992
5 Digit UPC: 8531
$652.19 ($1.09 / Count)
Hurry up! Current stock:

Product Description

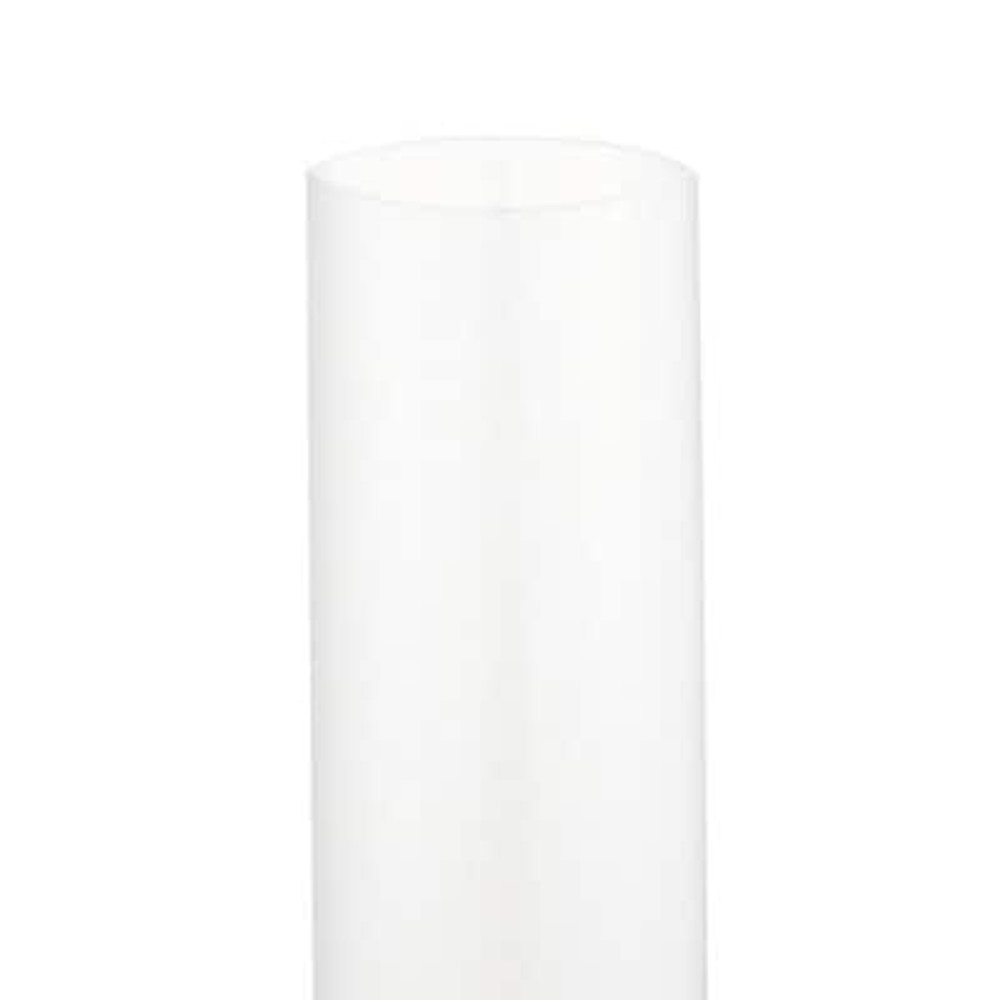

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Non-CorrosiveYes
MaterialFlexible Polyolefin
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Minimum Expanded Tubing I. D.3.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Adhesive MaterialNone
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial)0.375
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit)275.0
UL ApprovalYes
Inner Diameter Before Shrink (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Inner Diameter After Shrink (Metric) UOMmm
Shrink Ratio2:1
Operating Temperature Range (Celsius)-55 °C to +135 °C
Minimum Shrink Temperature (Celsius)100.0
Product FormStick
Units per Case3.0
Overall Length (Imperial) UOMft
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)200.0
Elongation UOMDecibel
Maximum Operating Temperature (Celsius)135.0
Inner Diameter Before Shrink (Imperial)0.75
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Mil SpecAMS-DTL-23053/5, Class 2
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)9.53
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter Before Shrink (Metric)19.05
UL File NumberE-39100
Tubing TypeSingle Wall (Thin)
