3M Products & Supplies

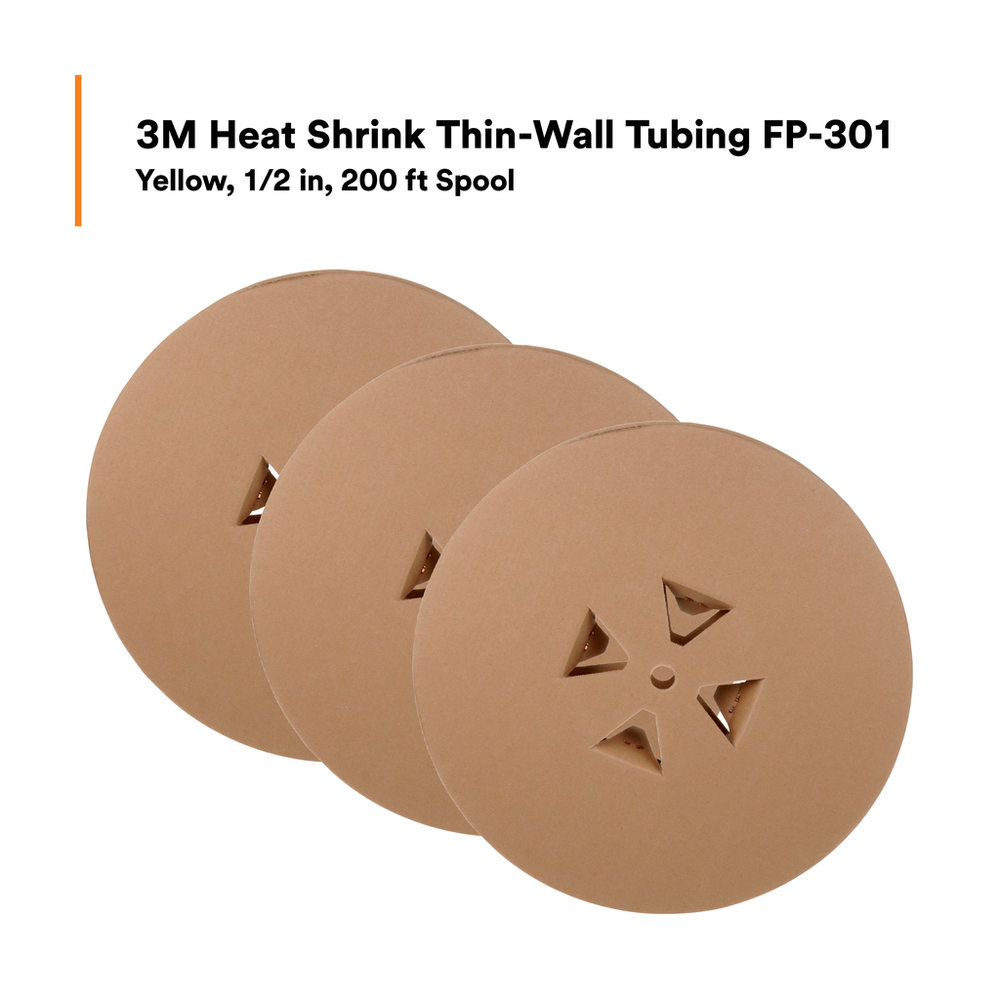

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-Yellow-200', 200 ft Length per spool, 3 Rolls/Case - 7100025162

Sold As: 1200-Pack
SKU: 7100025162
MPN: 7100025162
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007085010
3M ID: 80610219695
5 Digit UPC: 8501
$816.95 ($0.68 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Metric)12.7
Overall Length (Imperial) UOMft
Minimum Shrink Temperature (Celsius)100.0
Flame RetardantYes
UL ApprovalYes
Operating Temperature Range (Celsius)-55 °C to +135 °C
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Expanded Tubing I. D.1.0
Maximum Operating Temperature (Celsius) UomDegree
Product ColorYellow
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter After Shrink (Imperial) UOMin
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Tubing TypeSingle Wall (Thin)
Inner Diameter After Shrink (Metric)6.35
Inner Diameter After Shrink (Metric) UOMmm
Shrink Ratio2:1
Inner Diameter Before Shrink (Imperial)0.5
Non-CorrosiveYes
Elongation UOM%
Inner Diameter After Shrink (Imperial)0.25
UL File NumberE-39100
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Mil SpecAMS-DTL-23053/5, Class 1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Maximum Operating Temperature (Fahrenheit)275.0
Adhesive MaterialNone
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Minimum Expanded Tubing I. D. UOMin
MaterialFlexible Polyolefin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial)200.0
