3M Products & Supplies

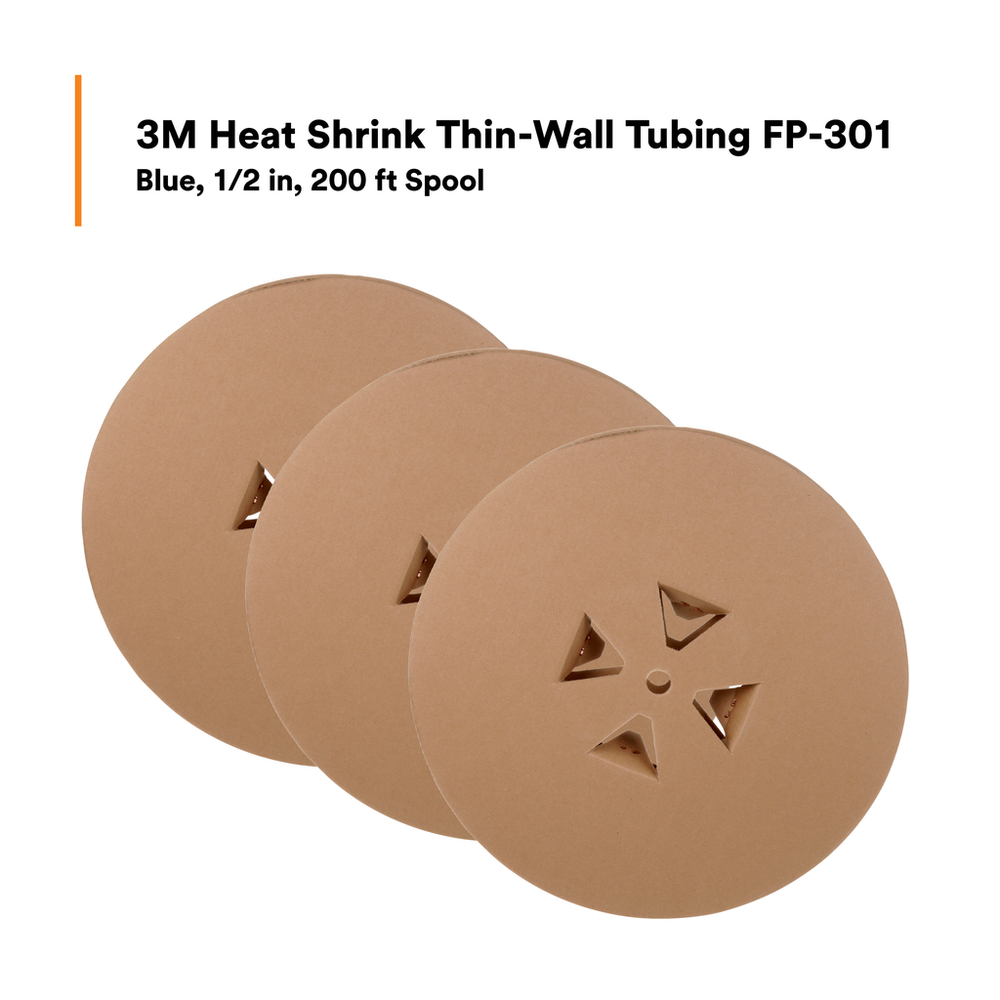

3M™ Heat Shrink Thin-Wall Tubing FP-301-1/2-Blue-200', 200 ft Length per spool, 3 Rolls/Case - 7100025159

Sold As: 1200-Pack
SKU: 7100025159
MPN: 7100025159
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084983
3M ID: 80610219661
5 Digit UPC: 8498
$776.71 ($0.65 / Count)
Hurry up! Current stock:

Product Description

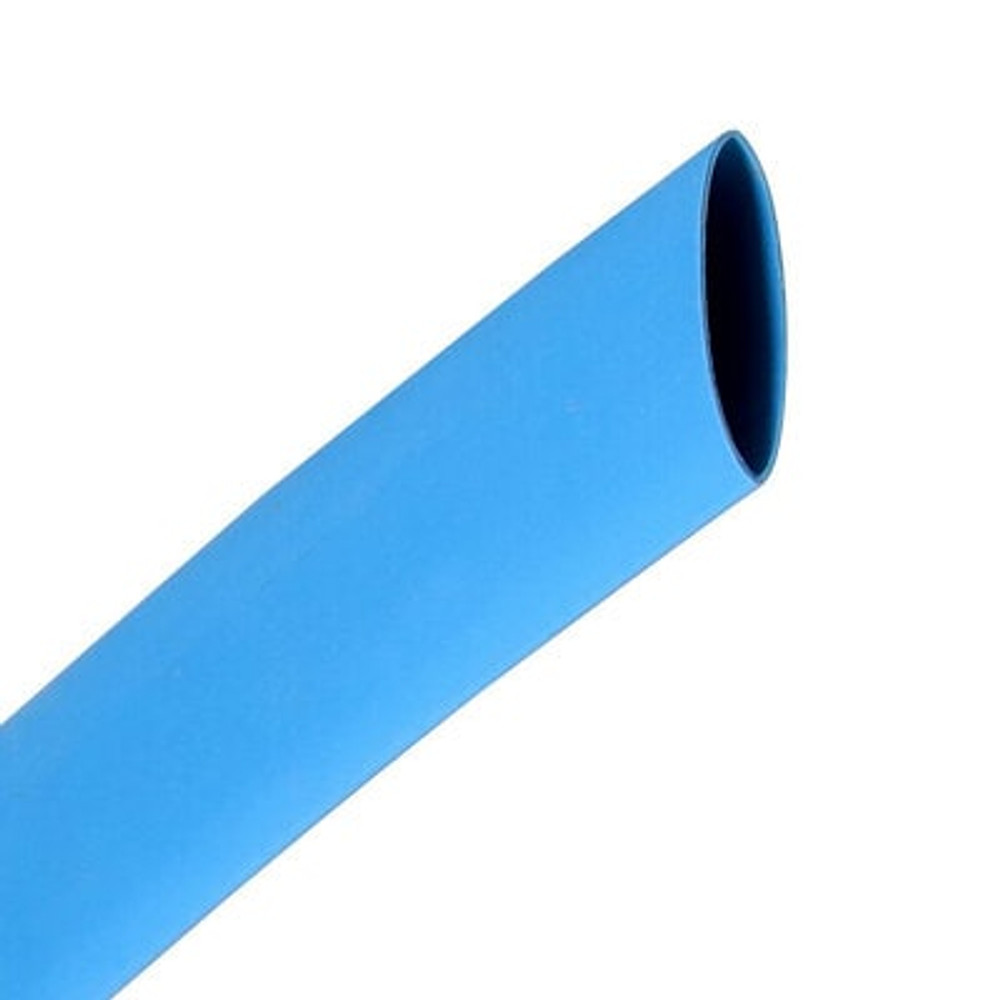

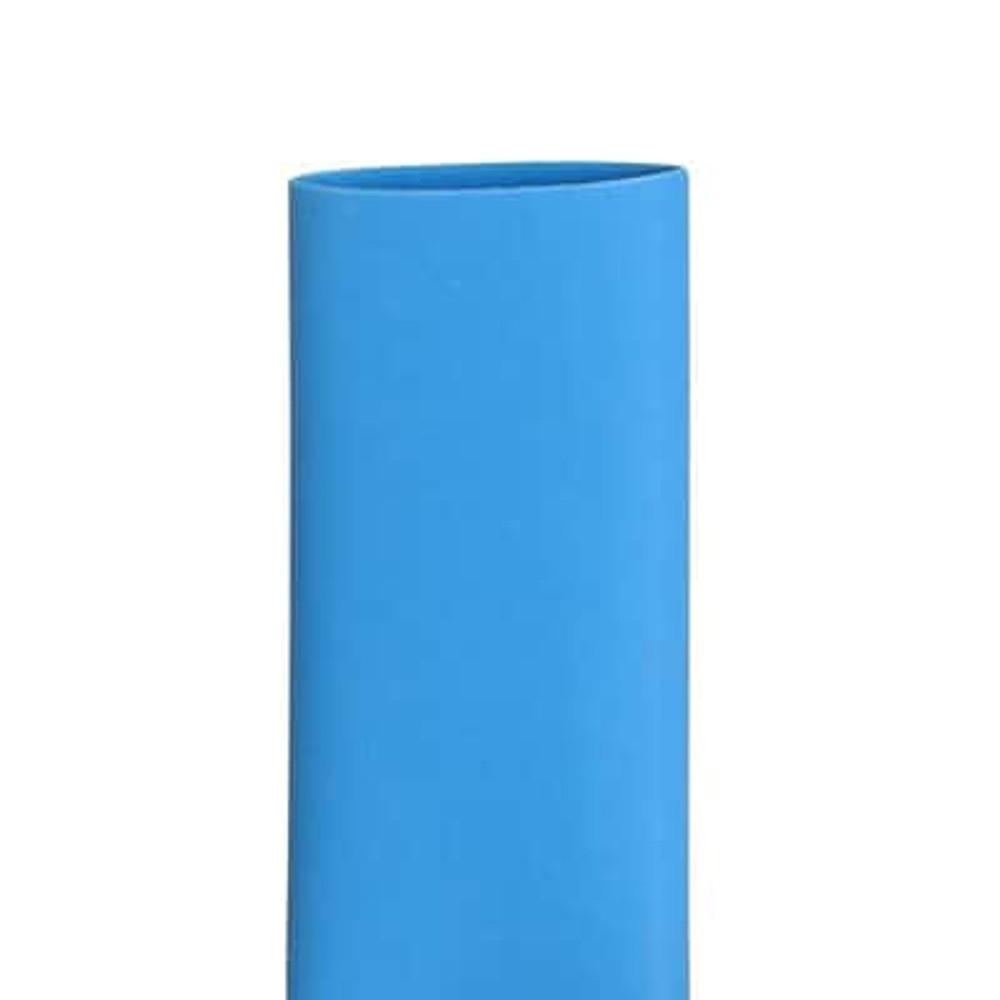

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

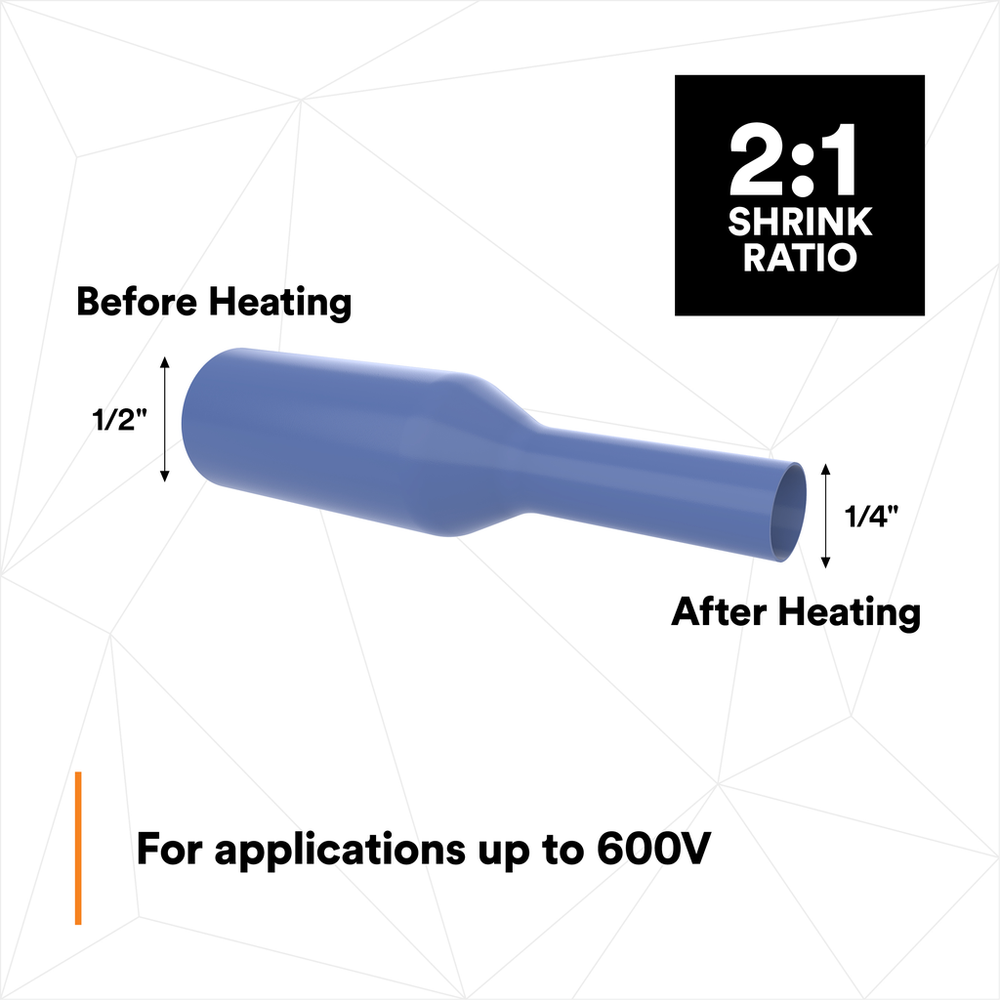

  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Mil SpecAMS-DTL-23053/5, Class 1
Overall Length (Imperial)200.0
Inner Diameter Before Shrink (Metric)12.7
UL File NumberE-39100
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature Range (Fahrenheit)-67 °F to 275 °F
Inner Diameter Before Shrink (Imperial)0.5
Minimum Expanded Tubing I. D. UOMin
UL ApprovalYes
Inner Diameter Before Shrink (Metric) UOMmm
Adhesive MaterialNone
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UomDegree
Flame RetardantYes
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Minimum Expanded Tubing I. D.1.0
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Minimum Shrink Temperature (Celsius)100.0
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
Operating Temperature Range (Celsius)-55 °C to +135 °C
Overall Length (Imperial) UOMft
Inner Diameter After Shrink (Metric)6.35
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Shrink Ratio2:1
Tubing TypeSingle Wall (Thin)
Inner Diameter Before Shrink (Imperial) UOMin
Product ColorBlue
MaterialFlexible Polyolefin
Maximum Operating Temperature (Fahrenheit)275.0
Inner Diameter After Shrink (Imperial)0.25
Non-CorrosiveYes
Elongation UOM%
