3M Products & Supplies

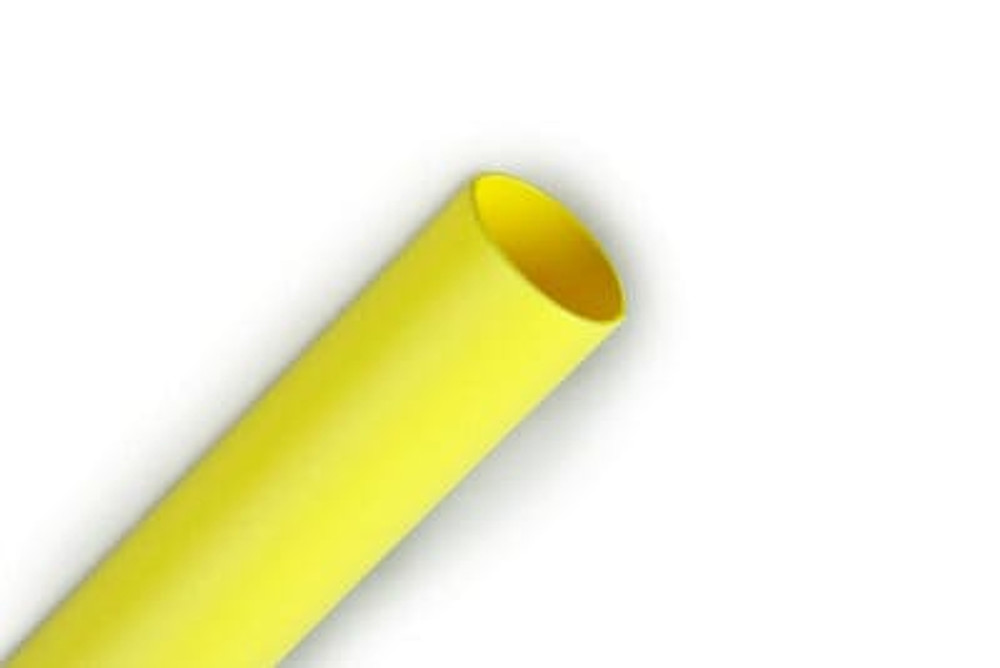

3M™ Heat Shrink Thin-Wall Tubing FP-301-3/8-Yellow-200`: 200 ft spool length, 200 ft/case - 7100100361

Sold As: 1800-Pack
SKU: 7100100361
MPN: 7100100361
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007084952
3M ID: 80610219638
5 Digit UPC: 8495
$1,104.92 ($0.61 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.

Features

  • FLAME-RETARDANT TUBING: For applications up to 600V (clear is not flame retardant)
  • KEY SPECIFICATIONS: UL Listed, File E-39100, SAE AS23053/5, Class 1 (all colors), Class 2 (clear), CSA Certified, and RoHS 2011/65/EU Compliant
  • A VARIETY OF APPLICATIONS: Offers a 2:1 shrink-fit ratio and serves as protection in wire-harnessing, split-resistance covering, wire marking, wire bundling, and component packaging
  • FOR DEMANDING CONDITIONS: Performs at an operating temperature up to 275 °F (135 °C)
  • HIGH-STRENGTH PROTECTION: Balances electrical, physical, and chemical properties for various industrial and military applications
Spec Sheet



Downloads

Specifications

Shelf Life3650
Country of OriginUnited States
Maximum Operating Temperature (Fahrenheit) UOMDegree
UL File NumberE-39100
Operating Temperature (Celsius)-55 to 135 Degrees Celsius
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMft
Adhesive MaterialNone
Flame RetardantYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio2:1
Tubing TypeSingle (Thin) Wall
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
Elongation UOM%
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Metric)9.53
Inner Diameter Before Shrink (Imperial)0.375
Heat Shrink TypeSingle-Wall Polyolefin Heat Shrink Tubing
Overall Length (Imperial)200.0
Minimum Expanded Tubing I. D. UOMin
Product ColorYellow
Maximum Operating Temperature (Fahrenheit)275.0
ApplicationElectrical Insulation; High-tenacity and chemically resistant tubing
Inner Diameter After Shrink (Metric)4.75
Inner Diameter After Shrink (Imperial)0.187
Mil SpecAMS-DTL-23053/5, Class 1
Inner Diameter After Shrink (Imperial) UOMin
Non-CorrosiveYes
Minimum Expanded Tubing I. D.3.0
