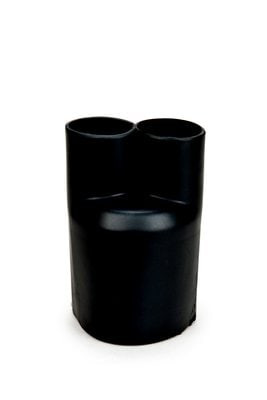

3M™ Heat Shrinkable Cable Breakout Boot HDBB-205-1-250: Black, 2-way outlet, 1/case - 7000145519

SKU: 7000145519
MPN: 7000145519
For an accurate lead time please contact us
UPC: 00054007587934
3M ID: 80610677512
5 Digit UPC: 58793
$28.26 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Provides maximum electrical and mechanical protection
  • Semi-rigid, flame-retardant polyolefin construction
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Internal coating of adhesive offers reliable environmental sealing
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Operating Temperature (Celsius)-30 up to +135°C
Outer Diameter Before Shrink (Imperial) UOMin
Minimum Operating Temperature (Celsius)-30.0
Cable ShieldingConcentric Neutral (CN)
Minimum Operating Temperature (Celsius) UOMDegree
Breakout BootYes
Product Series5450 Series
Inner Diameter After Shrink (Imperial)0.11
Outer Diameter After Shrink (Metric) UOMmm
Outer Diameter After Shrink (Imperial) UOMin
Outlet Style2-Way
Outer Diameter Before Shrink (Imperial)0.8
Conductor Legs Recovered UOMin
MaterialPolyolefin
Outer Diameter After Shrink (Metric)9.4
Transition Type1-2 Breakout
Outer Diameter Before Shrink (Metric) UOMin
Inner Diameter After Shrink (Imperial) UOMin
Shrink TypeHeat Shrink
Product TechnologyMolded Rubber
UV ResistantYes
Cable End Recovered UOMin
Conductor Legs Expanded UOMin
Cable End Recovered0.37
Voltage1 kV
Dielectric Strength (V/mil)10 kV / mm
Maximum Operating Temperature (Celsius)135.0
Voltage ApplicationLow Voltage
Outer Diameter After Shrink (Imperial)0.37
Product ColorBlack
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric) UOMmm
Flame RetardantYes
Maximum Operating Temperature (Celsius) UOMDegree
Inner Diameter After Shrink (Metric)2.8
Inner Diameter Before Shrink (Metric)8.4
Cable End Expanded UOMin
Cable TypeCable with plastic and rubber insulation
Inner Diameter Before Shrink (Imperial) UOMin
Bonding MethodPressure
Outer Diameter Before Shrink (Metric)20.3
ModelCold-shrink
Indoor/OutdoorBoth
Minimum Shrink Temperature (Celsius)120.0
Product TypeCable & Wire Accessory
Units per Case1.0
Heat Shrink TypeHeat Shrink Molded Shapes
Number of Outlets2.0
Conductor Legs Recovered0.11
Inner Diameter Before Shrink (Metric) UOMmm
Conductor Legs Expanded0.33
Cable End Expanded0.8
Inner Diameter Before Shrink (Imperial)0.33
