3M Products & Supplies

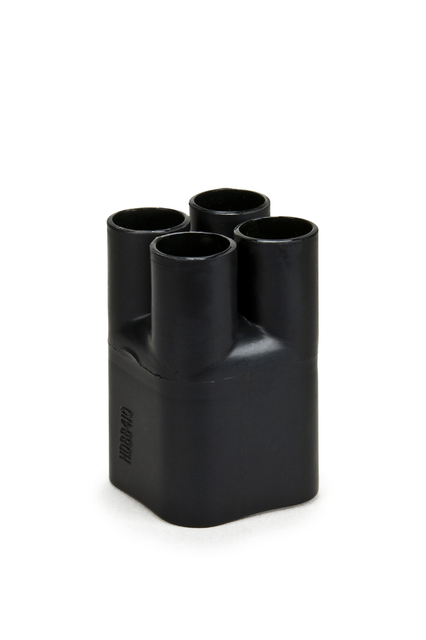

3M™ Heat Shrinkable Cable Breakout Boot HDBB-425-1-250, black, 4-way outlet, 1/case - 7000132508

SKU: 7000132508
MPN: 7000132508
For an accurate lead time please contact us
UPC: 00054007587972
3M ID: 80610677553
5 Digit UPC: 58797
$56.88 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Ensures excellent insulation and void-free sealing of cable breakouts
  • RoHS 2011/65/EU Compliant
  • Internal coating of adhesive offers reliable environmental sealing
  • Provides maximum electrical and mechanical protection
  • Semi-rigid, flame-retardant polyolefin construction
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Operating Temperature (Celsius)-30 up to +135°C
Dielectric Strength (V/mil)10 kV / mm
Breakout BootYes
Cable TypeCable with plastic and rubber insulation
Outer Diameter After Shrink (Imperial)1.4
Outer Diameter After Shrink (Imperial) UOMin
Outer Diameter Before Shrink (Imperial) UOMin
Conductor Legs Recovered UOMin
Conductor Legs Expanded UOMin
Cable End Expanded2.65
Shrink TypeHeat Shrink
Cable End Recovered1.4
Heat Shrink TypeHeat Shrink Molded Shapes
Inner Diameter After Shrink (Metric) UOMmm
Outer Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)30.5
Outer Diameter Before Shrink (Imperial)2.65
Maximum Operating Temperature (Celsius)135.0
Cable ShieldingConcentric Neutral (CN)
MaterialPolyolefin
Voltage1 kV
Flame RetardantYes
Product TechnologyMolded Rubber
Maximum Operating Temperature (Celsius) UOMDegree
Voltage ApplicationLow Voltage
Outer Diameter After Shrink (Metric)35.6
Outer Diameter Before Shrink (Metric)67.3
Inner Diameter Before Shrink (Imperial) UOMin
Conductor Legs Recovered0.53
Indoor/OutdoorBoth
Bonding MethodPressure
Number of Outlets4.0
Minimum Shrink Temperature (Celsius)120.0
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case1.0
Outlet Style4-Way
ModelCold-shrink
Inner Diameter After Shrink (Metric)13.5
Cable End Recovered UOMin
Product Series5450 Series
Minimum Operating Temperature (Celsius)-30.0
Cable End Expanded UOMin
Inner Diameter Before Shrink (Imperial)1.2
Inner Diameter After Shrink (Imperial) UOMin
Conductor Legs Expanded1.2
Outer Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial)0.53
UV ResistantYes
Product ColorBlack
Inner Diameter Before Shrink (Metric) UOMmm
Product TypeCable & Wire Accessory
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
