3M Products & Supplies

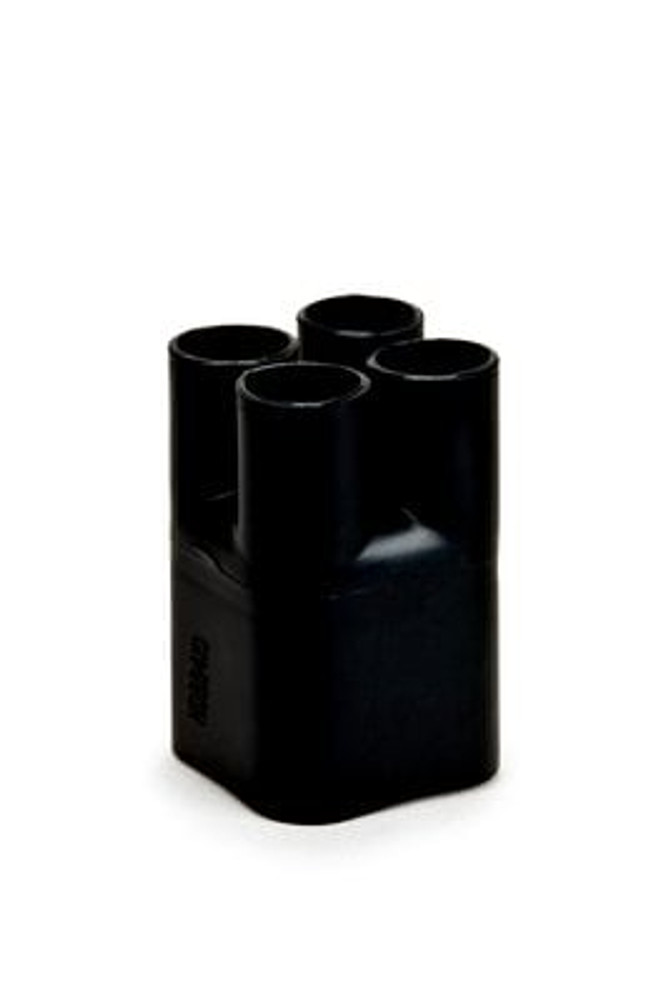

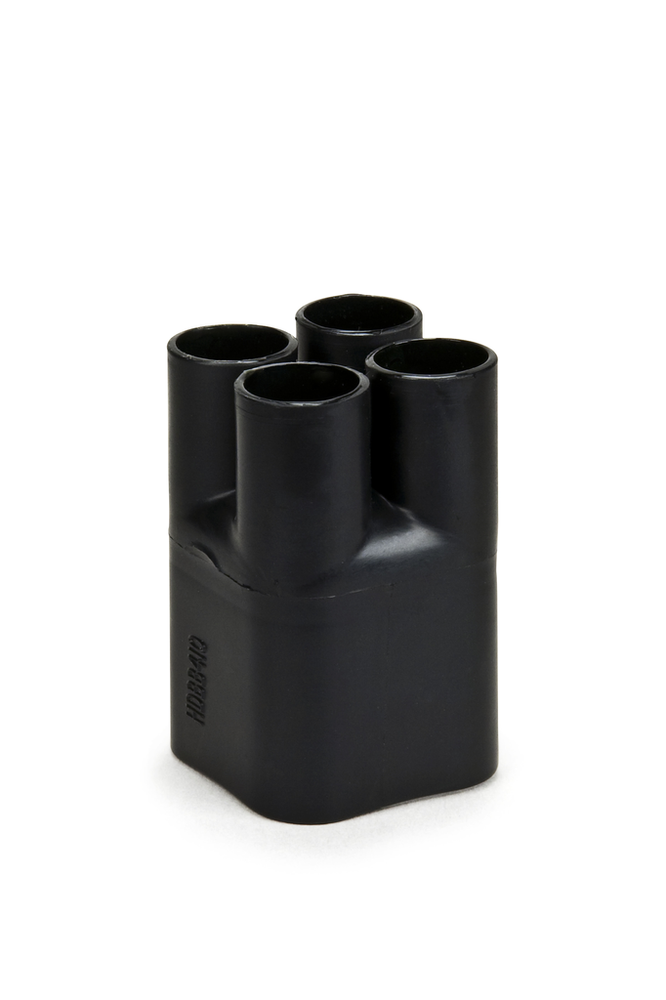

3M™ Heat Shrinkable Cable Breakout Boot HDBB-430-1-250, black, 4-way outlet, 1/case - 7000132509

SKU: 7000132509
MPN: 7000132509
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007587989
3M ID: 80610677561
5 Digit UPC: 58798
$116.79 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • RoHS 2011/65/EU Compliant
  • Semi-rigid, flame-retardant polyolefin construction
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Internal coating of adhesive offers reliable environmental sealing
  • Provides maximum electrical and mechanical protection
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Cable End Expanded5.25
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Conductor Legs Recovered0.55
Outer Diameter After Shrink (Metric)76.2
Outer Diameter Before Shrink (Metric)133.4
Maximum Operating Temperature (Celsius)135.0
Dielectric Strength (V/mil)10 kV / mm
Outlet Style4-Way
Product TechnologyMolded Rubber
Cable End Expanded UOMin
Cable End Recovered UOMin
Indoor/OutdoorBoth
Bonding MethodPressure
Inner Diameter After Shrink (Metric) UOMmm
Breakout BootYes
Number of Outlets4.0
Cable TypeCable with plastic and rubber insulation
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Heat Shrink TypeHeat Shrink Molded Shapes
Inner Diameter After Shrink (Imperial)0.55
Minimum Shrink Temperature (Celsius)120.0
Product Series5450 Series
Inner Diameter After Shrink (Imperial) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Conductor Legs Expanded UOMin
Outer Diameter Before Shrink (Imperial) UOMin
Cable End Recovered3.0
Inner Diameter Before Shrink (Metric)34.33
Shrink TypeHeat Shrink
Inner Diameter Before Shrink (Imperial)1.35
Minimum Operating Temperature (Celsius)-30.0
Conductor Legs Expanded1.35
Conductor Legs Recovered UOMin
Inner Diameter After Shrink (Metric)14.0
Flame RetardantYes
Units per Case1.0
UV ResistantYes
Product ColorBlack
Outer Diameter After Shrink (Imperial) UOMin
Outer Diameter Before Shrink (Imperial)5.25
Product TypeCable & Wire Accessory
Outer Diameter Before Shrink (Metric) UOMmm
Cable ShieldingConcentric Neutral (CN)
Operating Temperature (Celsius)-30 up to +135°C
Voltage1 kV
Outer Diameter After Shrink (Imperial)3.0
Maximum Operating Temperature (Celsius) UOMDegree
ModelCold-shrink
Voltage ApplicationLow Voltage
Outer Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial) UOMin
