3M Products & Supplies

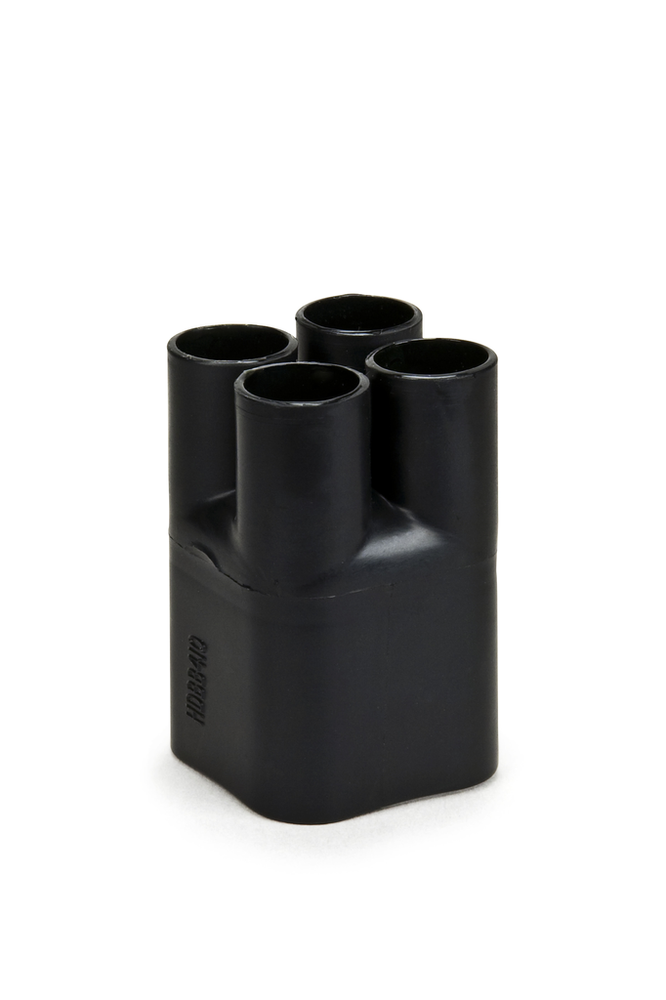

3M™ Heat Shrinkable Cable Breakout Boot HDBB-410-1-250: black, 4-way outlet, 1/case - 7000132581

SKU: 7000132581
MPN: 7000132581
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135359990
3M ID: 80610767065
5 Digit UPC: 35999
$37.31 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Semi-rigid, flame-retardant polyolefin construction
  • Internal coating of adhesive offers reliable environmental sealing
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Provides maximum electrical and mechanical protection
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Outer Diameter Before Shrink (Imperial)1.25
Cable End Recovered0.8
Product Series5450 Series
Outer Diameter After Shrink (Imperial)0.8
MaterialPolyolefin
Maximum Operating Temperature (Celsius)135.0
Product TechnologyMolded Rubber
Voltage1 kV
Inner Diameter Before Shrink (Imperial) UOMin
Shrink TypeHeat Shrink
Bonding MethodPressure
Cable End Expanded UOMin
Cable TypeCable with plastic and rubber insulation
Conductor Legs Expanded UOMin
Breakout BootYes
Conductor Legs Expanded0.5
ModelCold-shrink
Cable ShieldingConcentric Neutral (CN)
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)12.7
UV ResistantYes
Indoor/OutdoorBoth
Minimum Operating Temperature (Celsius)-30.0
Outer Diameter After Shrink (Metric)20.3
Minimum Operating Temperature (Celsius) UOMDegree
Outer Diameter Before Shrink (Metric) UOMmm
Outer Diameter Before Shrink (Imperial) UOMin
Outer Diameter Before Shrink (Metric)31.8
Inner Diameter Before Shrink (Imperial)0.5
Heat Shrink TypeHeat Shrink Molded Shapes
Number of Outlets4.0
Outlet Style4-Way
Units per Case1.0
Inner Diameter After Shrink (Imperial) UOMin
Product TypeCable & Wire Accessory
Voltage ApplicationLow Voltage
Cable End Recovered UOMin
Product ColorBlack
Conductor Legs Recovered UOMin
Operating Temperature (Celsius)-30 up to +135°C
Cable End Expanded1.25
Dielectric Strength (V/mil)10 kV / mm
Inner Diameter After Shrink (Metric)4.8
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Outer Diameter After Shrink (Metric) UOMmm
Minimum Shrink Temperature (Celsius)120.0
Flame RetardantYes
Inner Diameter After Shrink (Imperial)0.19
Outer Diameter After Shrink (Imperial) UOMin
Conductor Legs Recovered0.19
