3M Products & Supplies

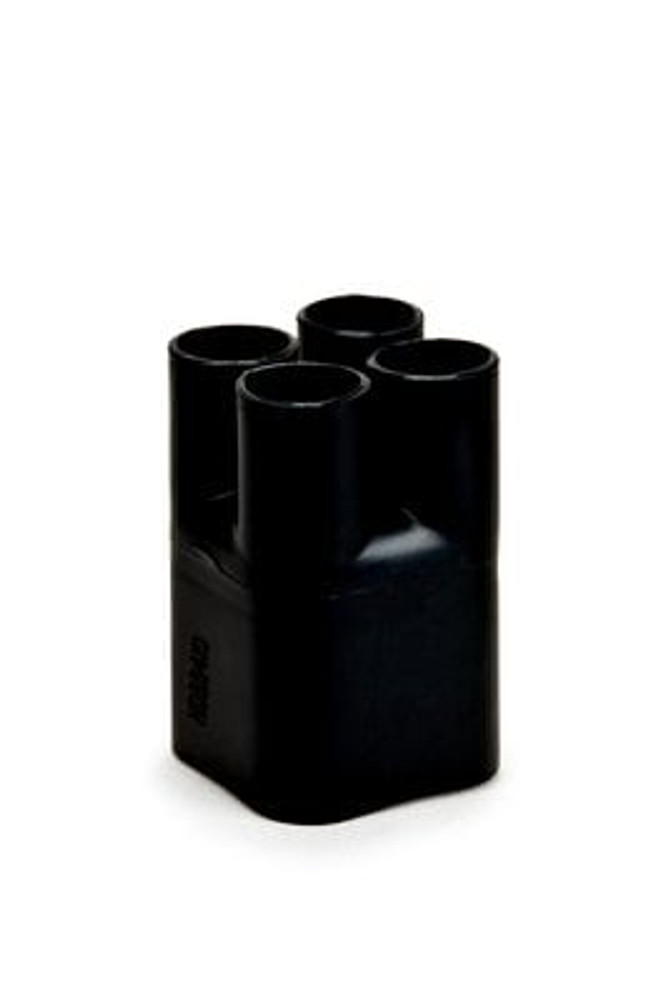

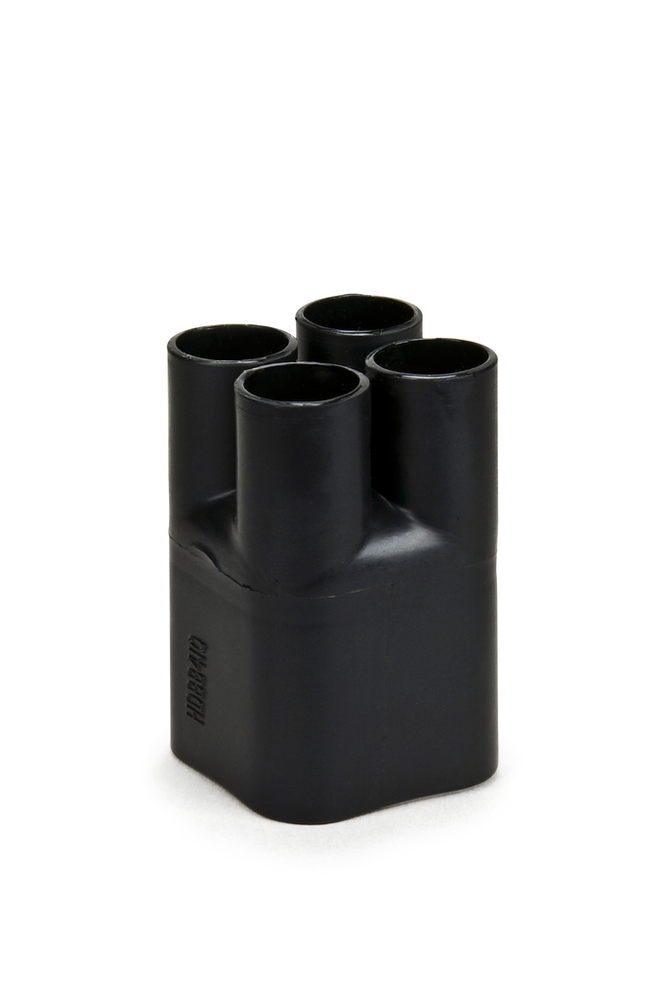

3M™ Heat Shrinkable Cable Breakout Boot HDBB-415-1-250: black, 4-way outlet, 1/case - 7000132516

SKU: 7000132516
MPN: 7000132516
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007588559
3M ID: 80610678122
5 Digit UPC: 58855
$44.61 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Provides maximum electrical and mechanical protection
  • RoHS 2011/65/EU Compliant
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Internal coating of adhesive offers reliable environmental sealing
  • Semi-rigid, flame-retardant polyolefin construction
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Dielectric Strength (V/mil)10 kV / mm
Minimum Operating Temperature (Celsius)-30.0
Cable End Recovered0.98
Conductor Legs Expanded UOMin
Minimum Shrink Temperature (Celsius)120.0
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature (Celsius)-30 up to +135°C
Indoor/OutdoorBoth
Cable End Expanded1.75
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Bonding MethodPressure
Outer Diameter After Shrink (Metric)24.9
UV ResistantYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Outer Diameter After Shrink (Imperial)0.98
Product TechnologyMolded Rubber
Minimum Operating Temperature (Celsius) UOMDegree
Breakout BootYes
Conductor Legs Expanded0.79
Outer Diameter After Shrink (Imperial) UOMin
Voltage1 kV
Voltage ApplicationLow Voltage
Cable End Recovered UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Outer Diameter Before Shrink (Metric)44.5
MaterialPolyolefin
Product ColorBlack
Inner Diameter After Shrink (Imperial)0.28
Shrink TypeHeat Shrink
Outer Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)20.1
Outer Diameter Before Shrink (Imperial)1.75
Number of Outlets4.0
Outer Diameter Before Shrink (Metric) UOMmm
Outlet Style4-Way
Conductor Legs Recovered0.28
Heat Shrink TypeHeat Shrink Molded Shapes
Maximum Operating Temperature (Celsius)135.0
Conductor Legs Recovered UOMin
Inner Diameter Before Shrink (Imperial)0.79
Inner Diameter After Shrink (Imperial) UOMin
Flame RetardantYes
Outer Diameter After Shrink (Metric) UOMmm
Cable End Expanded UOMin
Cable ShieldingConcentric Neutral (CN)
Product TypeCable & Wire Accessory
Cable TypeCable with plastic and rubber insulation
Inner Diameter After Shrink (Metric)7.1
Product Series5450 Series
ModelCold-shrink
Units per Case1.0
