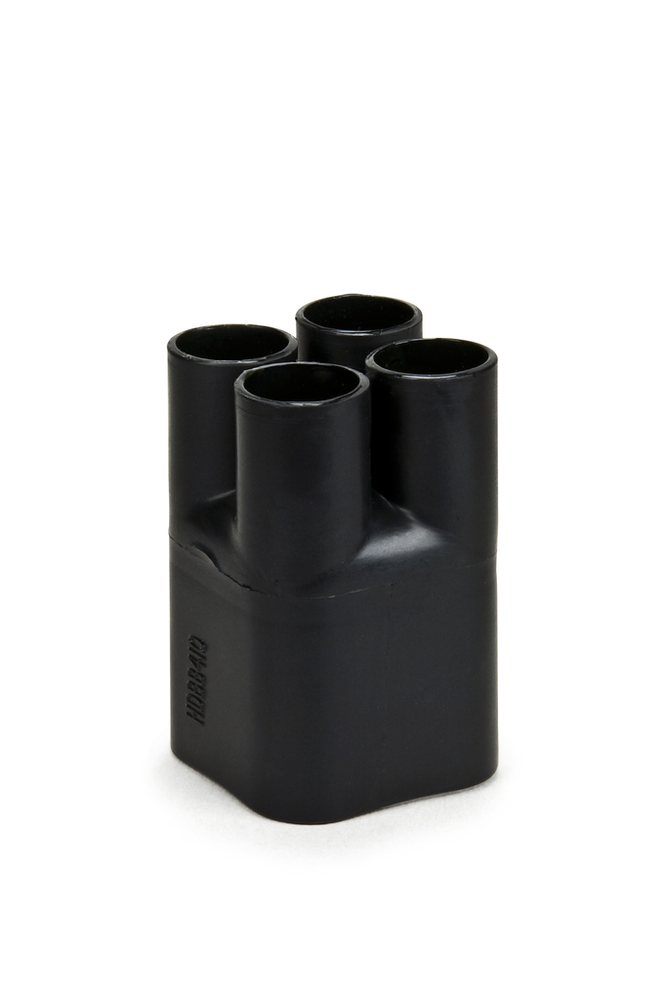

3M™ Heat Shrinkable Cable Breakout Boot HDBB-420-1-250: Black, 4-way outlet, 1/case - 7000132582

SKU: 7000132582
MPN: 7000132582
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135360002
3M ID: 80610767073
5 Digit UPC: 36000
$53.67 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Internal coating of adhesive offers reliable environmental sealing
  • Semi-rigid, flame-retardant polyolefin construction
  • RoHS 2011/65/EU Compliant
  • Provides maximum electrical and mechanical protection
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Outer Diameter Before Shrink (Imperial) UOMin
Outer Diameter After Shrink (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Outer Diameter After Shrink (Metric) UOMmm
Shrink TypeHeat Shrink
Breakout BootYes
Bonding MethodPressure
Minimum Operating Temperature (Celsius)-30.0
Outer Diameter Before Shrink (Imperial)2.35
Cable TypeCable with plastic and rubber insulation
Outer Diameter Before Shrink (Metric)59.7
ModelCold-shrink
Units per Case1.0
Cable ShieldingConcentric Neutral (CN)
Conductor Legs Recovered0.35
Product ColorBlack
UV ResistantYes
Number of Outlets4.0
Inner Diameter Before Shrink (Imperial) UOMin
Product TypeCable & Wire Accessory
Inner Diameter After Shrink (Imperial) UOMin
Outlet Style4-Way
Conductor Legs Recovered UOMin
Cable End Recovered UOMin
Operating Temperature (Celsius)-30 up to +135°C
Voltage1 kV
Inner Diameter Before Shrink (Metric)25.4
Cable End Expanded2.35
Dielectric Strength (V/mil)10 kV / mm
Outer Diameter After Shrink (Metric)25.4
Cable End Expanded UOMin
Product Series5450 Series
Outer Diameter Before Shrink (Metric) UOMmm
Flame RetardantYes
Product TechnologyMolded Rubber
Conductor Legs Expanded UOMin
Outer Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)135.0
Minimum Operating Temperature (Celsius) UOMDegree
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Imperial)1.0
Indoor/OutdoorBoth
Inner Diameter After Shrink (Metric)8.9
Heat Shrink TypeHeat Shrink Molded Shapes
Voltage ApplicationLow Voltage
Conductor Legs Expanded1.0
Minimum Shrink Temperature (Celsius)120.0
Cable End Recovered1.0
Inner Diameter After Shrink (Imperial)0.35
MaterialPolyolefin
