3M Products & Supplies

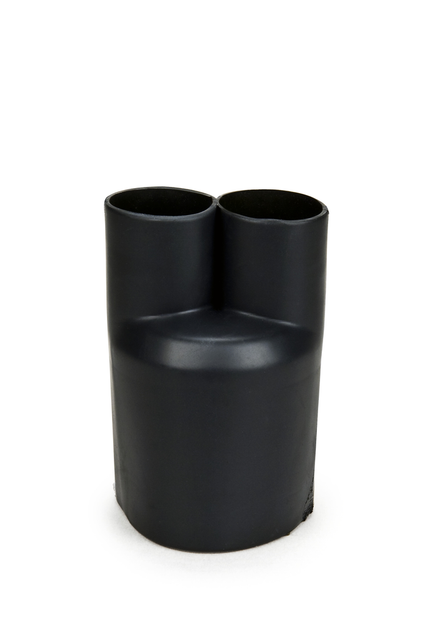

3M™ Heat Shrinkable Cable Breakout Boot HDBB-230-1-250, black, 2-way outlet, 1/case - 7010293610

SKU: 7010293610
MPN: 7010293610
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135359938
3M ID: 80610767008
5 Digit UPC: 35993
$86.08 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Internal coating of adhesive offers reliable environmental sealing
  • RoHS 2011/65/EU Compliant
  • Semi-rigid, flame-retardant polyolefin construction
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Provides maximum electrical and mechanical protection
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Outer Diameter Before Shrink (Metric) UOMmm
Cable End Expanded3.0
Conductor Legs Expanded UOMin
Cable TypeCable with plastic and rubber insulation
Inner Diameter After Shrink (Metric)12.7
Shrink TypeHeat Shrink
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Voltage1 kV
Outer Diameter Before Shrink (Metric)76.2
Inner Diameter Before Shrink (Metric)36.8
Cable ShieldingConcentric Neutral (CN)
Inner Diameter Before Shrink (Metric) UOMmm
Minimum Operating Temperature (Celsius)-30.0
Dielectric Strength (V/mil)10 kV / mm
Minimum Shrink Temperature (Celsius)120.0
Outer Diameter After Shrink (Imperial) UOMin
Outer Diameter Before Shrink (Imperial)3.0
Inner Diameter After Shrink (Imperial) UOMin
Indoor/OutdoorBoth
Number of Outlets2.0
Conductor Legs Expanded1.45
Conductor Legs Recovered UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Outlet Style2-Way
Breakout BootYes
MaterialPolyolefin
Product Series5450 Series
Inner Diameter After Shrink (Imperial)0.5
Heat Shrink TypeHeat Shrink Molded Shapes
Transition Type1-2 Breakout
Outer Diameter After Shrink (Imperial)1.5
Flame RetardantYes
Minimum Operating Temperature (Celsius) UOMDegree
ModelCold-shrink
Cable End Expanded UOMin
Outer Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric) UOMmm
Outer Diameter Before Shrink (Imperial) UOMin
Cable End Recovered UOMin
Cable End Recovered1.9
Conductor Legs Recovered0.5
Bonding MethodPressure
Units per Case1.0
UV ResistantYes
Inner Diameter Before Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius)135.0
Voltage ApplicationLow Voltage
Product TechnologyMolded Rubber
Product ColorBlack
Operating Temperature (Celsius)-30 up to +135°C
Outer Diameter After Shrink (Metric)38.1
Inner Diameter Before Shrink (Imperial)1.45
