3M Products & Supplies

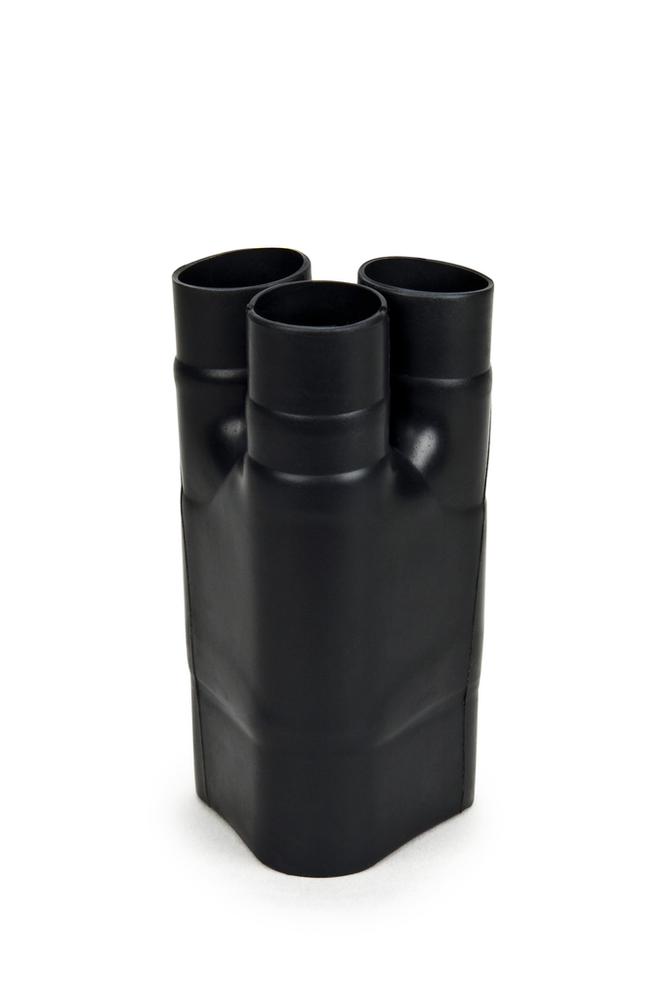

3M™ Heat Shrinkable Cable Breakout Boot HDBB-321-1-250: black, 3-way outlet, 1/case - 7000132578

SKU: 7000132578
MPN: 7000132578
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135359969
3M ID: 80610767032
5 Digit UPC: 35996
$37.82 each
Hurry up! Current stock:

Product Description

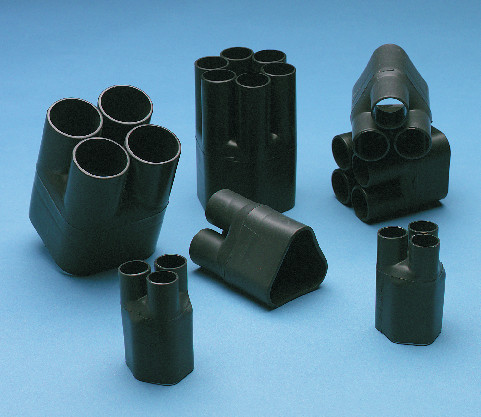

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • RoHS 2011/65/EU Compliant
  • Provides maximum electrical and mechanical protection
  • Semi-rigid, flame-retardant polyolefin construction
  • Internal coating of adhesive offers reliable environmental sealing
  • Ensures excellent insulation and void-free sealing of cable breakouts
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Dielectric Strength (V/mil)10 kV / mm
Breakout BootYes
Product Series5450 Series
Conductor Legs Recovered UOMin
Inner Diameter After Shrink (Metric) UOMmm
Cable End Expanded UOMin
Minimum Operating Temperature (Celsius)-30.0
Shrink TypeHeat Shrink
Heat Shrink TypeHeat Shrink Molded Shapes
Outer Diameter After Shrink (Imperial)0.69
Units per Case1.0
Bonding MethodPressure
Inner Diameter Before Shrink (Imperial) UOMin
Product TechnologyMolded Rubber
Product ColorBlack
Cable End Recovered0.69
Minimum Shrink Temperature (Celsius)120.0
UV ResistantYes
Operating Temperature (Celsius)-30 up to +135°C
Indoor/OutdoorBoth
ModelCold-shrink
Maximum Operating Temperature (Celsius)135.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Number of Outlets3.0
Flame RetardantYes
Outer Diameter After Shrink (Metric) UOMmm
Outer Diameter Before Shrink (Metric) UOMmm
Conductor Legs Expanded0.65
Maximum Operating Temperature (Celsius) UOMDegree
Product TypeCable & Wire Accessory
Outer Diameter After Shrink (Metric)17.5
Conductor Legs Recovered0.18
Voltage1 kV
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)16.5
Inner Diameter Before Shrink (Imperial)0.65
Outer Diameter Before Shrink (Imperial) UOMin
Cable End Recovered UOMin
Cable End Expanded1.5
Outer Diameter After Shrink (Imperial) UOMin
Cable TypeCable with plastic and rubber insulation
Outlet Style3-Way
MaterialPolyolefin
Inner Diameter Before Shrink (Metric) UOMmm
Conductor Legs Expanded UOMin
Outer Diameter Before Shrink (Metric)38.1
Inner Diameter After Shrink (Metric)4.6
Outer Diameter Before Shrink (Imperial)1.5
Cable ShieldingConcentric Neutral (CN)
Inner Diameter After Shrink (Imperial)0.18
Voltage ApplicationLow Voltage
Minimum Operating Temperature (Celsius) UOMDegree
