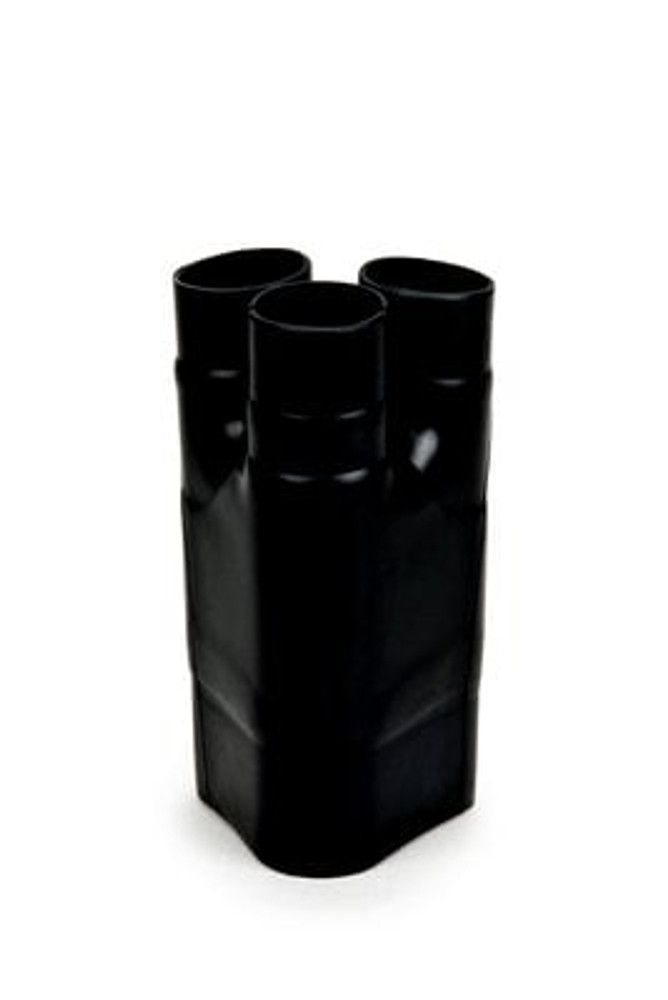

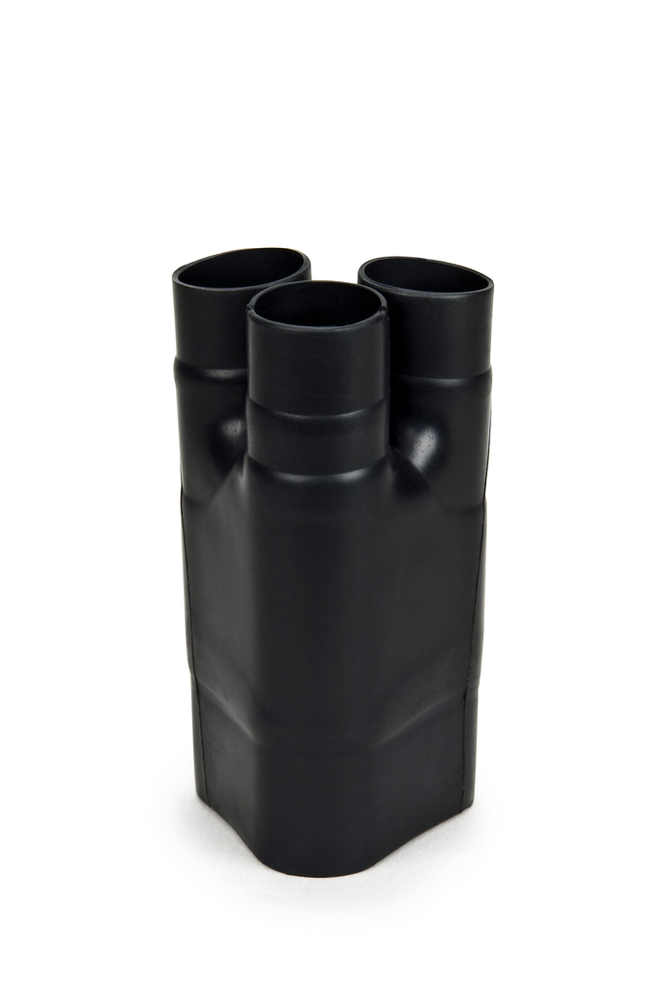

3M™ Heat Shrinkable Cable Breakout Boot HDBB-335-1-250: black, 3-way outlet, 1/case - 7000132518

SKU: 7000132518
MPN: 7000132518
For an accurate lead time please contact us
UPC: 00051135034095
3M ID: 80610693071
5 Digit UPC: 3409
$53.35 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Internal coating of adhesive offers reliable environmental sealing
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Semi-rigid, flame-retardant polyolefin construction
  • Provides maximum electrical and mechanical protection
  • RoHS 2011/65/EU Compliant
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Minimum Operating Temperature (Celsius) UOMDegree
Inner Diameter After Shrink (Metric) UOMmm
Outer Diameter After Shrink (Imperial)1.4
Heat Shrink TypeHeat Shrink Molded Shapes
Maximum Operating Temperature (Celsius)135.0
Inner Diameter After Shrink (Imperial) UOMin
Minimum Shrink Temperature (Celsius)120.0
Breakout BootYes
Cable ShieldingConcentric Neutral (CN)
Inner Diameter Before Shrink (Imperial) UOMin
Outer Diameter Before Shrink (Metric)61.0
Dielectric Strength (V/mil)10 kV / mm
ModelCold-shrink
Flame RetardantYes
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Indoor/OutdoorBoth
Maximum Operating Temperature (Celsius) UOMDegree
Cable End Expanded2.4
Voltage1 kV
Inner Diameter Before Shrink (Metric)31.8
Outer Diameter Before Shrink (Imperial)2.4
Inner Diameter After Shrink (Imperial)0.5
Inner Diameter Before Shrink (Metric) UOMmm
Product ColorBlack
Product Series5450 Series
Inner Diameter After Shrink (Metric)12.7
MaterialPolyolefin
Outer Diameter After Shrink (Metric) UOMmm
Cable End Expanded UOMin
Outer Diameter Before Shrink (Metric) UOMmm
Cable TypeCable with plastic and rubber insulation
Product TypeCable & Wire Accessory
Outlet Style3-Way
Outer Diameter After Shrink (Imperial) UOMin
Conductor Legs Recovered UOMin
Operating Temperature (Celsius)-30 up to +135°C
Number of Outlets3.0
Shrink TypeHeat Shrink
UV ResistantYes
Inner Diameter Before Shrink (Imperial)1.25
Conductor Legs Expanded1.25
Conductor Legs Expanded UOMin
Outer Diameter After Shrink (Metric)35.6
Cable End Recovered UOMin
Conductor Legs Recovered0.5
Product TechnologyMolded Rubber
Cable End Recovered1.4
Voltage ApplicationLow Voltage
Bonding MethodPressure
Minimum Operating Temperature (Celsius)-30.0
Units per Case1.0
Outer Diameter Before Shrink (Imperial) UOMin
