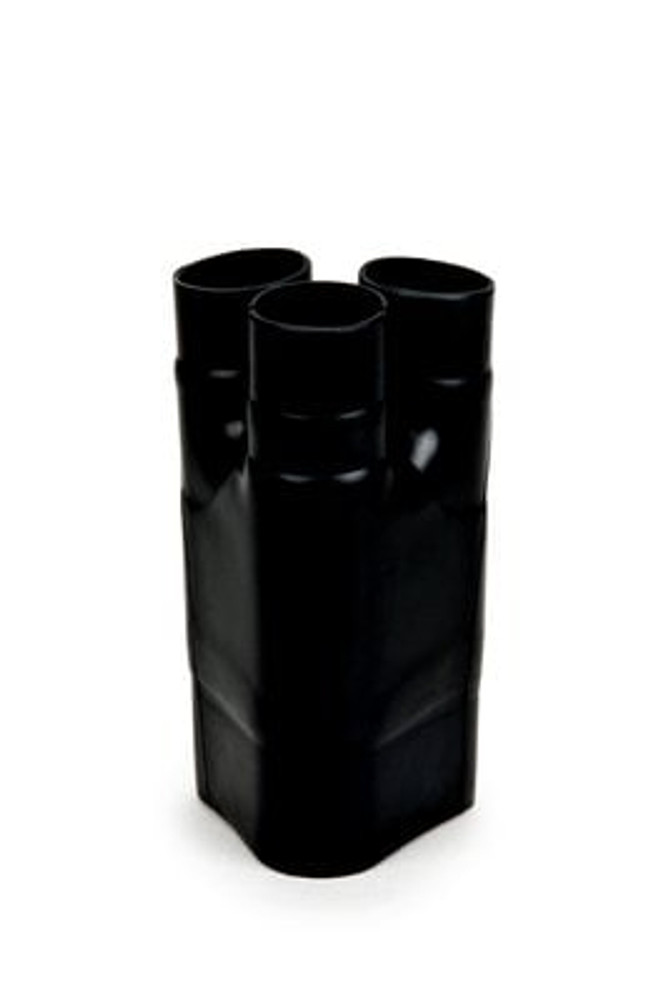

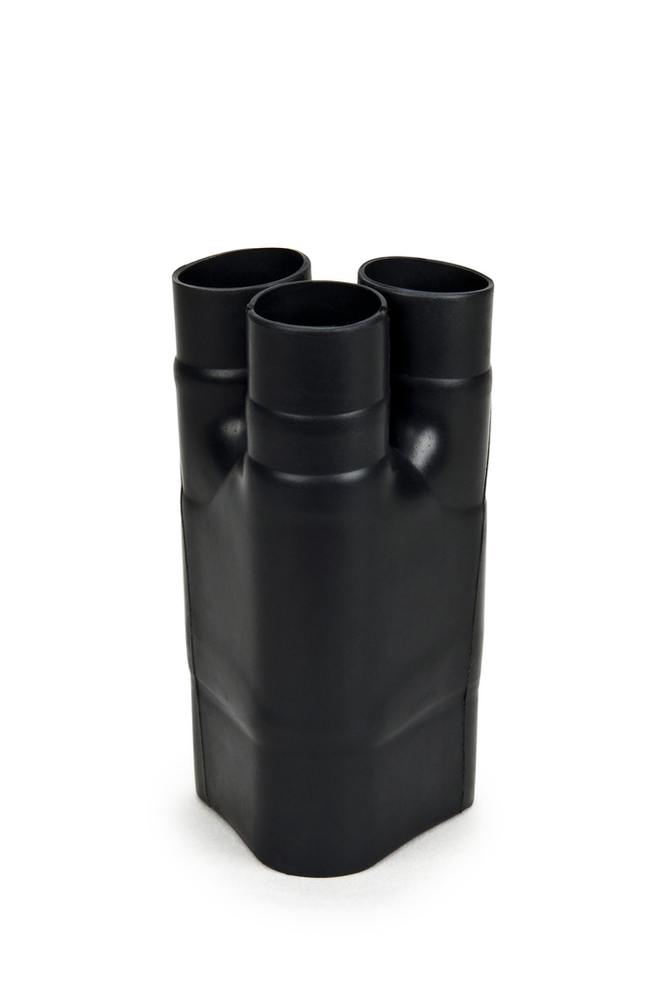

3M™ Heat Shrinkable Cable Breakout Boot HDBB-325-1-250: black, 3-way outlet, 1/case - 7000132579

SKU: 7000132579
MPN: 7000132579
For an accurate lead time please contact us
UPC: 00051135359976
3M ID: 80610767040
5 Digit UPC: 35997
$40.18 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • Semi-rigid, flame-retardant polyolefin construction
  • RoHS 2011/65/EU Compliant
  • Internal coating of adhesive offers reliable environmental sealing
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Provides maximum electrical and mechanical protection
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Product ColorBlack
Cable End Expanded1.7
Maximum Operating Temperature (Celsius) UOMDegree
Inner Diameter Before Shrink (Imperial)0.82
Inner Diameter Before Shrink (Metric)20.8
Inner Diameter After Shrink (Metric) UOMmm
Outer Diameter After Shrink (Metric)0.9
Conductor Legs Recovered UOMin
UV ResistantYes
Outlet Style3-Way
Inner Diameter Before Shrink (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Outer Diameter After Shrink (Imperial)0.9
Cable End Recovered0.9
Outer Diameter Before Shrink (Metric) UOMmm
Product TechnologyMolded Rubber
Inner Diameter Before Shrink (Metric) UOMmm
Cable End Expanded UOMin
Outer Diameter Before Shrink (Imperial) UOMin
Outer Diameter Before Shrink (Metric)43.2
Conductor Legs Expanded UOMin
Heat Shrink TypeHeat Shrink Molded Shapes
Inner Diameter After Shrink (Imperial) UOMin
Cable End Recovered UOMin
Voltage ApplicationLow Voltage
Conductor Legs Expanded0.82
Inner Diameter After Shrink (Imperial)0.3
Number of Outlets3.0
Outer Diameter After Shrink (Metric) UOMmm
Cable ShieldingConcentric Neutral (CN)
Product Series5450 Series
Outer Diameter After Shrink (Imperial) UOMin
Minimum Operating Temperature (Celsius)-30.0
Bonding MethodPressure
Maximum Operating Temperature (Celsius)135.0
Outer Diameter Before Shrink (Imperial)1.7
MaterialPolyolefin
Breakout BootYes
Product TypeCable & Wire Accessory
Voltage1 kV
Inner Diameter After Shrink (Metric)7.6
Units per Case1.0
Dielectric Strength (V/mil)10 kV / mm
Flame RetardantYes
Minimum Shrink Temperature (Celsius)120.0
Indoor/OutdoorBoth
Minimum Operating Temperature (Celsius) UOMDegree
Operating Temperature (Celsius)-30 up to +135°C
Conductor Legs Recovered0.3
Cable TypeCable with plastic and rubber insulation
Shrink TypeHeat Shrink
ModelCold-shrink
