3M Products & Supplies

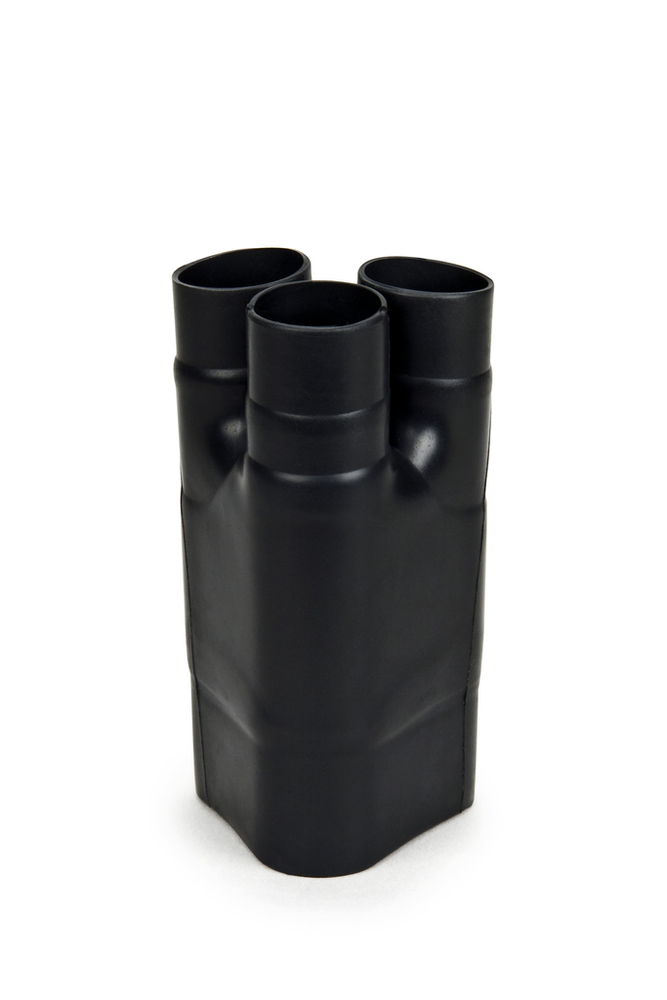

3M™ Heat Shrinkable Cable Breakout Boot HDBB-340-1-250, black, 3-way outlet, 1/case - 7000132580

SKU: 7000132580
MPN: 7000132580
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135359983
3M ID: 80610767057
5 Digit UPC: 35998
$76.01 each
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.

Features

  • RoHS 2011/65/EU Compliant
  • Internal coating of adhesive offers reliable environmental sealing
  • Semi-rigid, flame-retardant polyolefin construction
  • Ensures excellent insulation and void-free sealing of cable breakouts
  • Provides maximum electrical and mechanical protection
Spec Sheet



Downloads

Specifications

Country of OriginUnited Kingdom
Outer Diameter Before Shrink (Imperial) UOMin
Cable End Recovered2.0
Heat Shrink TypeHeat Shrink Molded Shapes
Product Series5450 Series
Outer Diameter After Shrink (Imperial)2.0
Minimum Operating Temperature (Celsius)-30.0
Outer Diameter After Shrink (Metric) UOMmm
ModelCold-shrink
Outlet Style3-Way
Product TechnologyMolded Rubber
Minimum Operating Temperature (Celsius) UOMDegree
Inner Diameter Before Shrink (Imperial)1.4
Cable TypeCable with plastic and rubber insulation
Conductor Legs Recovered0.75
Dielectric Strength (V/mil)10 kV / mm
Inner Diameter After Shrink (Metric)19.1
Indoor/OutdoorBoth
MaterialPolyolefin
Outer Diameter After Shrink (Metric)50.8
Inner Diameter Before Shrink (Metric)35.6
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Celsius) UOMDegree
Number of Outlets3.0
Shrink TypeHeat Shrink
Cable ShieldingConcentric Neutral (CN)
Outer Diameter Before Shrink (Metric)81.3
Outer Diameter Before Shrink (Imperial)3.2
Product TypeCable & Wire Accessory
Outer Diameter Before Shrink (Metric) UOMmm
Conductor Legs Expanded1.4
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Conductor Legs Expanded UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Product ColorBlack
Operating Temperature (Celsius)-30 up to +135°C
Cable End Recovered UOMin
Minimum Shrink Temperature (Celsius)120.0
Voltage1 kV
Bonding MethodPressure
Outer Diameter After Shrink (Imperial) UOMin
Units per Case1.0
Maximum Operating Temperature (Celsius)135.0
Cable End Expanded UOMin
Inner Diameter After Shrink (Imperial)0.75
Inner Diameter Before Shrink (Imperial) UOMin
Cable End Expanded3.2
UV ResistantYes
Breakout BootYes
Voltage ApplicationLow Voltage
Flame RetardantYes
Conductor Legs Recovered UOMin
Inner Diameter After Shrink (Metric) UOMmm
