3M Products & Supplies

3M™ Heavy-Wall Flame-Retardant Cable Sleeve HDT-0800-48A, Red, cable range of #8-1/0 AWG, 20/Case - 7010348868

Sold As: 20-Pack
SKU: 7010348868
MPN: 7010348868
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051135362426
3M ID: 80610769483
5 Digit UPC: 36242
$564.24 ($28.21 / Count)
Hurry up! Current stock:

Product Description

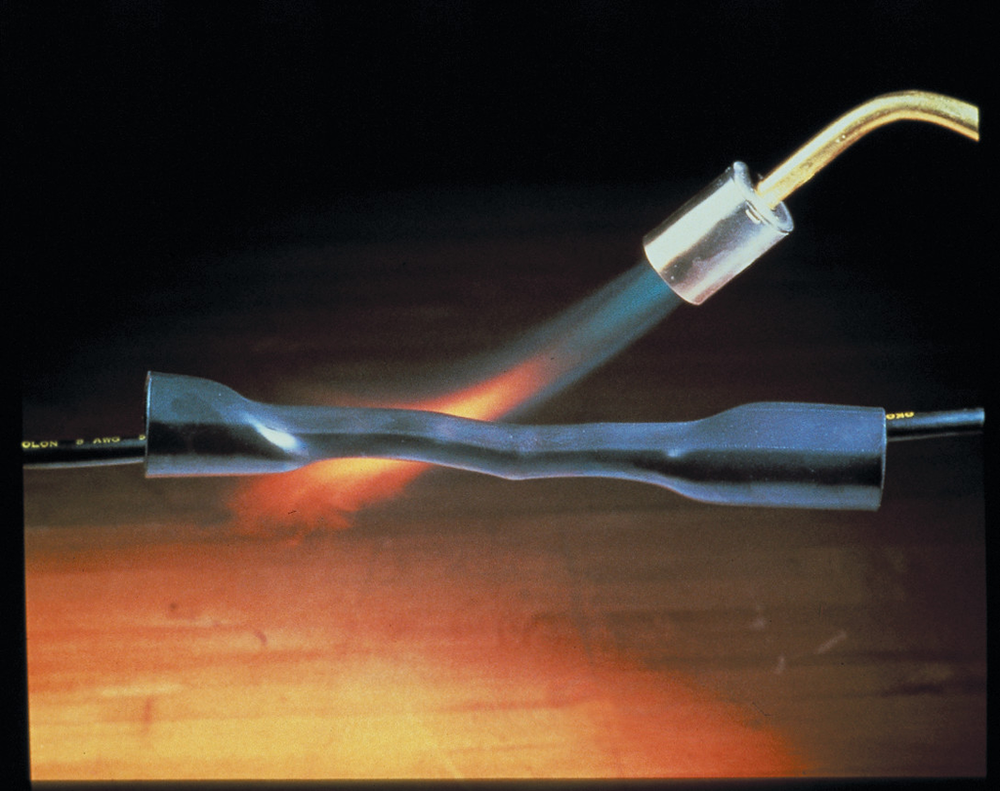

3M™ Heat Shrink Cable Sleeve HDT is a flexible, heavy wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio and offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant that provides moisture seal protection.

Features

  • Flame-retardant
  • Offers reliable performance for electrical splices, connections and terminations
  • SAE AS23053/15, Class 1 Certified and RoHS 2011/65/EU Compliant
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Made of black cross-linked polyolefin
  • Superior resistance to abrasion, corrosion and chemicals

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)48.0
Halogen FreeNo
UV ResistantYes
Splice TypeHeat Shrink
UL Bug Temperature (Celsius)125 Degrees Celsius
UL Bug Voltage600 Volt
Inner Diameter After Shrink (Imperial)0.2
Shrink Ratio2:1
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter Before Shrink (Imperial)0.8
Inner Diameter Before Shrink (Metric)20.3
Product ColorRed
Inner Diameter After Shrink (Metric) UOMmm
Maximum Operating Temperature (Celsius)110.0
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Metric)5.1
ApplicationElectrical Insulation; Mechanically strong tubing
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Imperial) UOMin
UL Bug Temperature (Fahrenheit)257 Degrees Fahrenheit
