3M Products & Supplies

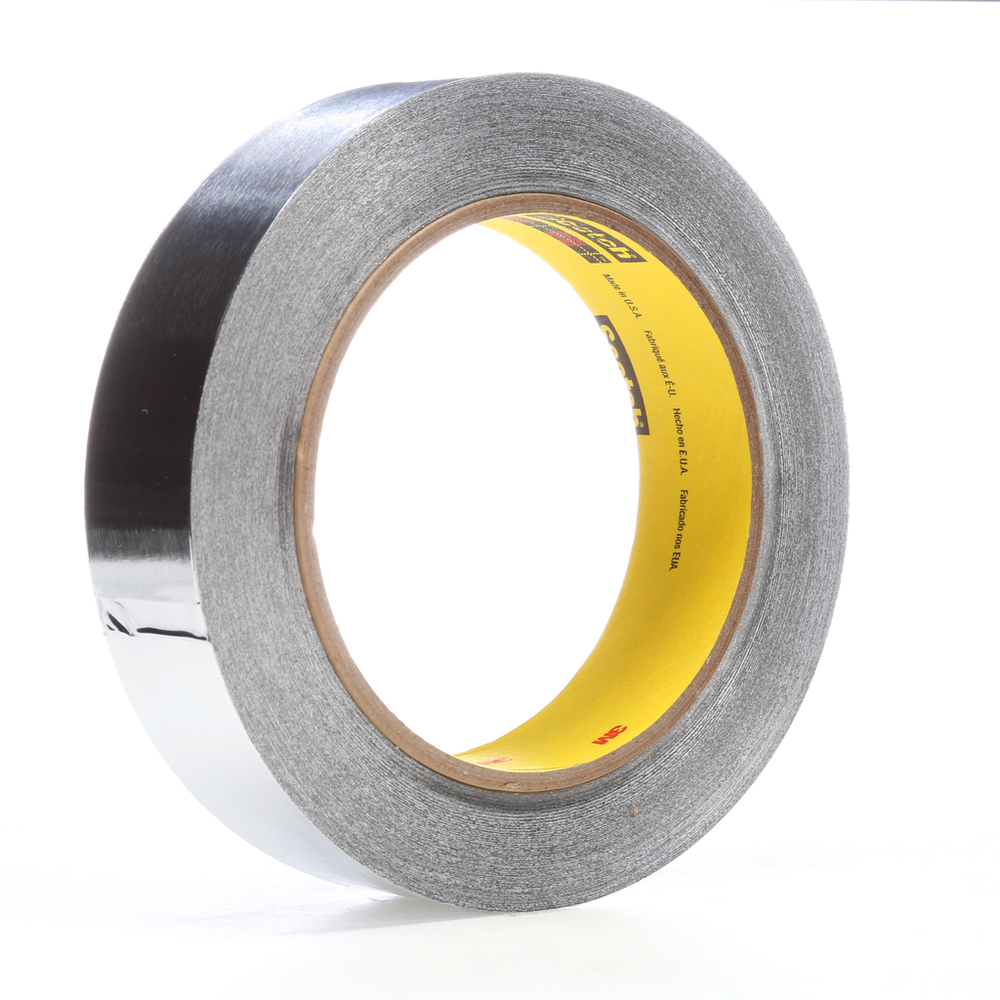

3M™ High Temperature Aluminum Foil Tape 433, Silver, 2 in x 60 yd, 3.6 mil, 5 Rolls/Case - 7100228331

Sold As: 5-Pack
SKU: 7100228331
MPN: 7100228331
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00638060407677
3M ID: 70007544979
5 Digit UPC: 40767
$1,333.32 ($266.66 / Count)
Hurry up! Current stock:

Product Description

For heat shielding applications such as wrapping over and along thermal insulation, use 3M™ High Temperature Aluminum Foil Tape 433. This dead soft aluminum foil tape is coated with a clear silicone pressure sensitive adhesive that bonds well to a variety of surfaces and excels in high temperature applications, where other adhesive tapes may fail.

Features

  • Thermally conductive tape helps dissipate heat to protect temperature sensitive materials
  • Can be used to improve heating and cooling efficiency
  • Can withstand limited exposure up to 600ºF/316ºC for heat shielding applications
  • Flame resistant – meets requirements of F.A.R. 25.853(a)
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • UL Recognized component (file QQQW2.MH122798)
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Maximum Operating Temperature (Celsius)316.0
ApplicationSealing HVAC & Duct Work
Minimum Operating Temperature (Celsius)-54.0
Minimum Operating Temperature (Fahrenheit)-65.0
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Width (Metric)50.8
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorSilver
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Length (Imperial)60.0
Overall Length (Metric)54.864
Maximum Operating Temperature (Fahrenheit)600.0
Back Side Adhesive Thickness (Imperial)1.6
Backing (Carrier) Thickness (Metric)0.05
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Specifications MetFAR 25.853(a)
Backing (Carrier) MaterialAluminum Foil
Total Tape Thickness without Liner (Metric)0.09
Backing MaterialAluminum Foil
Total Tape Thickness without Liner (Imperial)3.6
Adhesive TypeSilicone
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Primary LinerEasy Release Film
Tensile Strength (Metric) UOMN/100mm
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Elongation at Break3.5
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)2.0
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)20.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Imperial)2.0
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Metric)35.0
