3M Products & Supplies

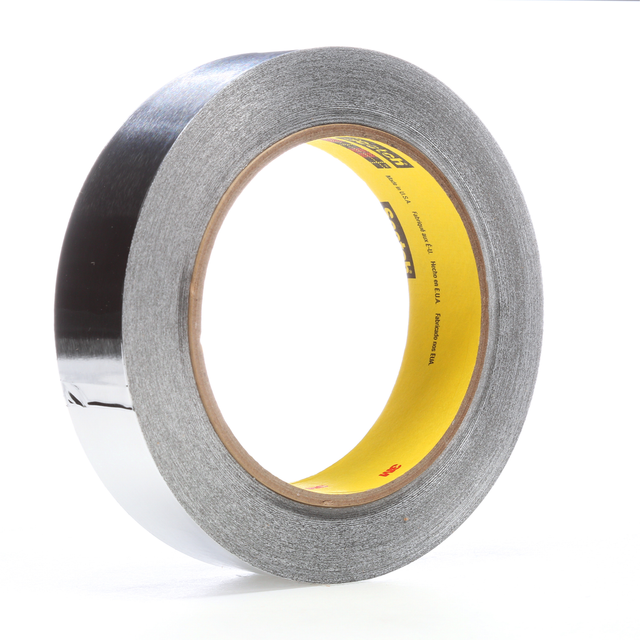

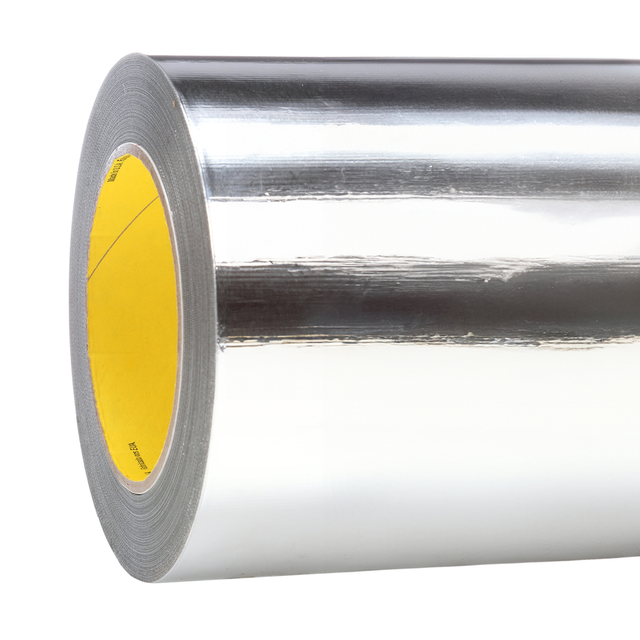

3M™ High Temperature Aluminum Foil Tape 433, Silver, 23 in x 180 yd, 3.6 Mil, 1 Roll/Case - 7010374399

SKU: 7010374399
MPN: 7010374399
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138949211
3M ID: 70006383809
5 Digit UPC: 94921
$9,201.35 each
Hurry up! Current stock:

Product Description

For heat shielding applications such as wrapping over and along thermal insulation, use 3M™ High Temperature Aluminum Foil Tape 433. This dead soft aluminum foil tape is coated with a clear silicone pressure sensitive adhesive that bonds well to a variety of surfaces and excels in high temperature applications, where other adhesive tapes may fail.

Features

  • Flame resistant – meets requirements of F.A.R. 25.853(a)
  • Can withstand limited exposure up to 600ºF/316ºC for heat shielding applications
  • Thermally conductive tape helps dissipate heat to protect temperature sensitive materials
  • UL Recognized component (file QQQW2.MH122798)
  • Can be used to improve heating and cooling efficiency
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Overall Width (Metric)584.2
Units per Case1.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.05
Overall Length (Metric)164.59
Overall Length (Metric) UOMm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Metric)0.09
ApplicationSealing HVAC & Duct Work
Backing (Carrier) MaterialAluminum Foil
Elongation at Break3.5
Minimum Operating Temperature (Celsius)-54.0
Back Side Adhesive Thickness (Imperial)1.6
Tensile Strength (Imperial)20.0
Specifications MetFAR 25.853(a)
Total Tape Thickness without Liner (Imperial)3.6
Backing MaterialAluminum Foil
Tensile Strength (Metric)35.0
Backing (Carrier) Thickness (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Imperial)23.0
Maximum Operating Temperature (Celsius)316.0
Overall Width (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-65.0
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeSilicone
Overall Length (Imperial) UOMyd
Tensile Strength (Imperial) UOMlb/in
Product ColorSilver
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Fahrenheit)600.0
Overall Length (Imperial)180.0
Backing (Carrier) Thickness (Imperial)2.0
Backing (Carrier) Thickness (Imperial) UOMmil
Primary LinerEasy Release Film
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
