3M Products & Supplies

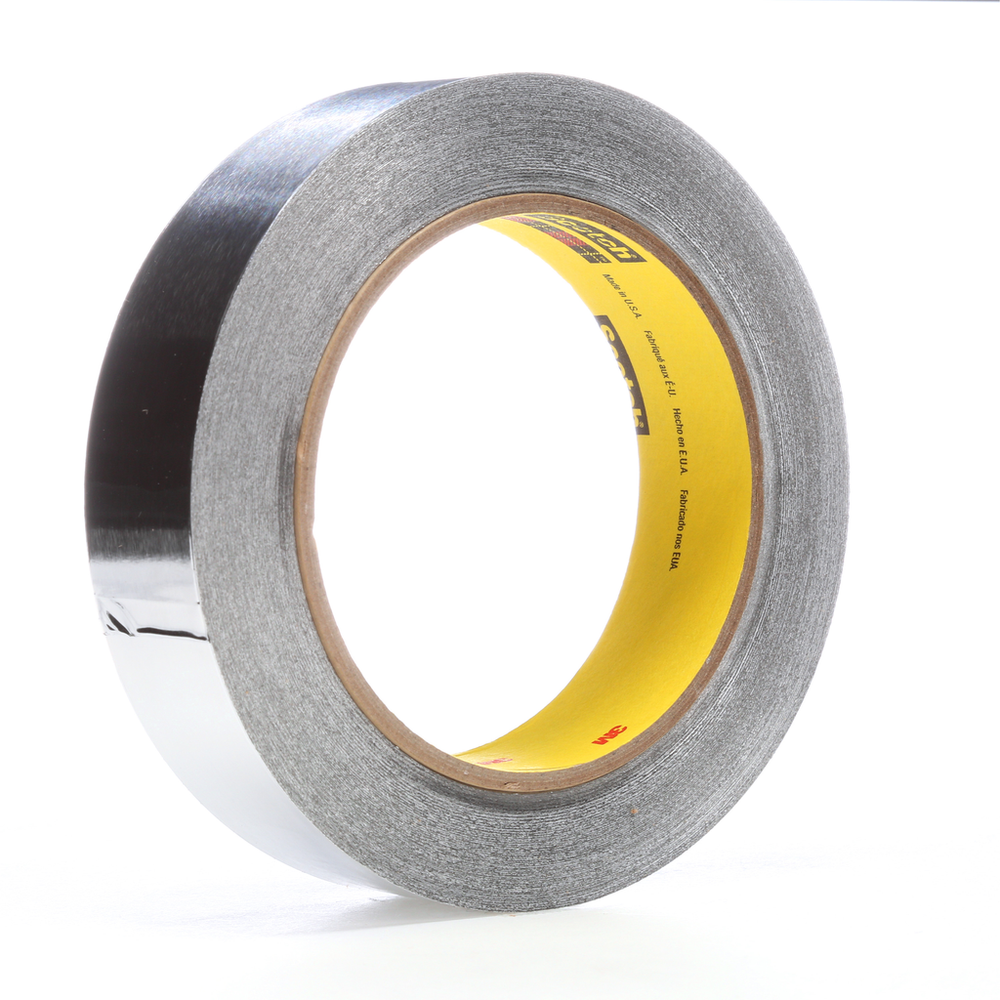

3M™ High Temperature Aluminum Foil Tape 433, Silver, 1 1/2 in x 10 yd, 3.6 mil, 24 Rolls/Case - 7010334801

Sold As: 15-Pack
SKU: 7010334801
MPN: 7010334801
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138960964
3M ID: 70006394590
5 Digit UPC: 96096
$500.16 ($33.34 / Count)
Hurry up! Current stock:

Product Description

For heat shielding applications such as wrapping over and along thermal insulation, use 3M™ High Temperature Aluminum Foil Tape 433. This dead soft aluminum foil tape is coated with a clear silicone pressure sensitive adhesive that bonds well to a variety of surfaces and excels in high temperature applications, where other adhesive tapes may fail.

Features

  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Can withstand limited exposure up to 600ºF/316ºC for heat shielding applications
  • Flame resistant – meets requirements of F.A.R. 25.853(a)
  • Can be used to improve heating and cooling efficiency
  • UL Recognized component (file QQQW2.MH122798)
  • Thermally conductive tape helps dissipate heat to protect temperature sensitive materials
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)3.6
ApplicationSealing HVAC & Duct Work
Elongation at Break3.5
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Imperial)1.6
Backing MaterialAluminum Foil
Primary LinerEasy Release Film
Minimum Operating Temperature (Celsius) UOMDegree
Total Tape Thickness without Liner (Metric)0.09
Backing (Carrier) Thickness (Metric) UOMmm
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Imperial)20.0
Back Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorSilver
Overall Width (Metric)38.1
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMm
Tensile Strength (Metric)35.0
Units per Case5.0
Backing (Carrier) Thickness (Metric)0.05
Maximum Operating Temperature (Fahrenheit)600.0
Overall Length (Metric)9.14
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)2.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Imperial)1.5
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)316.0
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialAluminum Foil
Adhesive TypeSilicone
Minimum Operating Temperature (Celsius)-54.0
Specifications MetFAR 25.853(a)
Overall Length (Imperial)10.0
Minimum Operating Temperature (Fahrenheit)-65.0
