3M Products & Supplies

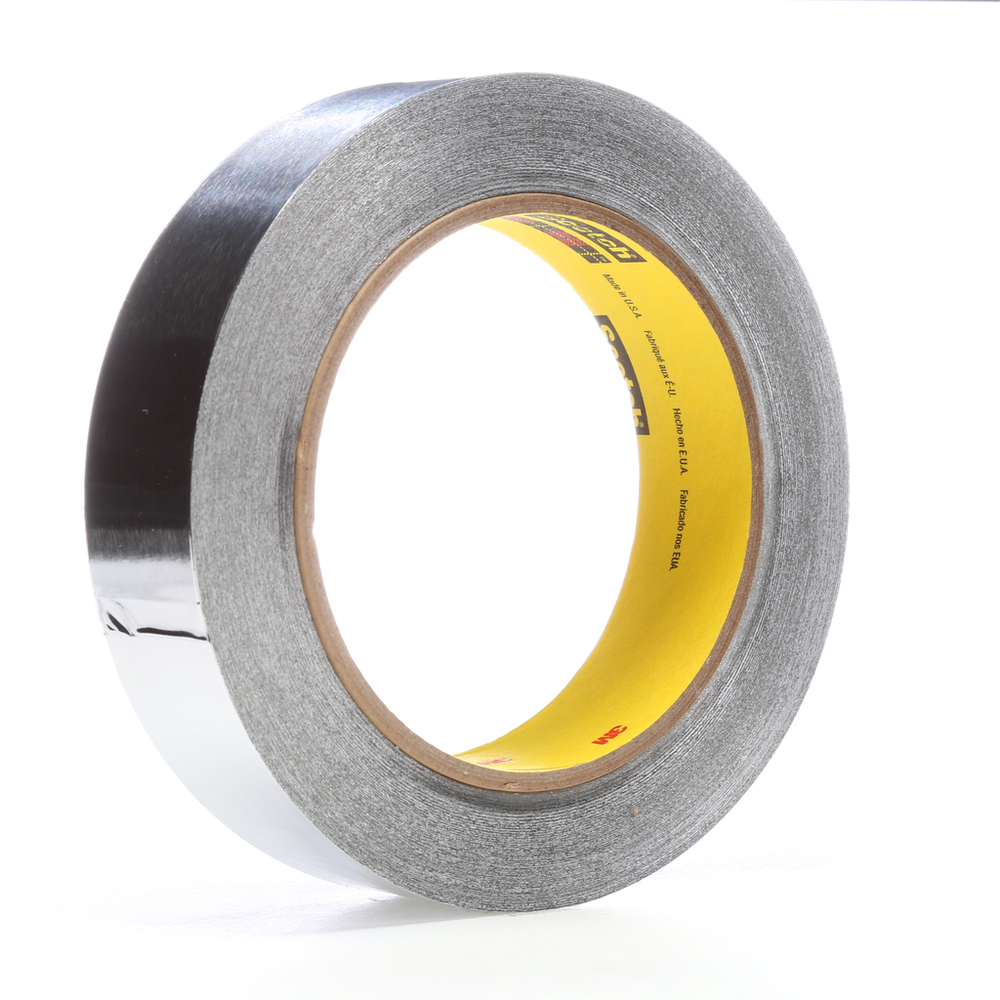

3M™ High Temperature Aluminum Foil Tape 433, Silver, 4 in x 60 yd, 3.6 mil, 2 Rolls/Case - 7010334092

Sold As: 10-Pack
SKU: 7010334092
MPN: 7010334092
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200497735
3M ID: 70006314804
5 Digit UPC: 49773
$5,334.12 ($533.41 / Count)
Hurry up! Current stock:

Product Description

For heat shielding applications such as wrapping over and along thermal insulation, use 3M™ High Temperature Aluminum Foil Tape 433. This dead soft aluminum foil tape is coated with a clear silicone pressure sensitive adhesive that bonds well to a variety of surfaces and excels in high temperature applications, where other adhesive tapes may fail.

Features

  • Can withstand limited exposure up to 600ºF/316ºC for heat shielding applications
  • Thermally conductive tape helps dissipate heat to protect temperature sensitive materials
  • Flame resistant – meets requirements of F.A.R. 25.853(a)
  • UL Recognized component (file QQQW2.MH122798)
  • Dead soft aluminum foil backing conforms to curved and uneven surfaces
  • Can be used to improve heating and cooling efficiency
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Specifications MetFAR 25.853(a)
Overall Width (Imperial)4.0
Backing (Carrier) Thickness (Metric) UOMmm
ApplicationSealing HVAC & Duct Work
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit)-65.0
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
IndustriesAerospace, Appliance, Automotive, Construction, Electronics, General Industrial, Metalworking, Military and Government, Specialty Vehicles, Transportation
Adhesive TypeSilicone
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-54.0
Total Tape Thickness without Liner (Imperial)3.6
Product ColorSilver
Overall Width (Metric)101.6
Tensile Strength (Metric)35.0
Back Side Adhesive Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric)54.86
Total Tape Thickness without Liner (Metric)0.09
Backing (Carrier) MaterialAluminum Foil
Overall Length (Imperial)60.0
Backing MaterialAluminum Foil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break3.5
Maximum Operating Temperature (Fahrenheit)600.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)1.6
Tensile Strength (Imperial)20.0
Units per Case2.0
Maximum Operating Temperature (Celsius)316.0
Primary LinerEasy Release Film
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.05
Backing (Carrier) Thickness (Imperial)2.0
Overall Width (Metric) UOMmm
