3M Products & Supplies

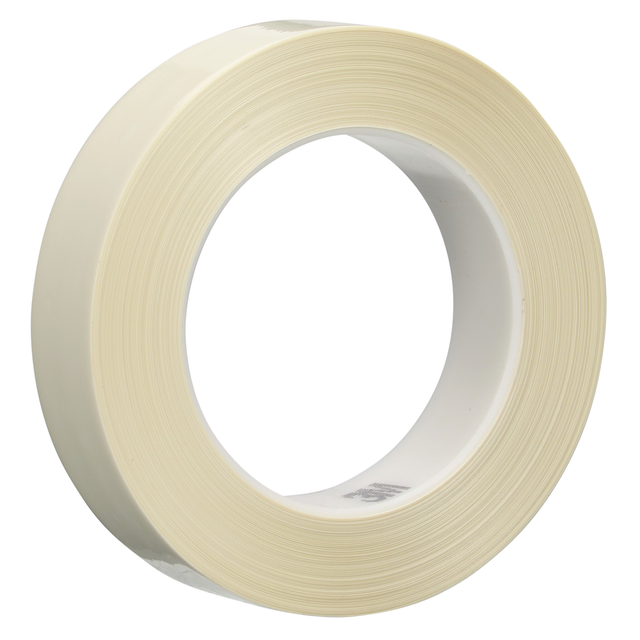

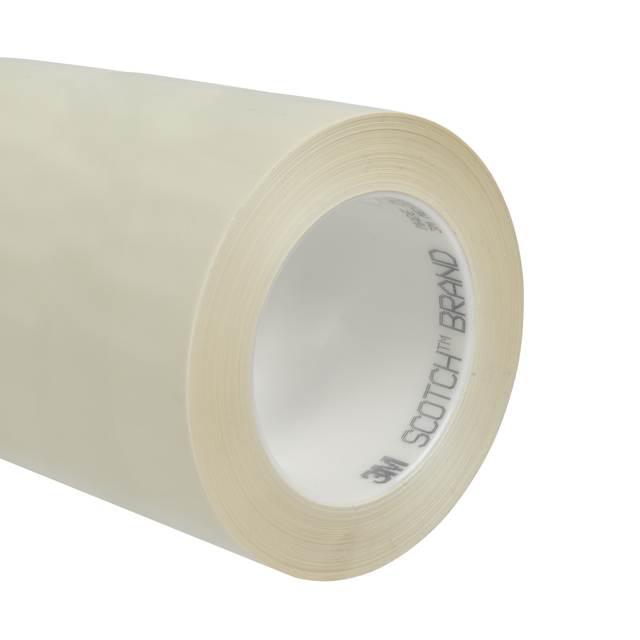

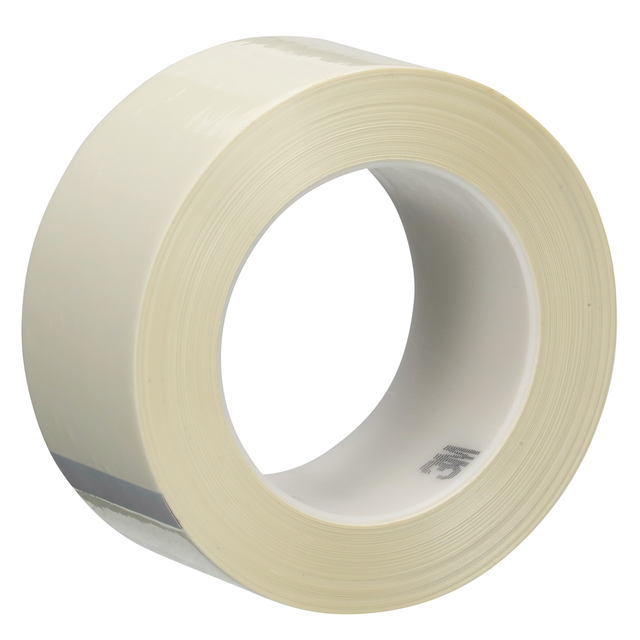

3M™ High Temperature Nylon Film Tape 855, White, 1/2 in x 72 yd, 3.6 mil, 72 Roll/Case - 7010045178

Sold As: 72-Pack
SKU: 7010045178
MPN: 7010045178
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200396656
3M ID: 70006249463
5 Digit UPC: 39665
$2,751.49 ($38.22 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Nylon Film Tape 855 is designed for high-temperature applications. The 3.2 mil thick tape features a non-silicone rubber adhesive on a tough nylon backing that applies easily, removes cleanly and withstands short temperature bake cycles of 400°F/204°C without leaving residue. This makes for faster anchorage during subsequent painting and bonding vs. silicone-based adhesives.

Features

  • Tough nylon backing adds temperature resistance
  • Rubber adhesive designed to remove cleanly after short high temperature bake cycles 400°F (204°C)
  • Elongation properties make for effective masking and faster removal
  • Excellent for high-temperature applications needing a non-silicone adhesive
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Total Tape Thickness without Liner (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)400.0
Backing (Carrier) Thickness (Metric) UOMmm
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialNylon
Tensile Strength (Metric) UOMN/cm
Backing (Carrier) Thickness (Metric)0.051
Total Tape Thickness without Liner (Metric)0.091
Overall Width (Metric)12.7
Backing Thickness (Metric)0.051
Product FormRoll
Tensile Strength (Imperial)32.0
Backing Thickness (Imperial)2.0
Back Side Adhesive Thickness (Metric)0.05
Product TypeTape
Overall Thickness (Imperial) UOMin
Overall Length (Metric) UOMm
Elongation at Break460%
Shelf Life in Months (From Date of Manufacture)18.0
Total Tape Thickness without Liner (Imperial) UOMmil
Tensile Strength (Metric)56.0
Adhesive TypeRubber
Overall Length (Metric)65.83
Adhesion Strength (Imperial)55.0
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Metric)60.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Minimum Operating Temperature (Fahrenheit)60.0
Liner ColorWhite
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)2.0
Number of Adhesive SidesSingle-sided
Backing Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.6
IndustriesAutomotive, General Industrial, Military and Government, Transportation
Overall Length (Imperial)72.0
Tensile Strength (Imperial) UOMlb/in
Units per Case72.0
Adhesion Strength (Metric) UOMN/100mm
Overall Thickness (Imperial)3.6
Units per Case UOMRoll
Overall Width (Imperial)0.5
Backing (Carrier) Thickness (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius)16.0
Back Side Adhesive Thickness (Metric) UOMmm
Product ColorWhite
Maximum Operating Temperature (Celsius)204.0
