3M Products & Supplies

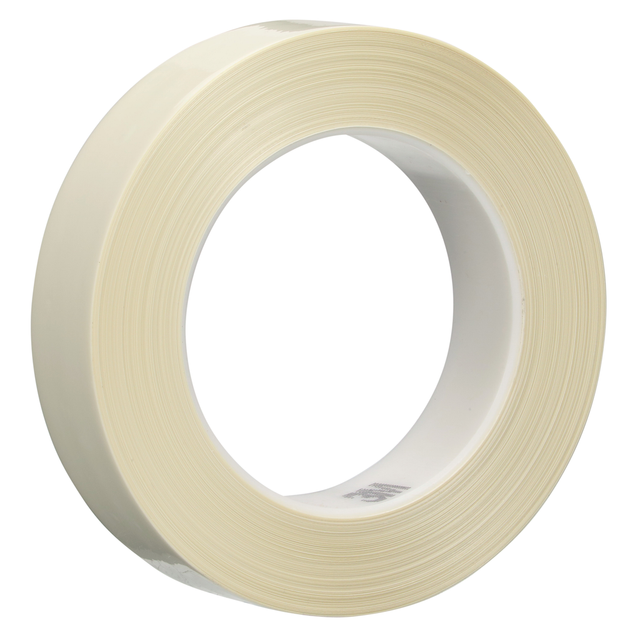

3M™ High Temperature Nylon Film Tape 855, White, 6 in x 72 yd, 3.6 mil, 8 Roll/Case - 7010048695

Sold As: 8-Pack
SKU: 7010048695
MPN: 7010048695
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128999318
3M ID: 70012502533
5 Digit UPC: 99931
$3,057.73 ($382.22 / Count)
Hurry up! Current stock:

Product Description

3M™ High Temperature Nylon Film Tape 855 is designed for high-temperature applications. The 3.2 mil thick tape features a non-silicone rubber adhesive on a tough nylon backing that applies easily, removes cleanly and withstands short temperature bake cycles of 400°F/204°C without leaving residue. This makes for faster anchorage during subsequent painting and bonding vs. silicone-based adhesives.

Features

  • Tough nylon backing adds temperature resistance
  • Excellent for high-temperature applications needing a non-silicone adhesive
  • Rubber adhesive designed to remove cleanly after short high temperature bake cycles 400°F (204°C)
  • Elongation properties make for effective masking and faster removal
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Overall Thickness (Imperial)3.6
IndustriesAutomotive, General Industrial, Military and Government, Transportation
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Metric) UOMN/cm
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Total Tape Thickness without Liner (Metric)0.091
Adhesion Strength (Imperial)55.0
Product TypeTape
Overall Length (Imperial)72.0
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Overall Width (Imperial)6.0
Tensile Strength (Imperial)32.0
Backing (Carrier) Thickness (Metric)0.051
Backing Thickness (Imperial) UOMmil
Overall Thickness (Imperial) UOMin
Shelf Life in Months (From Date of Manufacture)18.0
Product FormRoll
Back Side Adhesive Thickness (Metric)0.05
Backing (Carrier) Thickness (Metric) UOMmm
Backing Thickness (Metric) UOMmm
Adhesive TypeRubber
Adhesion Strength (Metric)60.0
Maximum Operating Temperature (Fahrenheit)400.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Overall Width (Metric)152.4
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)3.6
Backing Thickness (Imperial)2.0
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Backing Thickness (Metric)0.051
Maximum Operating Temperature (Celsius)204.0
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit)60.0
Number of Adhesive SidesSingle-sided
Overall Width (Imperial) UOMin
Product ColorWhite
Back Side Adhesive Thickness (Metric) UOMmm
Liner ColorWhite
Backing (Carrier) Thickness (Imperial)2.0
Adhesion Strength (Metric) UOMN/100mm
Minimum Operating Temperature (Celsius)16.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Backing (Carrier) MaterialNylon
Maximum Operating Temperature (Fahrenheit) UOMDegree
Elongation at Break460%
Tensile Strength (Metric)56.0
