3M Products & Supplies

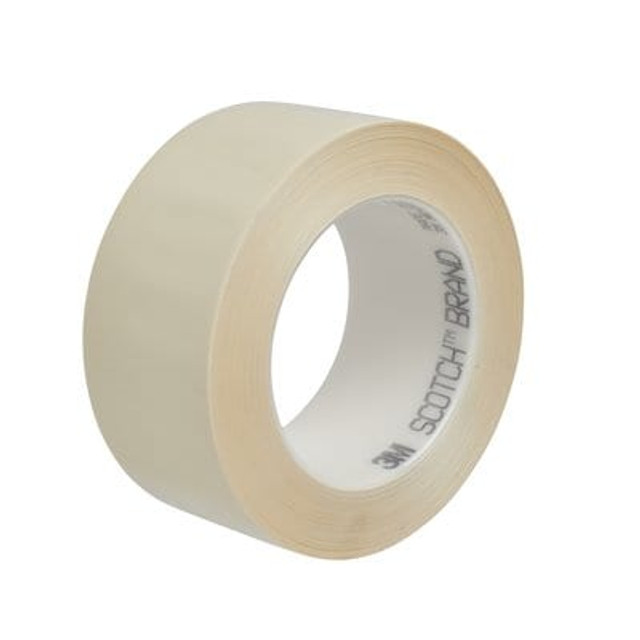

3M™ High Temperature Nylon Film Tape 855, White, 48 in x 72 yd, 3.6 mil, 1 Roll/Case - 7010048696

SKU: 7010048696
MPN: 7010048696
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128999325
3M ID: 70012502541
5 Digit UPC: 99932
$3,057.74 each
Hurry up! Current stock:

Product Description

3M™ High Temperature Nylon Film Tape 855 is designed for high-temperature applications. The 3.2 mil thick tape features a non-silicone rubber adhesive on a tough nylon backing that applies easily, removes cleanly and withstands short temperature bake cycles of 400°F/204°C without leaving residue. This makes for faster anchorage during subsequent painting and bonding vs. silicone-based adhesives.

Features

  • Elongation properties make for effective masking and faster removal
  • Tough nylon backing adds temperature resistance
  • Excellent for high-temperature applications needing a non-silicone adhesive
  • Rubber adhesive designed to remove cleanly after short high temperature bake cycles 400°F (204°C)
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Overall Length (Imperial)72.0
Total Tape Thickness without Liner (Imperial)3.6
Backing (Carrier) Thickness (Metric) UOMmm
Product ColorWhite
Backing Thickness (Imperial)2.0
Specifications MetASTM D3330, ASTM D3652, ASTM D3759
Total Tape Thickness without Liner (Imperial) UOMmil
Shelf Life in Months (From Date of Manufacture) UOMMonths
Elongation at Break460%
Maximum Operating Temperature (Celsius)204.0
Minimum Operating Temperature (Celsius)16.0
Backing (Carrier) Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric)0.05
Tensile Strength (Imperial)32.0
Back Side Adhesive Thickness (Metric) UOMmm
Tensile Strength (Metric) UOMN/cm
Adhesion Strength (Metric)60.0
Adhesion Strength (Metric) UOMN/100mm
Backing Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.091
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)2.0
Liner ColorWhite
IndustriesAutomotive, General Industrial, Military and Government, Transportation
Tensile Strength (Metric)56.0
Backing (Carrier) Thickness (Metric)0.051
Overall Width (Imperial)48.0
Minimum Operating Temperature (Fahrenheit)60.0
Adhesive TypeRubber
Minimum Operating Temperature (Celsius) UOMDegree
Product FormRoll
Shelf Life in Months (From Date of Manufacture)18.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Imperial)55.0
Backing Thickness (Metric) UOMmm
Overall Width (Metric)1219.2
Tensile Strength (Imperial) UOMlb/in
Overall Thickness (Imperial)3.6
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialNylon
Product TypeTape
Overall Length (Imperial) UOMyd
Backing Thickness (Metric)0.051
Maximum Operating Temperature (Fahrenheit)400.0
Overall Thickness (Imperial) UOMin
Number of Adhesive SidesSingle-sided
Maximum Operating Temperature (Fahrenheit) UOMDegree
