3M Products & Supplies

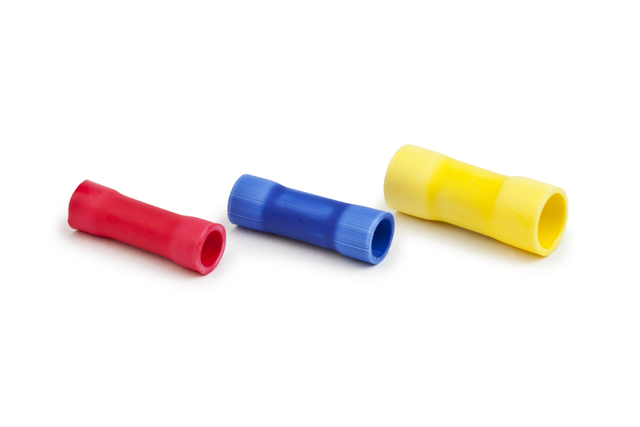

3M™ Highland™ Vinyl Insulated Butt Connector (Terminal) BSV10Q, AWG 12-10, 25/bag, 10 Bags/Case - 7000133654

Sold As: 10-Pack
SKU: 7000133654
MPN: 7000133654
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599969
3M ID: 80611602576
5 Digit UPC: 59996
$108.26 ($10.83 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Color-Coded Butt Splice Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Accommodates wire sizes 12 to 10 AWG
  • Built-in wire stop for correct positioning
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)221.0
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Connector TypeButt
UL File NumberE23438
Max. Number of Cores409.0
Terminal TypeButt Connectors
Minimum Conductor Size (Metric)4 mm²
Maximum Recommended Voltage Rating UOMV
Maximum Operating Temperature (Celsius)105.0
MaterialPlastic
Barrel Inside Diameter0.25 Inch
Maximum Conductor Size (Imperial)10 AWG
Barrel Length (Imperial)0.25 Inch
Overall Length (Imperial) UOMin
Maximum Recommended Voltage Rating600.0
Terminal StyleStandard
Packaging25 per bag
Units per Case10.0
Conductor Sizes (Imperial)12 - 10 AWG
Units per bag25
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Metric) UOMmm
Overall Length (Imperial)1.02
Barrel StyleButted
Insulation MaterialVinyl
Maximum Conductor Size (Metric)6 mm²
Maximum Insulation Outer Diameter (Metric) UOMmm
Minimum Conductor Size (Imperial)12 AWG
Overall Length (Metric)25.908
Body MaterialCopper Alloy
Barrel Length (Metric)6.35 mm
Maximum Insulation Outside Diameter0.145 in
