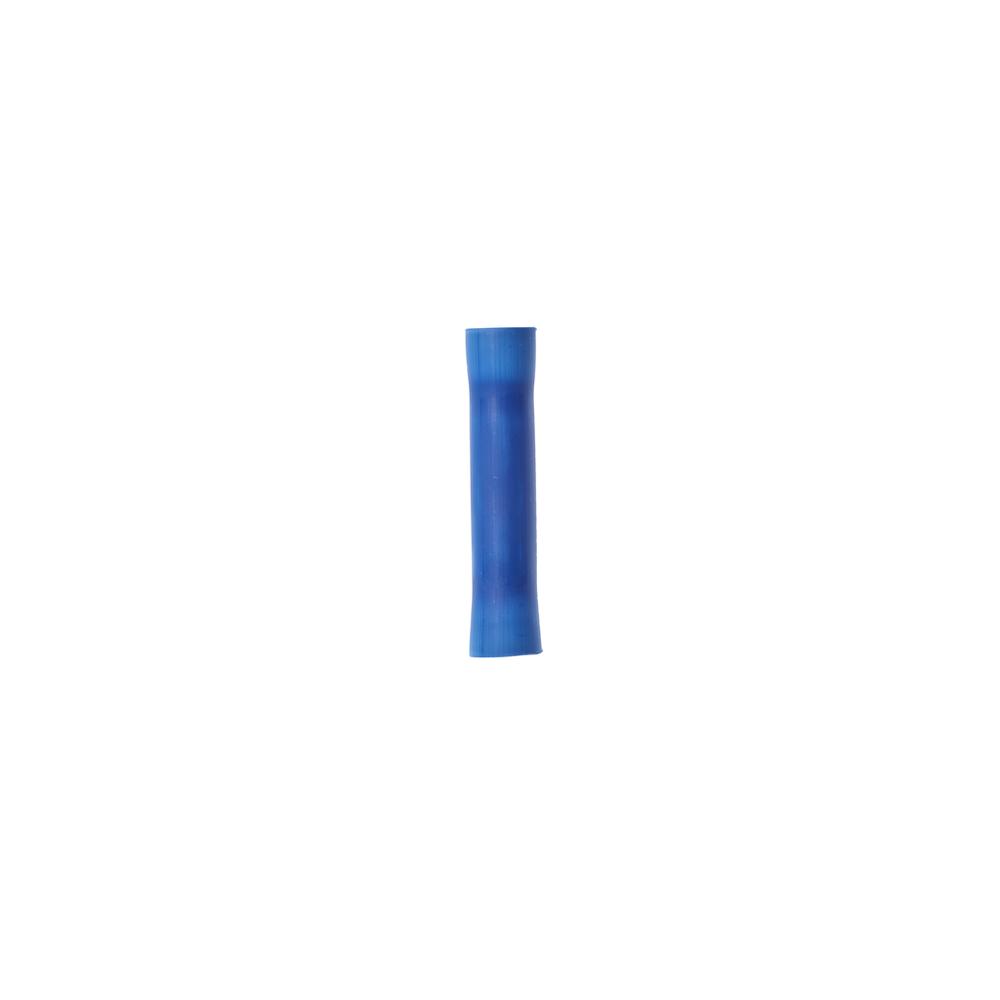

3M™ Highland™ Vinyl Insulated Butt Connector (Terminal) BSV14Q, AWG, 16-14, 25/bag, 10 Bags/Case - 7000133655

Sold As: 10-Pack
SKU: 7000133655
MPN: 7000133655
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128599976
3M ID: 80611602584
5 Digit UPC: 59997
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Highland™ Color-Coded Butt Splice Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Accommodates wire sizes 16 to 14 AWG
  • Built-in wire stop for correct positioning
  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Max. Number of Cores410.0
Maximum Insulation Outer Diameter (Metric)3.7
Overall Length (Imperial) UOMin
UL File NumberE23438
Barrel Length (Imperial)0.25 Inch
Connector TypeButt
Packaging25 per bag
Terminal TypeButt Connectors
Units per bag25
Terminal StyleStandard
Barrel Length (Metric)6.35 mm
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Barrel Inside Diameter0.17 Inch
Maximum Operating Temperature (Fahrenheit)221.0
Overall Length (Imperial)1.0
Maximum Conductor Size (Imperial)14 AWG
Units per Case10.0
Insulation MaterialVinyl
Body MaterialCopper Alloy
Barrel StyleButted
MaterialPlastic
Overall Length (Metric) UOMmm
Minimum Conductor Size (Metric)1.5 mm²
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Recommended Voltage Rating UOMV
Maximum Insulation Outside Diameter0.145 in
Maximum Operating Temperature (Celsius)105.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Conductor Sizes (Imperial)16 - 14 AWG
Minimum Conductor Size (Imperial)16 AWG
Maximum Insulation Outer Diameter (Metric) UOMmm
Overall Length (Metric)25.4
Maximum Recommended Voltage Rating600.0
Maximum Conductor Size (Metric)2.5 mm²
