3M™ Highland™ Vinyl Insulated Ring Terminal RV18-10Q, AWG 22-18, 25/bag, 10 Bags/Case - 7000133680

Sold As: 10-Pack
SKU: 7000133680
MPN: 7000133680
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051128600436
3M ID: 80611603046
5 Digit UPC: 60043
$86.61 ($8.66 / Count)
Hurry up! Current stock:

Product Description

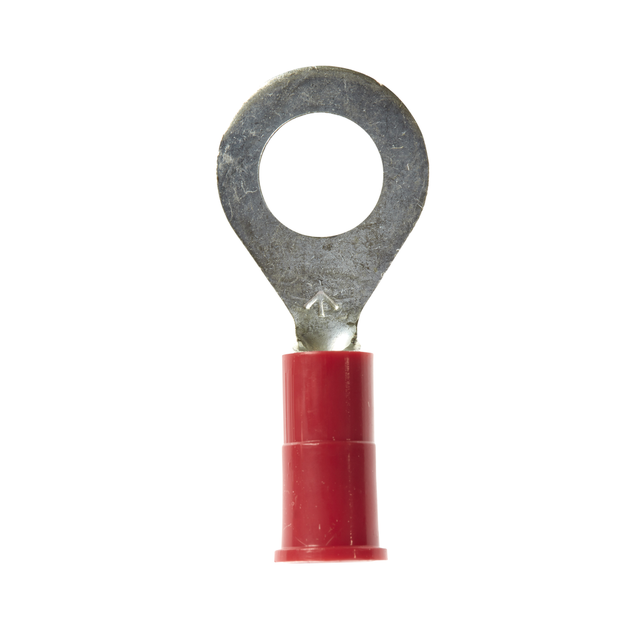

3M™ Highland™ Vinyl Insulated Butted Seam Ring Tongue terminals ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Features

  • Vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Standard-style ring tongue fits around the stud
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Spec Sheet



Downloads

Specifications

Country of OriginUnited States
Maximum Insulation Outer Diameter (Imperial)0.145
Maximum Insulation Outer Diameter (Imperial) UOMin
Overall Width (Imperial)0.31
Maximum Insulation Outside Diameter0.145 in
Minimum Stud Diameter (Metric)5.0
Maximum Conductor Size (Imperial)18 AWG
Minimum Stud Diameter (Imperial) UOMin
Maximum Insulation Outer Diameter (Metric)3.7
Maximum Recommended Voltage Rating UOMV
Overall Width (Metric) UOMmm
Overall Length (Metric)23.622
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Units per bag25
Dimension E (Metric)19.81
Dimension E0.78 Inch
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial)0.93
Clearance (C)0.33 Inch
Maximum Conductor Size (Metric)0.823
UL File NumberE23438
Maximum Recommended Voltage Rating600.0
Units per Case10.0
Stud Size (Metric)4826.0
Maximum Operating Temperature (Celsius)105.0
Stud Size#10
Maximum Insulation Outer Diameter (Metric) UOMmm
MaterialPlastic
Maximum Operating Temperature (Fahrenheit)221.0
Barrel Length (Metric)6.35 mm
Terminal TypeRing
Overall Length (Metric) UOMmm
Minimum Conductor Size (Metric)0.326 mm²
Overall Width (Metric)7.874
Connection TypeCrimp
Minimum Conductor Size (Imperial)22 AWG
Insulation MaterialVinyl
Packaging25 per bag
Minimum Stud Diameter (Metric) UOMmm
Ring TypeStandard
Maximum Operating Temperature (Celsius) UOMDegree
Barrel Inside Diameter0.07 Inch
Barrel Length (Imperial)0.25 Inch
Maximum Operating Temperature (Fahrenheit) UOMDegree
Terminal StyleStandard
Barrel StyleButted
Stud Sizes#10
