3M Products & Supplies

3M™ Medium-Wall, Flame-Retardant Cable Sleeve MDT-0400-48A, Red, #12 - #6 AWG, 4 ft. lengths, 20/case - 7000132583

Sold As: 20-Pack
SKU: 7000132583
MPN: 7000132583
For an accurate lead time please contact us
UPC: 00051135362464
3M ID: 80610769533
5 Digit UPC: 36246
$354.53 ($17.73 / Count)
Hurry up! Current stock:

Product Description

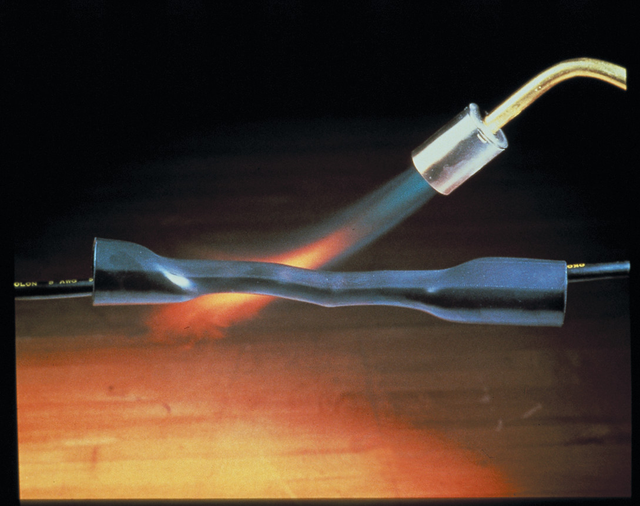

3M™ Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.

Features

  • Made of black cross-linked polyolefin
  • Flame-retardant
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers reliable performance for electrical splices, connections and terminations
  • Suitable for large transitions, splices and battery cables
  • Superior resistance to abrasion, corrosion and chemicals

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Maximum Operating Temperature (Celsius) UomDegree
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)230.0
Operating Temperature Range (Celsius)-55 °C to 110 °C
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Adhesive LinedYes
Tubing TypeHeavy Wall
Elongation UOM%
Inner Diameter Before Shrink (Imperial) UOMin
ApplicationElectrical Insulation
Product TypeHeat Shrink MDT
Inner Diameter Before Shrink (Metric)10.2
MaterialPolyolefin
Overall Length (Imperial)48.0
Chemical ResistantYes
Maximum Operating Temperature (Celsius)110.0
Shrink Ratio3:1
Sleeve Length48.0
Units per Case20.0
Flame RetardantYes
Inner Diameter Before Shrink (Imperial)0.4
Overall Length (Metric) UOMm
Minimum Shrink Temperature (Celsius)121.0
Sleeve Length UOMin
Inner Diameter Before Shrink (Metric) UOMmm
Inner Diameter After Shrink (Metric)3.4
Inner Diameter After Shrink (Imperial)0.13
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter After Shrink (Imperial) UOMin
Overall Length (Imperial) UOMin
Overall Length (Metric)1.22
Product ColorRed
