3M Products & Supplies

3M™ Medium-Wall, Flame-Retardant Cable Sleeve MDT-1100-48A, Red, #2 - 2/0 AWG, 4 ft. lengths, 20/case - 7010396792

Sold As: 60-Pack
SKU: 7010396792
MPN: 7010396792
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051135362501
3M ID: 80610769574
5 Digit UPC: 36250
$1,382.31 ($23.04 / Count)
Hurry up! Current stock:

Product Description

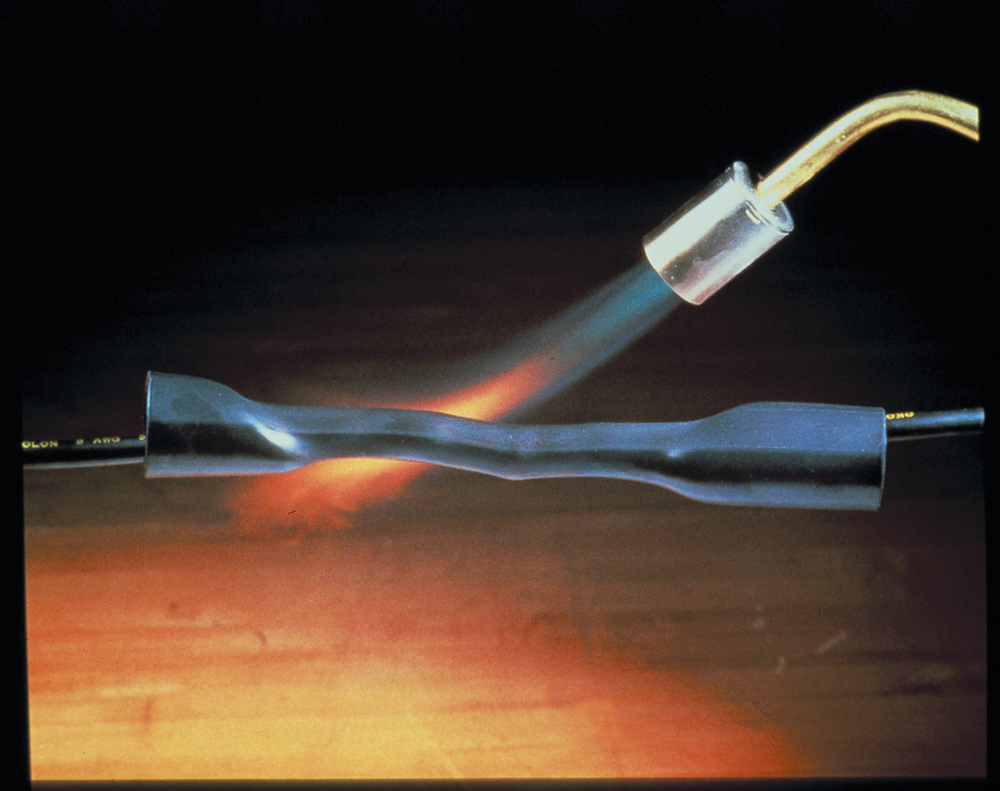

3M™ Heat Shrink Cable Sleeve MDT is a flexible, medium wall tubing that provides abrasion, corrosion and chemical resistance. This sleeve has a 3:1 shrink ratio that offers primary electrical insulation for 1 kV rated applications. The flame retardant polyolefin construction features a thermoplastic sealant to provide moisture seal protection.

Features

  • Suitable for large transitions, splices and battery cables
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant
  • Superior resistance to abrasion, corrosion and chemicals
  • Offers reliable performance for electrical splices, connections and terminations
  • Made of black cross-linked polyolefin

Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
ApplicationElectrical Insulation
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter After Shrink (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Metric) UOMmm
Product ColorRed
Inner Diameter After Shrink (Imperial)0.37
Maximum Operating Temperature (Celsius)110.0
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial)48.0
Inner Diameter Before Shrink (Imperial)1.1
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Overall Length (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Metric)27.94
Maximum Operating Temperature (Fahrenheit)230.0
Inner Diameter After Shrink (Metric)9.31
