3M Products & Supplies

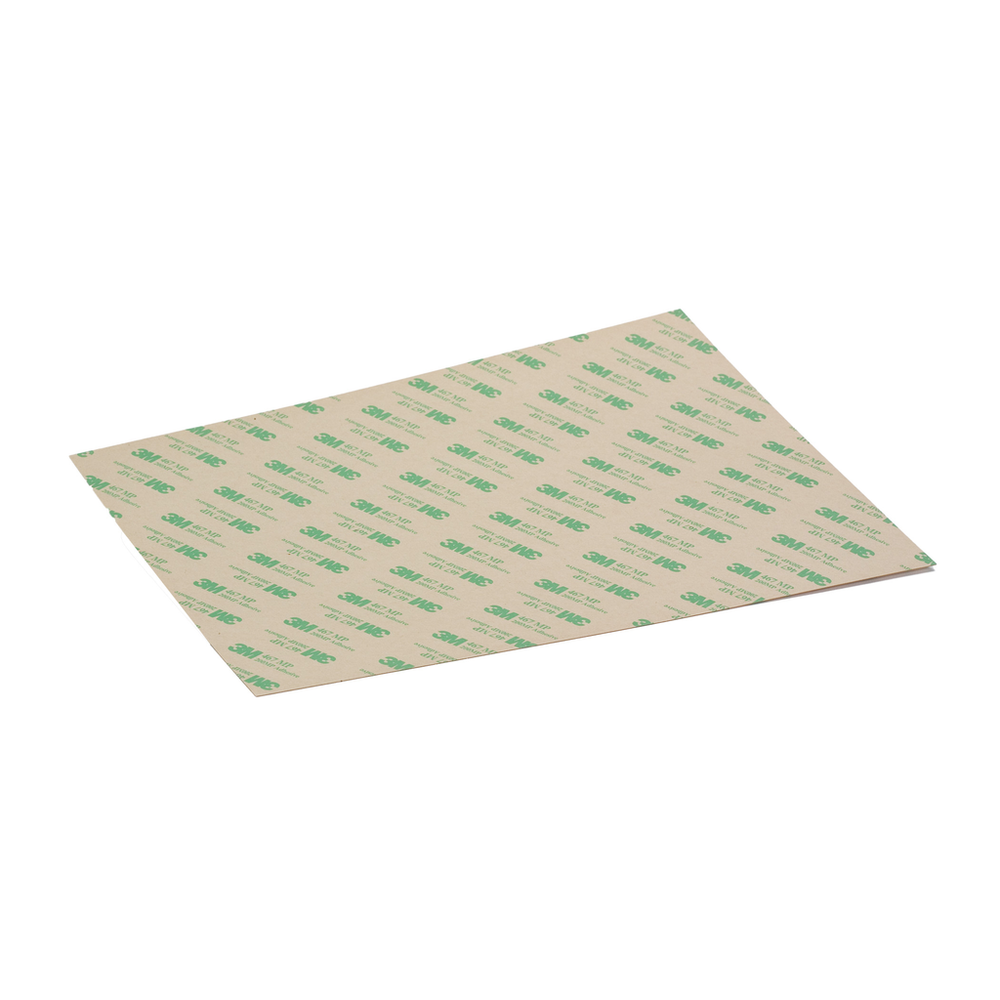

3M™ Membrane Switch Spacer 7945MP, Clear, 24 in x 36 in, 5 mil, 100 Sheet/Case - 7000001575

SKU: 7000001575
MPN: 7000001575
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50021200684222
3M ID: 70007519575
5 Digit UPC: 68422
$1,254.15 each
Hurry up! Current stock:

Product Description

3M™ Membrane Switch Spacer 7945MP features 3M™ High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a 1 mil PET film carrier. This adhesive withstands repeated switch actuation and forms neat, clean edges for precise slitting and die-cutting. Double PCK paper liners resist humidity, curling, tunneling and buckling, and add stability for improved sheet processing.

Features

  • Adhesive resists oozing at edges and die-cuts for faster part processing
  • 2 mil acrylic adhesive on each side delivers excellent shear strength, resists slippage and edge lifting
  • 5 mil total thickness spacer is ideal for withstanding repeated stress of switch actuation
  • Layflat 58# polycoated kraft (PCK) liners add dimensional stability for various die-cutting operations
  • 1 mil polyester film carrier provides strength and stability
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Secondary Liner Thickness (Imperial)4.33
Back Side Adhesive Thickness (Imperial) UOMmil
Primary Liner Thickness (Imperial)4.2
Minimum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Fahrenheit)400.0
Secondary Liner ColorTan
Overall Width (Imperial)24.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMin
Secondary Liner Thickness (Imperial) UOMmil
Overall Length (Metric)914.4
Overall Length (Metric) UOMmm
Backing (Carrier) MaterialPolyester Film
Primary Liner58# Polycoated Kraft Paper
Indoor/OutdoorIndoor/Outdoor
Overall Length (Imperial)36.0
Face Side Adhesive Thickness (Metric) UOMmm
Secondary Liner Thickness (Metric)0.11
Shelf Life UOMMonth
Primary Liner Thickness (Metric)0.11
Primary Liner ColorTan
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial)5.0
Maximum Operating Temperature (Celsius)204.0
Overall Width (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Face Side Adhesive Thickness (Metric)0.05
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation, Woodworking
Back Side Adhesive Thickness (Metric)0.05
Number of Adhesive SidesDouble-sided
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.13
Face Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Imperial)2.0
Back Side Adhesive Thickness (Imperial)2.0
Backing (Carrier) Thickness (Imperial) UOMmil
Product ColorTransparent
Units per Case100.0
Secondary Liner58# Polycoated Kraft Paper
Backing (Carrier) Thickness (Imperial)1.0
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Metric)0.03
Overall Width (Metric)609.6
Minimum Operating Temperature (Celsius)-40.0
Primary Liner Thickness (Imperial) UOMmil
