3M Products & Supplies

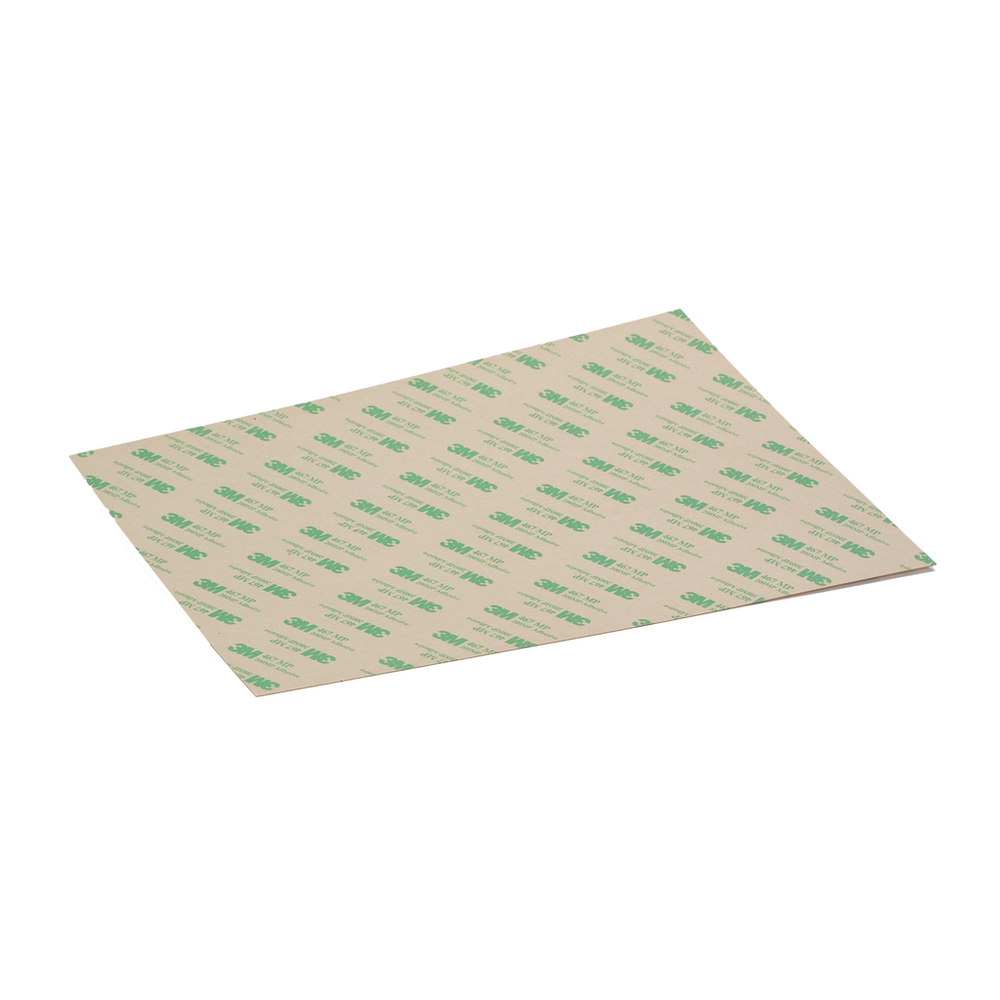

3M™ Membrane Switch Spacer 7957MP, Clear, 24 in x 36 in, 7 mil, 100 Sheet/Case - 7000001569

SKU: 7000001569
MPN: 7000001569
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50021200177502
3M ID: 70016034707
5 Digit UPC: 17750
$1,546.16 each
Hurry up! Current stock:

Product Description

3M™ Membrane Switch Spacer 7957MP features 3M™ High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a 3 mil PET film carrier. This adhesive withstands repeated switch actuation and forms neat, clean edges for precise slitting and die-cutting. Double PCK paper liners resist humidity, curling, tunneling and buckling, and add stability for improved sheet processing.

Features

  • 7 mil double-coated spacer is ideal for withstanding repeated stress of switch actuation
  • Layflat 58# polycoated kraft (PCK) liners add dimensional stability for various die-cutting operations
  • Adhesive resists oozing at edges and die-cuts for faster part processing
  • 2 mil acrylic adhesive on each side delivers excellent shear strength, resists slippage and edge lifting
  • 3 mil polyester film carrier provides strength and stability
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation, Woodworking
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Product ColorTransparent
Overall Width (Metric)609.6
Back Side Adhesive Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Imperial)24.0
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Imperial)7.0
Secondary Liner ColorTan
Primary Liner Thickness (Metric) UOMmm
Primary Liner ColorTan
Face Side Adhesive Thickness (Imperial)2.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)400.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)3.0
Face Side Adhesive Thickness (Metric)0.05
Indoor/OutdoorIndoor/Outdoor
Primary Liner Thickness (Metric)0.11
Total Tape Thickness without Liner (Imperial) UOMmil
Units per Case100.0
Primary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric)0.11
Primary Liner Thickness (Imperial)4.2
Secondary Liner58# Polycoated Kraft Paper
Shelf Life UOMMonth
Primary Liner58# Polycoated Kraft Paper
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric)914.4
Secondary Liner Thickness (Imperial)4.2
Backing (Carrier) Thickness (Metric)0.08
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Metric) UOMmm
Back Side Adhesive Thickness (Imperial)2.0
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial)36.0
Face Side Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Back Side Adhesive Thickness (Metric)0.05
Total Tape Thickness without Liner (Metric)0.18
Overall Length (Imperial) UOMin
Back Side Adhesive Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPolyester Film
Secondary Liner Thickness (Metric) UOMmm
Secondary Liner Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)204.0
