3M Products & Supplies

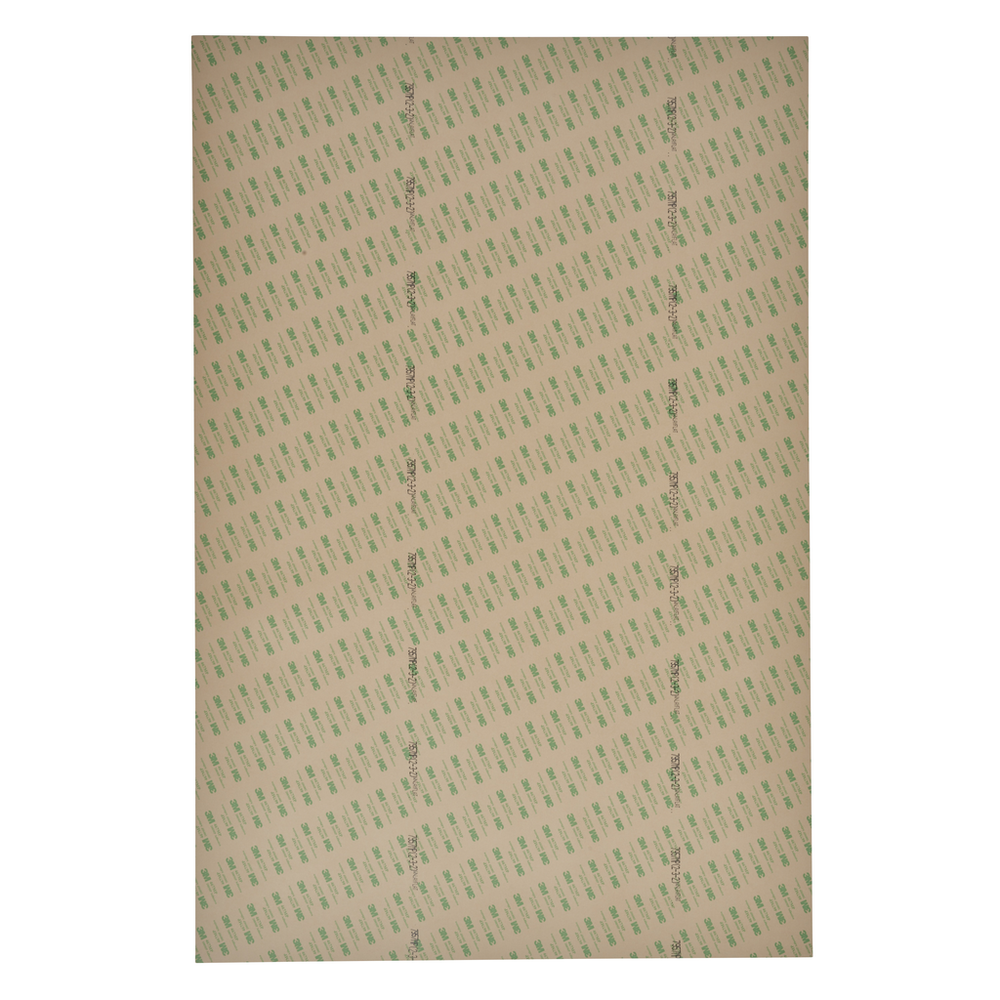

3M™ Membrane Switch Spacer 7957MP, Clear, 48 in x 360 yd, 7 mil, 1 Roll/Case - 7010335283

SKU: 7010335283
MPN: 7010335283
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125751865
3M ID: 70006492733
5 Digit UPC: 75186
$11,132.35 each
Hurry up! Current stock:

Product Description

3M™ Membrane Switch Spacer 7957MP features 3M™ High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a 3 mil PET film carrier. This adhesive withstands repeated switch actuation and forms neat, clean edges for precise slitting and die-cutting. Double PCK paper liners resist humidity, curling, tunneling and buckling, and add stability for improved sheet processing.

Features

  • Layflat 58# polycoated kraft (PCK) liners add dimensional stability for various die-cutting operations
  • 3 mil polyester film carrier provides strength and stability
  • Adhesive resists oozing at edges and die-cuts for faster part processing
  • 2 mil acrylic adhesive on each side delivers excellent shear strength, resists slippage and edge lifting
  • 7 mil double-coated spacer is ideal for withstanding repeated stress of switch actuation
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Face Side Adhesive Thickness (Imperial)2.0
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Imperial) UOMmil
Face Side Adhesive Thickness (Metric)0.05
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric)1219.2
Minimum Operating Temperature (Celsius) UOMDegree
Secondary Liner Thickness (Imperial)4.2
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Back Side Adhesive Thickness (Metric)0.05
Overall Length (Imperial) UOMyd
Face Side Adhesive Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Shelf Life UOMMonth
Overall Width (Metric) UOMmm
Secondary Liner ColorTan
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit) UOMDegree
Secondary Liner Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.08
Overall Length (Imperial)360.0
Secondary Liner58# Polycoated Kraft Paper
Product ColorTransparent
Indoor/OutdoorIndoor/Outdoor
Face Side Adhesive Thickness (Metric) UOMmm
Primary Liner58# Polycoated Kraft Paper
Backing (Carrier) MaterialPolyester Film
Overall Width (Imperial)48.0
Primary Liner Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit)400.0
Total Tape Thickness without Liner (Imperial)7.0
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Metric)329.18
Primary Liner ColorTan
Maximum Operating Temperature (Celsius)204.0
Secondary Liner Thickness (Imperial) UOMmil
Back Side Adhesive Thickness (Imperial)2.0
Primary Liner Thickness (Metric)0.11
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation, Woodworking
Secondary Liner Thickness (Metric)0.11
Backing (Carrier) Thickness (Imperial)3.0
Total Tape Thickness without Liner (Metric)0.18
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Imperial)4.2
Units per Case1.0
