3M Products & Supplies

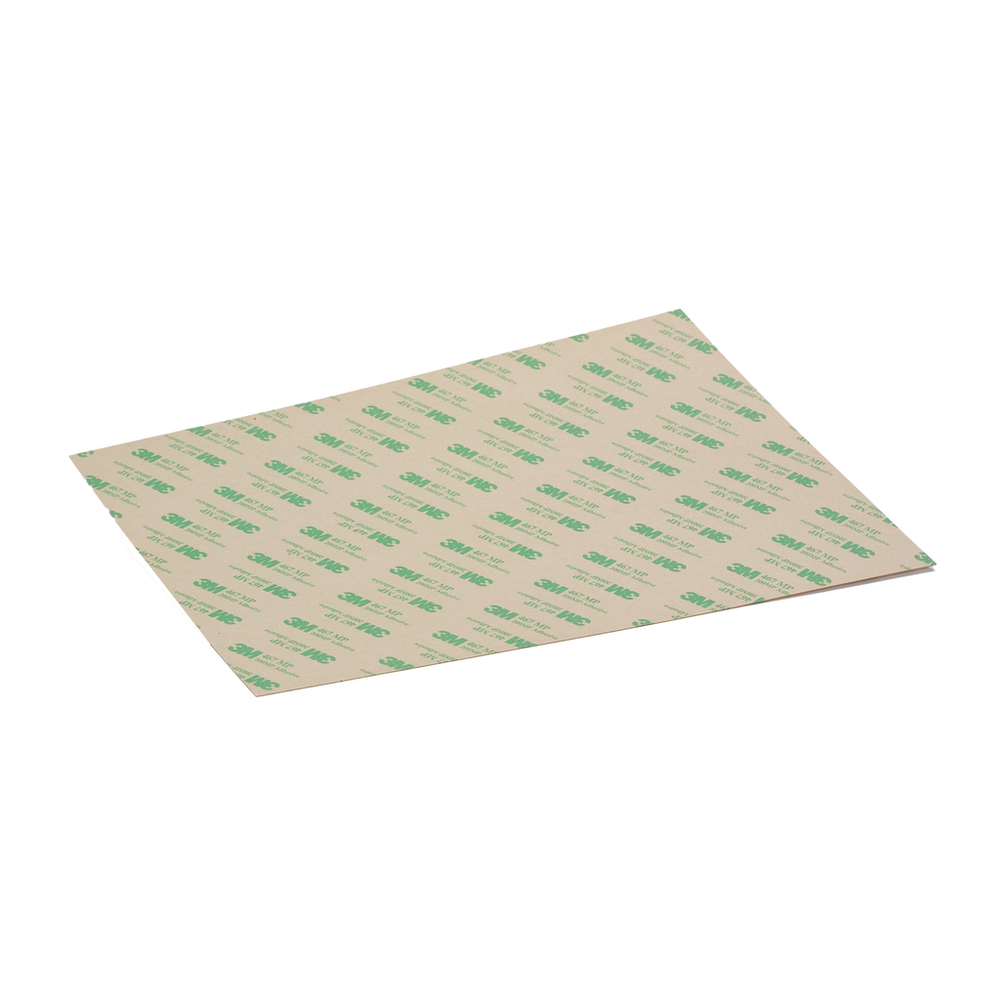

3M™ Membrane Switch Spacer 7953MP, Clear, 24 in x 36 in, 3.5 mil, 100 Sheet/Case - 7000001574

SKU: 7000001574
MPN: 7000001574
Stock Item: Stock items typically ship within 2-3 business days
UPC: 50021200682921
3M ID: 70016040043
5 Digit UPC: 68292
$1,209.96 each
Hurry up! Current stock:

Product Description

3M™ Membrane Switch Spacer 7953MP features 3M™ High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a .5 mil PET carrier. This adhesive withstands repeated switch actuation and forms neat, clean edges for precise slitting and die-cutting. Double PCK paper liners resist humidity, curling, tunneling and buckling, and add stability for improved sheet processing.

Features

  • .5 mil polyester film carrier provides strength and stability
  • Lay-flat polycoated kraft (PCK) liners add dimensional stability for various die-cutting operations
  • 3.5 mil double-coated spacer is ideal for withstanding repeated stress of switch actuation
  • Adhesive resists oozing at edges and die-cuts for faster part processing
  • 1.5 mil acrylic adhesive delivers excellent shear strength, resists slippage and edge lifting
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric)609.6
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Secondary Liner ColorTan
Primary Liner ColorTan
Secondary Liner58# Polycoated Kraft Paper
Secondary Liner Thickness (Imperial) UOMmil
Secondary Liner Thickness (Imperial)4.2
Primary Liner Thickness (Metric)0.11
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation, Woodworking
Overall Length (Metric)914.4
Maximum Operating Temperature (Celsius)204.0
Overall Width (Imperial)24.0
Face Side Adhesive Thickness (Metric)0.04
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Back Side Adhesive Thickness (Imperial)1.5
Product ColorTransparent
Minimum Operating Temperature (Celsius) UOMDegree
Units per Case100.0
Primary Liner58# Polycoated Kraft Paper
Shelf Life UOMMonth
Primary Liner Thickness (Imperial)4.2
Total Tape Thickness without Liner (Imperial)3.5
Overall Length (Imperial) UOMin
Indoor/OutdoorIndoor/Outdoor
Backing (Carrier) MaterialPolyester Film
Back Side Adhesive Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit)400.0
Overall Length (Metric) UOMmm
Face Side Adhesive Thickness (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.01
Total Tape Thickness without Liner (Metric)0.09
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Secondary Liner Thickness (Metric)0.11
Face Side Adhesive Thickness (Imperial)1.5
Minimum Operating Temperature (Celsius)-40.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Back Side Adhesive Thickness (Metric)0.04
Backing (Carrier) Thickness (Imperial)0.5
Face Side Adhesive Thickness (Imperial) UOMmil
Overall Length (Imperial)36.0
Secondary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Metric) UOMmm
