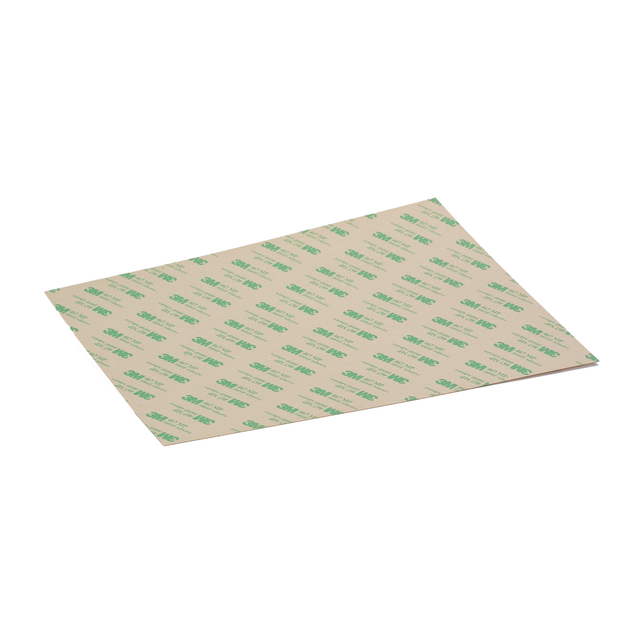

3M™ Membrane Switch Spacer Single Coated 7993MP, Clear, 24 in x 36 in, 3 mil, 100 Sheet/Case - 7000115630

SKU: 7000115630
MPN: 7000115630
For an accurate lead time please contact us
UPC: 00021200683169
3M ID: 70016040571
5 Digit UPC: 68316
$980.36 each
Hurry up! Current stock:

Product Description

3M™ Membrane Switch Spacer Single Coated 7993MP features 3M™ High Performance Acrylic Adhesive 200MP, formulated for excellent shear strength, on a 1 mil carrier. This clear PET film provides a smooth, bright appearance, eliminating the need for floodcoat on overlays and keypads. The adhesive withstands repeated switch actuation and forms neat, clean edges for precise slitting and die-cutting.

Features

  • 3 mil single-coated spacer is ideal for withstanding repeated stress of switch actuation
  • Heavy 94# polycoated kraft (PCK) liner delivers improved handling and lay-flat
  • 2 mil 3M™ Acrylic Adhesive 200MP delivers excellent shear strength, resists slippage and edge lifting
  • Clear 1 mil polyester film carrier adds brightness, eliminating need for floodcoat
  • Adhesive resists oozing at slits and die-cuts for faster part processing
  • Excellent for graphic overlays and keypads
Spec Sheet



Downloads

Specifications

Shelf Life730
Country of OriginUnited States
Product ColorTransparent
Minimum Operating Temperature (Fahrenheit)-40.0
Total Tape Thickness without Liner (Imperial)3.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Units per Case100.0
Units per Case UOMRoll
Overall Width (Imperial) UOMin
Primary Liner94# Polycoated Kraft Paper
Backing (Carrier) Thickness (Imperial)1.0
Minimum Operating Temperature (Celsius)-40.0
Overall Width (Metric)609.6
Total Tape Thickness without Liner (Metric)0.08
Primary Liner Thickness (Metric) UOMmm
Primary Liner Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Face Side Adhesive Thickness (Imperial) UOMmil
Minimum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Imperial)7.0
Shelf Life UOMMonth
Maximum Operating Temperature (Fahrenheit)400.0
Face Side Adhesive Thickness (Imperial)2.0
Number of Adhesive SidesDouble-sided
Overall Width (Imperial)24.0
Overall Length (Imperial)36.0
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius)204.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.03
Primary Liner ColorWhite
Maximum Operating Temperature (Celsius) UOMDegree
Primary Liner Thickness (Metric)0.18
Adhesive TypeHigh Performance Acrylic Adhesive 200MP
Overall Length (Metric)914.4
IndustriesAerospace, Appliance, Automotive, Converter Solutions, Electronics, General Industrial, MRO, Medical, Metalworking, Military and Government, Point of Purchase, Print, Signage, Specialty Vehicles, Transportation, Woodworking
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Face Side Adhesive Thickness (Metric)0.05
Overall Length (Imperial) UOMin
Face Side Adhesive Thickness (Metric) UOMmm
Overall Length (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) MaterialPolyester Film
