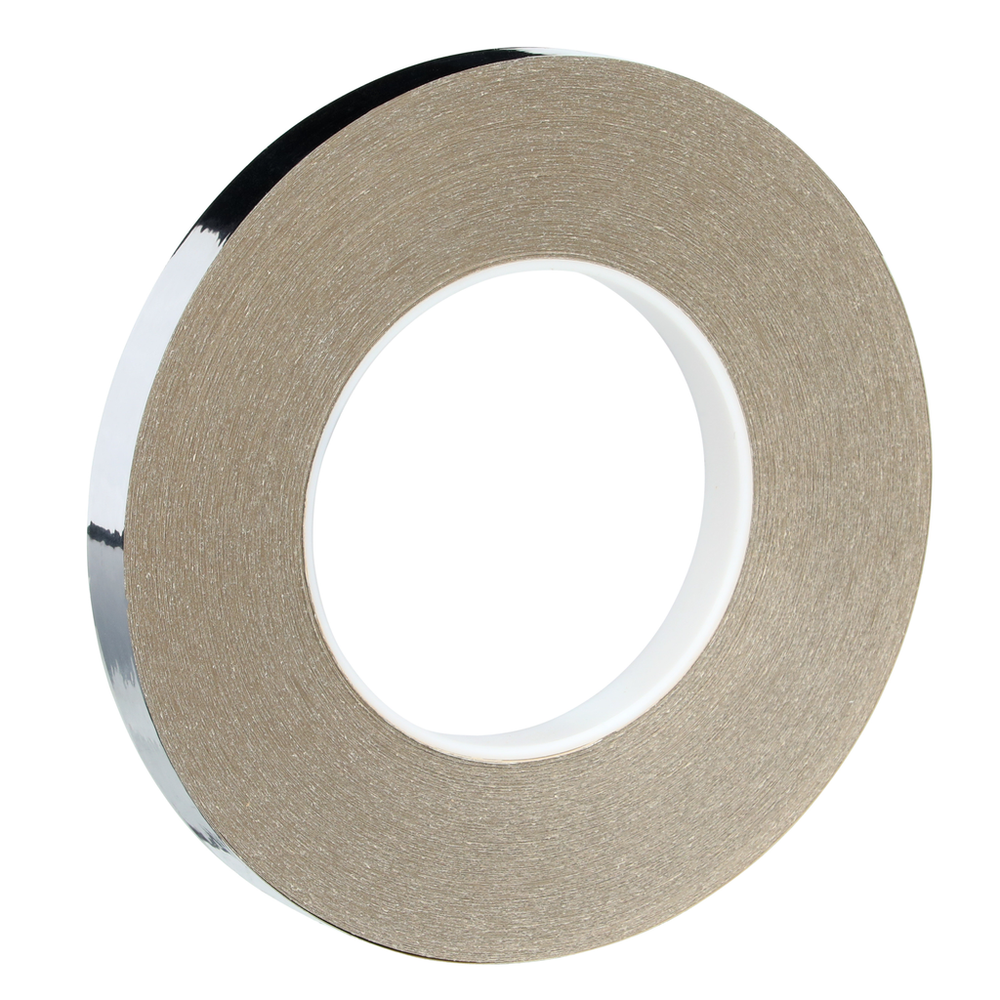

3M™ Metalized Film Tape 8437, Silver, 1/2 in x 72 yd, 2.1 mil, 72 Roll/Case - 7010045176

Sold As: 72-Pack
SKU: 7010045176
MPN: 7010045176
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200396427
3M ID: 70006249232
5 Digit UPC: 39642
$7,716.63 ($107.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Metalized Film Tape 8437 is comprised of a relatively thin polyester backing with a metalized coating on both side of the film providing a mirror-like finish with low emissivity and a versatile, long lasting acrylic adhesive. A silicone coated release liner helps with ease of handling and allows for large area applications and die-cutting custom shapes.

Features

  • Metalized surface provides some of the advantages of a metal tape without the associated weight
  • Abrasion resistance protects surface from abrasion and rough handling
  • Pressure sensitive acrylic adhesive for clarity and long-term holding
  • Mirror-like finish gives the tape high visibility where it is needed and maintains its bright appearance for up to 3 months
  • Liner is convenient for die-cutting and applications to large surface areas, or applications where there is a narrow gap
  • Thin, high strength polyester film meets low caliper requirements which won't interfere with most machinery processes
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Tensile Strength (Metric) UOMN/100mm
Units per Case72.0
Backing (Carrier) MaterialPolyester
Tensile Strength (Imperial)20.0
Number of Adhesive SidesSingle-sided
Overall Length (Metric) UOMm
Overall Thickness (Imperial)2.1
Overall Width (Metric)12.7
Overall Length (Imperial)72.0
Overall Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric) UOMmm
Backing Thickness (Imperial) UOMmil
Product FormRoll
Total Tape Thickness without Liner (Imperial)2.1
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial) UOMlb/in
IndustriesAppliance, Automotive, General Industrial, Military and Government, Print, Specialty Vehicles, Transportation
Product ColorSilver
Adhesive TypeAcrylic
Overall Length (Metric)65.83
Adhesion Strength (Metric)44.0
Units per Case UOMRoll
Total Tape Thickness without Liner (Imperial) UOMmil
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.05
Back Side Adhesive Thickness (Metric)0.023
Maximum Operating Temperature (Celsius)93.0
Backing Thickness (Imperial)0.9
Elongation at Break70%
Backing Thickness (Metric)0.023
Back Side Adhesive Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Imperial)40.0
Overall Width (Imperial)0.5
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Product TypeTape
Shelf Life in Months (From Date of Manufacture) UOMMonths
Total Tape Thickness without Liner (Metric) UOMmm
Backing Thickness (Metric) UOMmm
Tensile Strength (Metric)35.0
Backing (Carrier) Thickness (Metric)0.02
Shelf Life in Months (From Date of Manufacture)12.0
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)200.0
Adhesion Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Imperial)0.9
