3M Products & Supplies

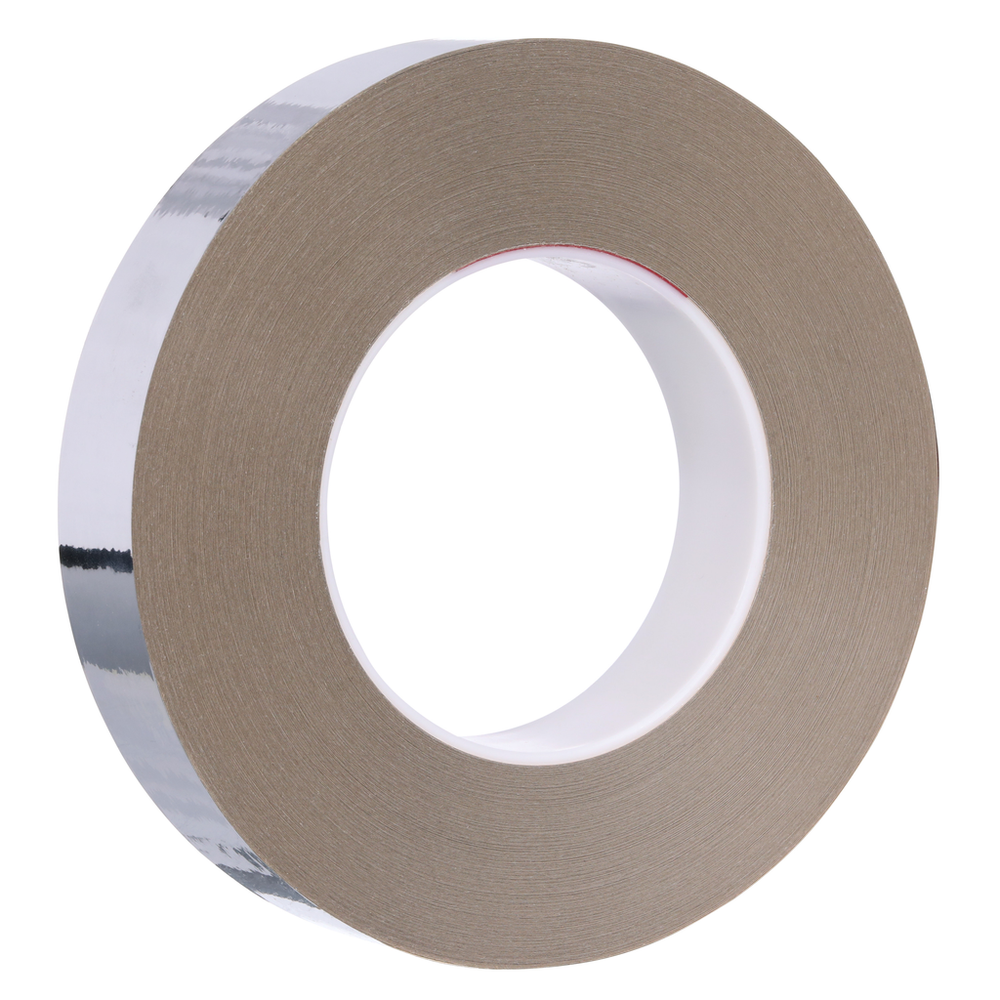

3M™ Metalized Film Tape 8437, Silver, 1 in x 72 yd, 2.1 mil, 36 Roll/Case - 7010045175

Sold As: 36-Pack
SKU: 7010045175
MPN: 7010045175
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00021200396410
3M ID: 70006249224
5 Digit UPC: 39641
$6,429.74 ($178.60 / Count)
Hurry up! Current stock:

Product Description

3M™ Metalized Film Tape 8437 is comprised of a relatively thin polyester backing with a metalized coating on both side of the film providing a mirror-like finish with low emissivity and a versatile, long lasting acrylic adhesive. A silicone coated release liner helps with ease of handling and allows for large area applications and die-cutting custom shapes.

Features

  • Abrasion resistance protects surface from abrasion and rough handling
  • Mirror-like finish gives the tape high visibility where it is needed and maintains its bright appearance for up to 3 months
  • Liner is convenient for die-cutting and applications to large surface areas, or applications where there is a narrow gap
  • Metalized surface provides some of the advantages of a metal tape without the associated weight
  • Thin, high strength polyester film meets low caliper requirements which won't interfere with most machinery processes
  • Pressure sensitive acrylic adhesive for clarity and long-term holding
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Backing (Carrier) Thickness (Metric)0.02
Maximum Operating Temperature (Celsius) UOMDegree
Backing Thickness (Imperial) UOMmil
Overall Length (Metric) UOMm
Back Side Adhesive Thickness (Metric)0.023
Backing Thickness (Metric)0.023
Overall Length (Imperial) UOMyd
Backing (Carrier) MaterialPolyester
Total Tape Thickness without Liner (Metric)0.05
Product ColorSilver
Total Tape Thickness without Liner (Imperial)2.1
Backing Thickness (Metric) UOMmm
Product FormRoll
Shelf Life in Months (From Date of Manufacture)12.0
Backing (Carrier) Thickness (Imperial)0.9
Elongation at Break70%
Overall Length (Imperial)72.0
Overall Thickness (Imperial)2.1
Overall Thickness (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Fahrenheit)200.0
Overall Length (Metric)65.83
Overall Width (Metric)25.4
Adhesion Strength (Imperial)40.0
Adhesion Strength (Metric)44.0
Number of Adhesive SidesSingle-sided
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)20.0
Shelf Life in Months (From Date of Manufacture) UOMMonths
Back Side Adhesive Thickness (Metric) UOMmm
Units per Case36.0
Overall Width (Imperial)1.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMmm
Tensile Strength (Metric)35.0
Tensile Strength (Metric) UOMN/100mm
Maximum Operating Temperature (Celsius)93.0
Units per Case UOMRoll
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesion Strength (Metric) UOMN/100mm
Overall Width (Imperial) UOMin
IndustriesAppliance, Automotive, General Industrial, Military and Government, Print, Specialty Vehicles, Transportation
Adhesive TypeAcrylic
Minimum Operating Temperature (Fahrenheit)40.0
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Product TypeTape
Backing (Carrier) Thickness (Imperial) UOMmil
Backing Thickness (Imperial)0.9
