3M Products & Supplies

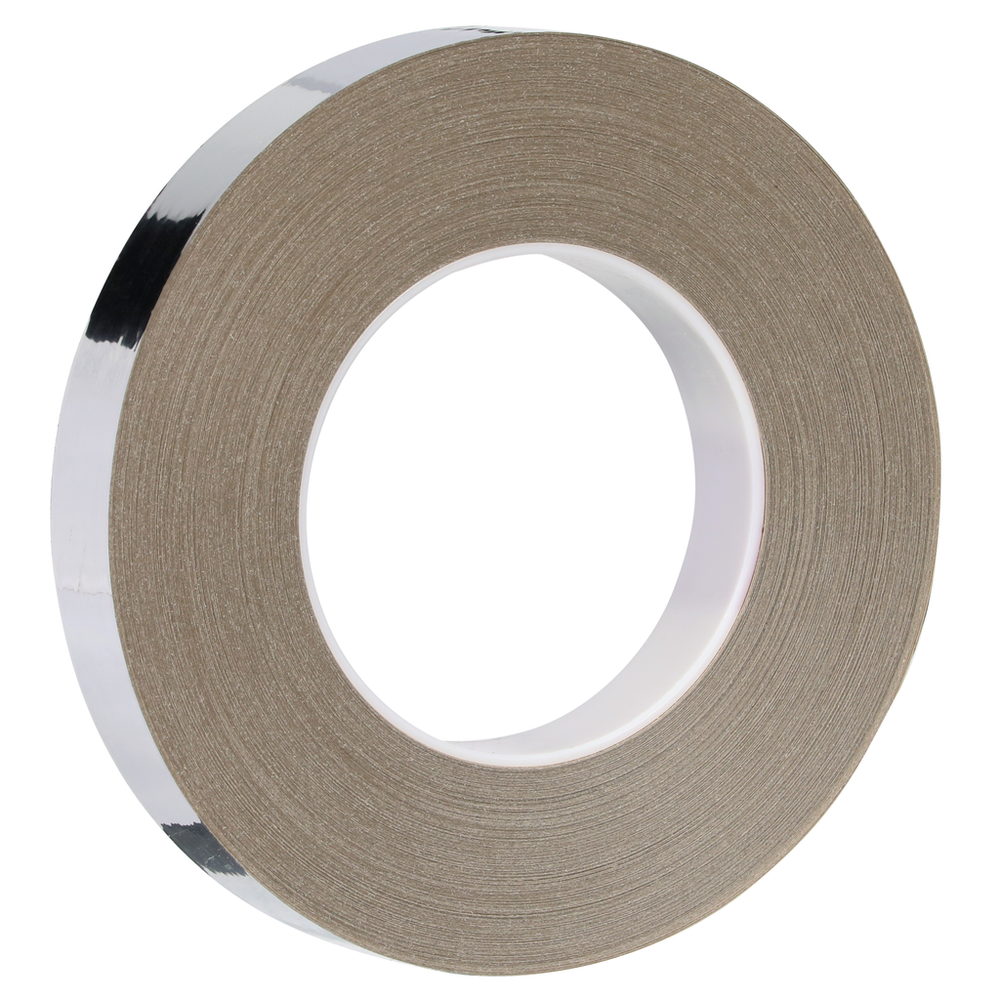

3M™ Metalized Film Tape 8437, Silver, 3/4 in x 72 yd, 2.1 mil, 48 Roll/Case - 7100191222

Sold As: 48-Pack
SKU: 7100191222
MPN: 7100191222
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00638060402184
3M ID: UU010015939
5 Digit UPC: 40218
$6,751.62 ($140.66 / Count)
Hurry up! Current stock:

Product Description

3M™ Metalized Film Tape 8437 is comprised of a relatively thin polyester backing with a metalized coating on both side of the film providing a mirror-like finish with low emissivity and a versatile, long lasting acrylic adhesive. A silicone coated release liner helps with ease of handling and allows for large area applications and die-cutting custom shapes.

Features

  • Thin, high strength polyester film meets low caliper requirements which won't interfere with most machinery processes
  • Abrasion resistance protects surface from abrasion and rough handling
  • Metalized surface provides some of the advantages of a metal tape without the associated weight
  • Pressure sensitive acrylic adhesive for clarity and long-term holding
  • Liner is convenient for die-cutting and applications to large surface areas, or applications where there is a narrow gap
  • Mirror-like finish gives the tape high visibility where it is needed and maintains its bright appearance for up to 3 months
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginMexico
Overall Thickness (Imperial)2.1
Tensile Strength (Metric)35.0
Tensile Strength (Imperial)20.0
IndustriesAppliance, Automotive, General Industrial, Military and Government, Print, Specialty Vehicles, Transportation
Overall Width (Imperial) UOMin
Overall Thickness (Imperial) UOMmil
Tensile Strength (Imperial) UOMlb/in
Backing (Carrier) Thickness (Imperial)0.9
Minimum Operating Temperature (Fahrenheit)40.0
Number of Adhesive SidesSingle-sided
Overall Width (Imperial)0.75
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric)19.05
Minimum Operating Temperature (Fahrenheit) UOMDegree
Product TypeTape
Total Tape Thickness without Liner (Metric)0.05
Product ColorSilver
Maximum Operating Temperature (Fahrenheit)200.0
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)2.1
Overall Length (Metric)65.84
Backing Thickness (Metric) UOMmm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Overall Length (Imperial)72.0
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialAluminized Polyester
Maximum Operating Temperature (Celsius)93.0
Adhesion Strength (Metric) UOMN/100mm
Backing (Carrier) Thickness (Metric)0.02
Elongation at Break70%
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing Thickness (Imperial) UOMmil
Adhesion Strength (Imperial)40.0
Overall Length (Metric) UOMm
Adhesive TypeAcrylic
Product FormRoll
Shelf Life in Months (From Date of Manufacture)12.0
Overall Length (Imperial) UOMyd
Backing Thickness (Imperial)0.9
Backing Thickness (Metric)0.023
Adhesion Strength (Metric)44.0
