3M Products & Supplies

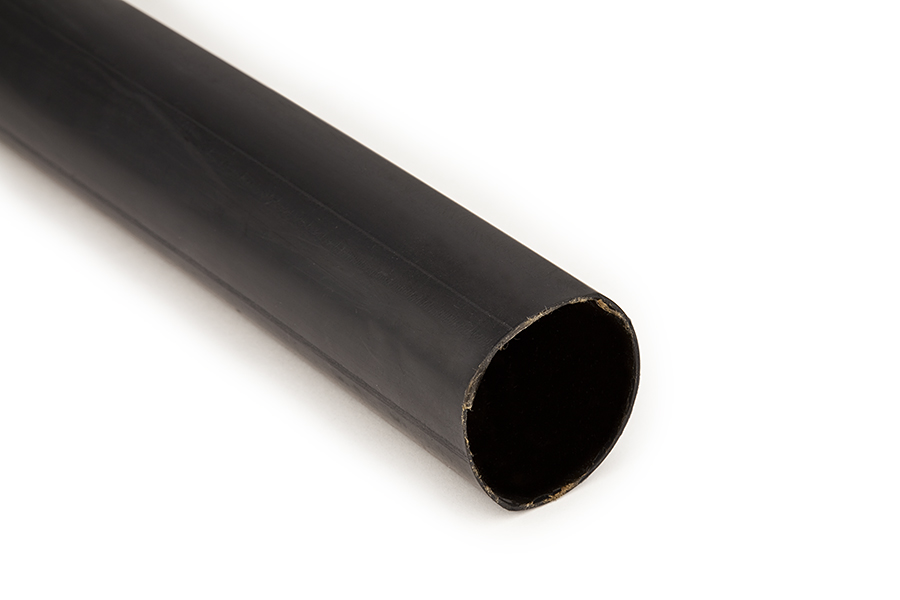

3M™ Multi-wall Polyolefin Adhesive-Lined Heat Shrink Tubing MW 1" Black 6-in piece, 10 Packs/Case - 7010350262

Sold As: 10-Pack
SKU: 7010350262
MPN: 7010350262
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128600955
3M ID: 80611603574
5 Digit UPC: 60095
$614.58 ($61.46 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Provides the advantage of integral, adhesive-lined construction
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Made of black semi-rigid polyolefin
  • Rated for 600V applications
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Minimum Expanded Tubing I. D.1.0
Non-CorrosiveYes
Minimum Expanded Tubing I. D. UOMin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Tubing TypeDual Wall (Adhesive Lined)
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter Before Shrink (Imperial)1.0
Inner Diameter After Shrink (Imperial) UOMin
UL File NumberE-157227
Product ColorBlack
Operating Temperature (Fahrenheit)-67 °F to 230 °F
Overall Length (Imperial)6.0
Inner Diameter After Shrink (Imperial)0.4
Overall Length (Imperial) UOMin
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Shrink Ratio2.5:1
Inner Diameter Before Shrink (Metric) UOMmm
MaterialPolyolefin
Maximum Operating Temperature (Fahrenheit)230.0
Maximum Operating Temperature (Celsius)110.0
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric) UOMmm
Inner Diameter Before Shrink (Metric)25.4
Inner Diameter After Shrink (Metric)10.2
Flame RetardantNo
Maximum Operating Temperature (Fahrenheit) UOMDegree
