3M Products & Supplies

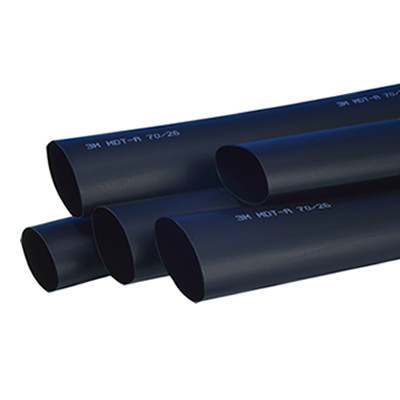

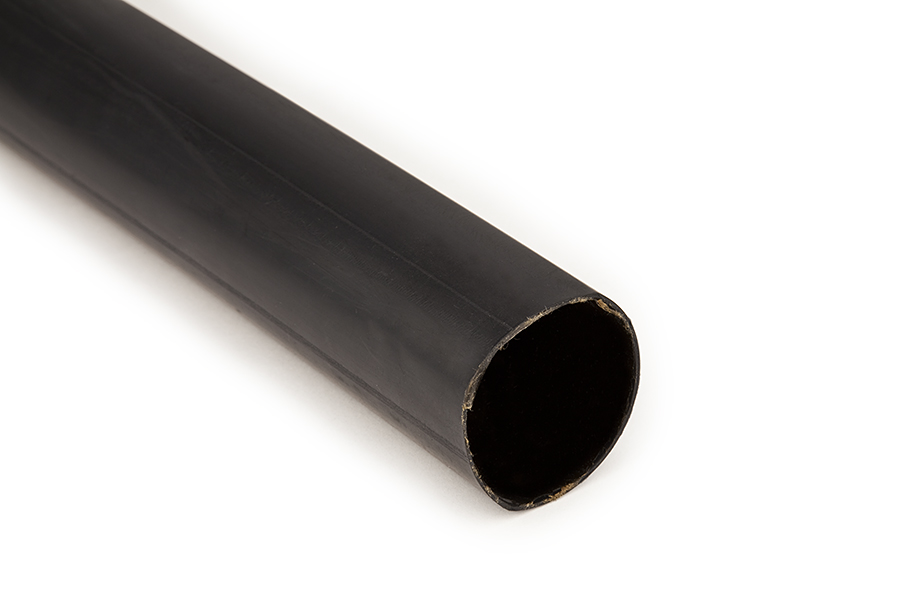

3M™ Multi-wall Polyolefin Adhesive-Lined Heat Shrink Tubing MW 1/4" Black 6-in piece, 100/Case - 7100064257

Sold As: 10-Pack
SKU: 7100064257
MPN: 7100064257
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128600931
3M ID: 80611603558
5 Digit UPC: 60093
$305.25 ($30.52 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
  • Made of black semi-rigid polyolefin
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
  • Rated for 600V applications
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Provides the advantage of integral, adhesive-lined construction
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Inner Diameter Before Shrink (Imperial)0.25
Operating Temperature (Fahrenheit)-67 °F to 230 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter Before Shrink (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter After Shrink (Metric)2.03
Maximum Operating Temperature (Celsius)110.0
Product ColorBlack
Overall Length (Imperial) UOMin
Minimum Expanded Tubing I. D. UOMin
Inner Diameter Before Shrink (Metric)6.4
Flame RetardantNo
Minimum Expanded Tubing I. D.0.25
Tubing TypeDual Wall (Adhesive Lined)
Inner Diameter After Shrink (Imperial)0.08
UL File NumberE-157227
Inner Diameter After Shrink (Metric) UOMmm
Operating Temperature Range (Celsius)-55 °C to 110 °C
Elongation UOM%
MaterialPolyolefin
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Shrink Ratio2.5:1
Non-CorrosiveYes
Maximum Operating Temperature (Fahrenheit)230.0
Operating Temperature (Celsius)-55 °C to 110 °C
Overall Length (Imperial)6.0
Overall Length (Metric)152.0
Maximum Operating Temperature (Celsius) UomDegree
Inner Diameter Before Shrink (Imperial) UOMin
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Overall Length (Metric) UOMmm
