3M Products & Supplies

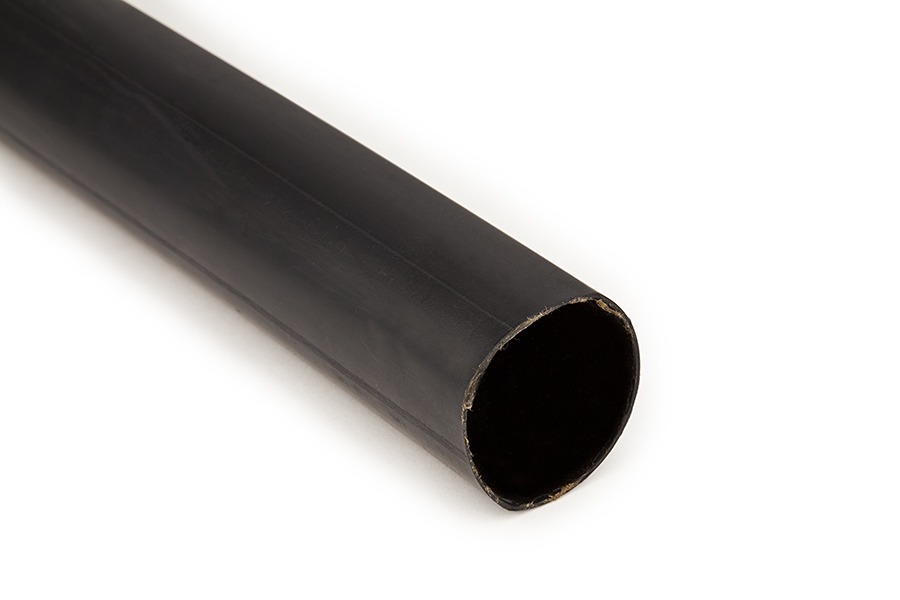

3M™ Multi-wall Polyolefin Adhesive-Lined Heat Shrink Tubing MW 3/16" Black 6-in piece, 10 Packs/Case - 7000148867

Sold As: 10-Pack
SKU: 7000148867
MPN: 7000148867
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128600962
3M ID: 80611603582
5 Digit UPC: 60096
$254.49 ($25.45 / Count)
Hurry up! Current stock:

Product Description

3M™ Heat Shrink Tubing MW is a multiple wall tubing offering the advantage of integral, adhesive lined construction. This tubing has a 2.5:1 shrink ratio and provides insulation for 600V rated applications. Semi rigid polyolefin construction ensures moisture seal protection for automotive and marine applications.

Features

  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Multiple wall is co-extruded and cross-linked to offer a meltable inner wall
  • Provides the advantage of integral, adhesive-lined construction
  • Made of black semi-rigid polyolefin
  • Rated for 600V applications
  • Offers a skintight fit and strain-relief sealing of electrical connections, wire splices and components
Spec Sheet



Downloads

Specifications

Shelf Life3600
Country of OriginUnited States
Maximum Operating Temperature (Celsius) UomDegree
Product ColorBlack
Maximum Operating Temperature (Fahrenheit) UOMDegree
MaterialPolyolefin
Inner Diameter Before Shrink (Metric)4.8
Operating Temperature Range (Fahrenheit)-67 °F to 230 °F
Operating Temperature (Fahrenheit)-67 °F to 230 °F
RoHS EU CommentsRoHS 2011/65/EU compliant without exemption
Inner Diameter After Shrink (Metric)1.5
Operating Temperature (Celsius)-55 °C to 110 °C
Inner Diameter After Shrink (Metric) UOMmm
Flame RetardantNo
Overall Length (Metric)152.0
Shrink Ratio2.5:1
Elongation UOM%
Inner Diameter After Shrink (Imperial)0.06
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)110.0
Minimum Expanded Tubing I. D. UOMin
Tubing TypeDual Wall (Adhesive Lined)
Heat Shrink TypeAdhesive-Lined Polyolefin Heat Shrink Tubing
Operating Temperature Range (Celsius)-55 °C to 110 °C
Maximum Operating Temperature (Fahrenheit)230.0
Overall Length (Imperial)6.0
Minimum Expanded Tubing I. D.0.187
Inner Diameter Before Shrink (Metric) UOMmm
Overall Length (Imperial) UOMin
Non-CorrosiveYes
Inner Diameter After Shrink (Imperial) UOMin
Inner Diameter Before Shrink (Imperial) UOMin
UL File NumberE-157227
Inner Diameter Before Shrink (Imperial)0.187
